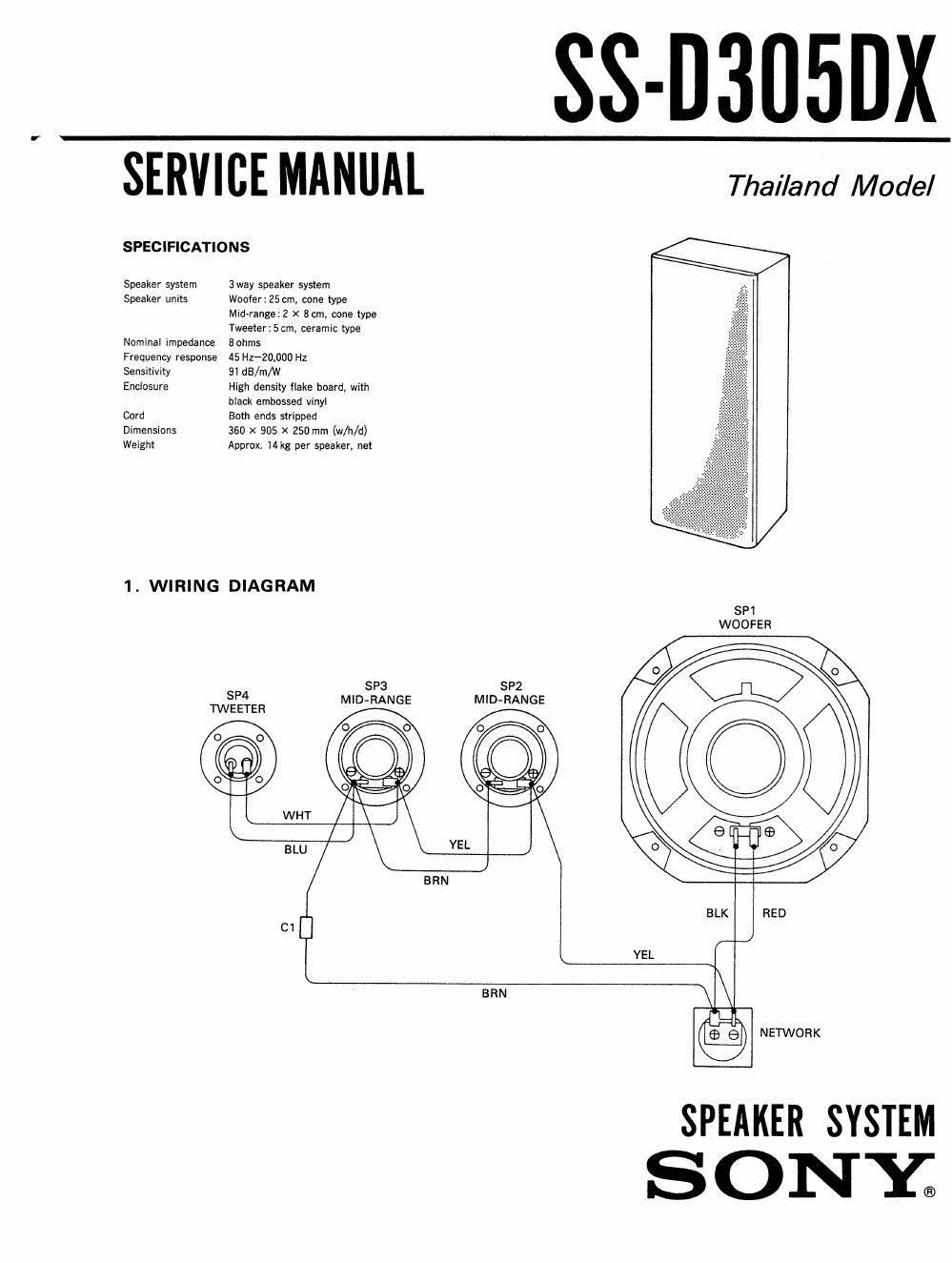

Sony ss d 305 dx service manual
This is the 2 pages manual for sony ss d 305 dx service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss d 305 dx service manual (Ocr-read)
Page 2
SS-D305DX
2. EXPLODED VIEW AND PARTS LIST
NOTE:
' The mechanical parts wlth no reference
number in the exploded views are not
supplied.
Color lndicalion of Appearance Parts
Items marked " * " are not stocked
since they are seldom required for '
routine service. Some delay should be
anticipated when ordering these items.
Example:
KNOB, BALANCE(WHITEL,(RED}
I I
Parts color Cabinels color
Refillo Part No. Description Remark Rel.No. Part No. Description Remark
I X-AOAI-TGI-I FRAME ASSV. GRILLE ACCESSORY & PACKING MATERIAL
2 7-685-16l-OI SCREW +P 4X12 TVPE4 HrnHmmmmmtmrr
3 7-62I-846-40 SCREW +P 4X16 TVPEA
4 4-945-275-01 FRAME (M), ORNAMENTAL I-690-185-IZ CORD. SPEAKER CONNECTION
5 4-945-274-01 FRAME (T), ORNAMENTAL 3-753-999-11 MANUAL, INSTRUCTION
t 4-944-829-01 CUSHION
6 X-AOAI-TSO-I CABINET ASSY, SPEAKER t 4-944-832-01 INDIVIDUAL CARTON
T 4-945-277-01 EMBLEM. BAFELE BOARD
8 1-690-186-11 CORD. CONNECTION (Cl (NETWORK)
SP1 1-544-3-49-21 SPEAKER (25CM)
SP2 1-544-552-11 SPEAKER (80M)
SP3 FEM-55241 SPEAKER (80M)
SP4 I-544»551-II SPEAKER (50M)
CI 1-123-646-00 ELECT (Min? 501)
. English
Sony Corporation 91.118054
Audio Group Printed in Japan
9956-766-11 ©1991.1O
_.2_
Published by Customer Relations and Service Group
