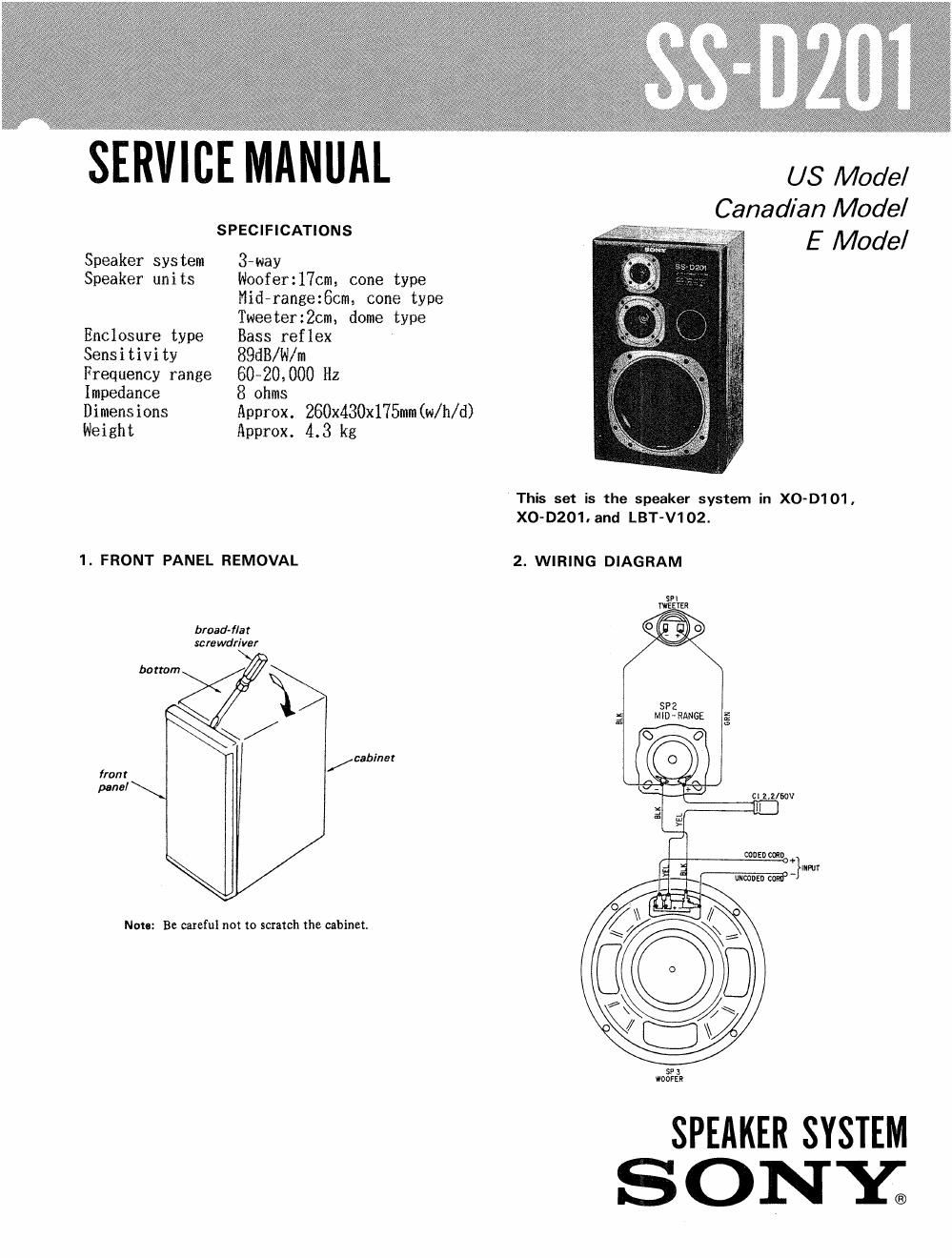

Page 1

SEAVHA

SPECIFICATIONS

Speaker system
Speaker units

MANUAL

U8 Model
Canadian Model

E Model
3-way

Woofertl7cm, cone type
Mid-rangetﬁcm, cone type
Tweeter:20m, dome type

Enclosure type Bass reflex

Sensitivity 89dB/W/m

Frequency range 60-20,000 Hz

Impedance 8 ohms

Dimensions Approx. 260x430x175mm(w/h/d)
Weight Approx. 4.3 kg

1. FRONT PANEL REMOVAL

broad-Ila!
scre wdriver

batmmz/ \/
\/

cabins t
/

Iran r
panel

Note: Be careful not (0 sctaxch the cabinet

This set is the speaker system in XO-D101.
XO-D201. and LBT-V102.

2. WIRING DIAGRAM

SPEAKER SYSTEM
SONY;
