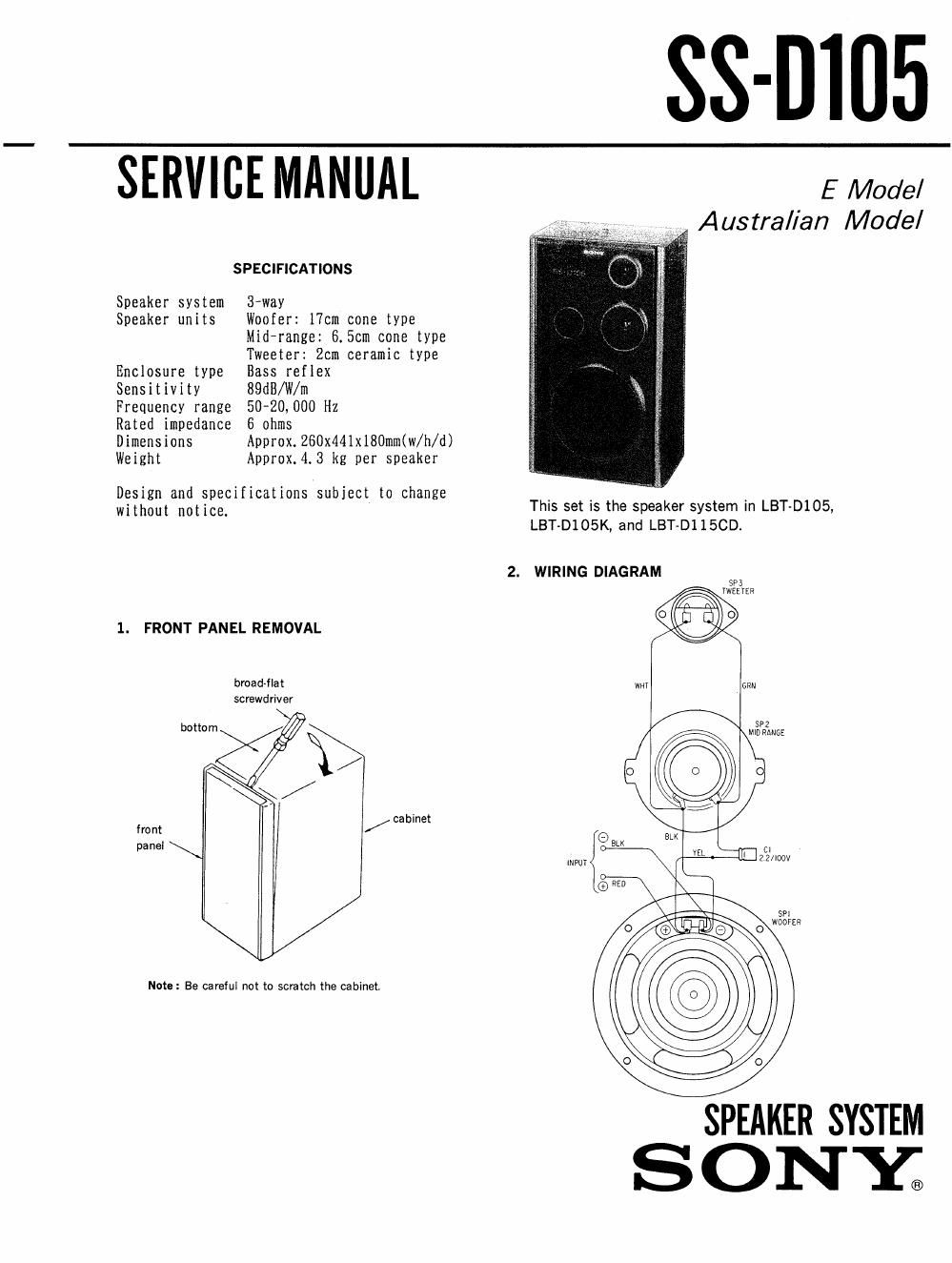

SS-DIII5

SERVICE MANUAL E Model

Aus tra/I'an Model

SPECIFICATIONS

Speaker system 3-way

Speaker units Woofer: 17cm cone type
Mid-range: 6. 5cm cone type
Tweeter: 2cm ceramic type

Enclosure type Bass reflex

Sensitivity 89dB/W/m

Frequency range 50-20, 000 Hz

Rated impedance 6 ohms

Dimensions Approx260x441x180mm(w/h/d)

Weight Approx. 4.3 kg per speaker

Design and specifications subject to change , I ,
wi thout not ice. ThIS set IS the speaker system In LBT-D105,

LBT-D105K, and LBT-DllSCD.

2. WIRING DIAGRAM

SP3
n TWEETER
fl;

1. FRONT PANEL REMOVAL

broadflat
screwdriver

bottom
X \/

}/

I t / cabinet
ron
panel

Note: Be careful not to scratch the cabinet.

SPEAKER SYSTEM
S 0 NE)

Page 2

SS-D105

3. EXPLODED VIEW AND PARTS LIST
NOTE:

0 The mechanical parts with no reference -
number in the exploded views are not
supplied.

0 Items marked "ll: " are not stocked since a

they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

lllust: RCH

-XX, -X mean standardized parts, so
they may have some differences from
the original one.

Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)...(RED)

T
Cabinet's Color

T
Parts Color

ReftNo Part No. Description Remark Ref.No Part No. Degcription Remark
1 49414524 PANEL (U ASSV. FRONT SP1 1-544-451-1l SPEAKER (TGCM)
2 X-494l-253-I PANEL (R) ASSV. FRONT SP2 1-544-452-11 SPEAKER (6cm
3 X-4941-381I CABINET (L) ASSV. SPEAKER SP3 1-544-453-11 SPEAKER (20M)
4 X-4941-382-1 CABINET (R) ASSV. SPEAKER
5 4-874-614-61 SCREW (M3. 5X16)
6 1-575-696-11 CORD. SPEAKER (WITH (0))
ACCESSDRV & PACKING MATERIAL
* 4-944~584-01 CUSHION
English
. 91co414»1
sonY Corporation Primed in Japan
9-956-305-11 Audio Group ©1991.3
