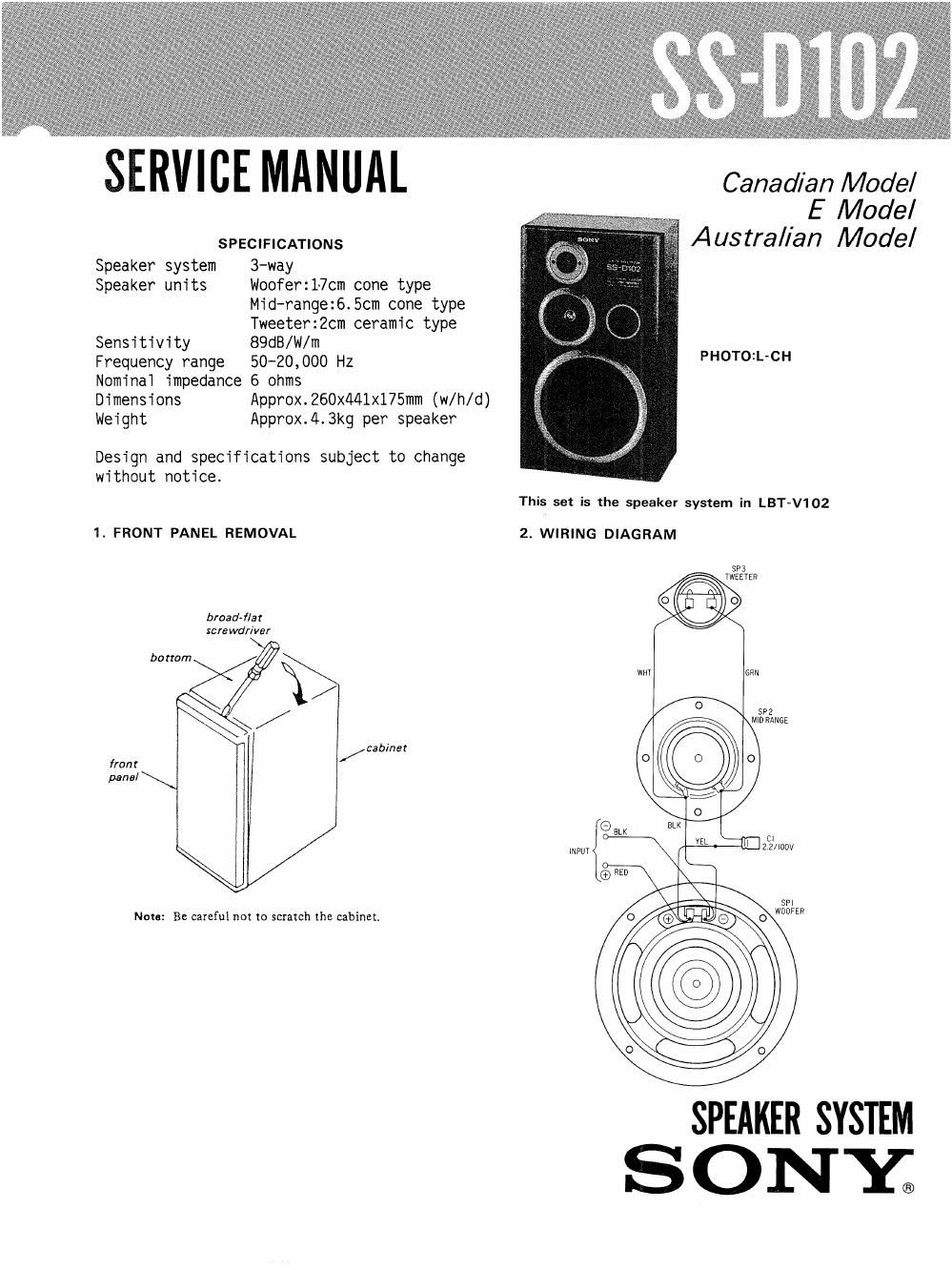

Page 2
SS-D102
3. EXPLODED VIEW AND PARTS LIST
NOTE:
0 The mechanical parts with no reference
number in the exploded views are not
supplied
illusth>CH
No. Part No.
l X-4926-409-l
2 X-4926-410-1
3 *X-4926-411-1
4 *X-4926-412-l
5 4-936-543-02
9-955-879-11
service.
0 Items marked it" are not stocked since
they are seldom required for routine
Some delay should be antici
pated when ordering these items.
Descrigtion
PANEL (L) ASSY, FRONT
PANEL (R) ASSY, FRONT
CABINET (L) ASSY, SPEAKER
CABINET (R) ASSY, SPEAKER
SCREW (M3.5X16)
Sony Corporafion
ELECTRICAL PARTS
Ref.No. Part No. Description
901 1-575-696-11 CORD, SPEAKER(WITH C )
SP1 1-544-269-11 WOOFER
SP2 1-544-205-21 MID-RANGE
SP3 1-544-135-21 TWEETER
Audio Group
_2_
ACCESSORY & PACKING MATERIAL
*4-936-544-01 CUSHION
English
90EO420>1
Printed in Japan
© 1990. 5
Published by Customer Relations and Service Group
