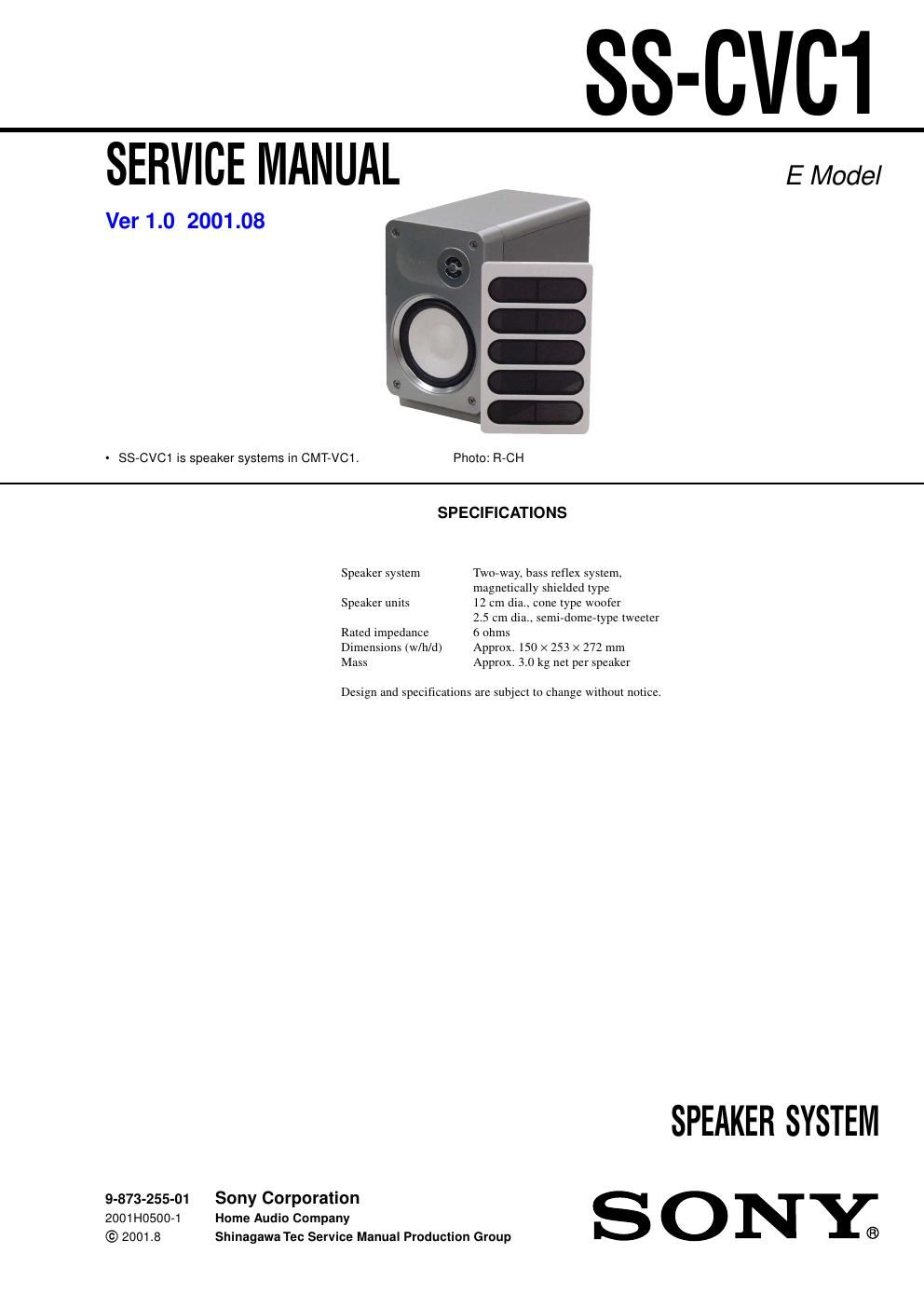

Sony ss cvc 1 service manual

Page 1

2 SS-CVC1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-4954-044-1 NET ASSY, SPEAKER (SILVER) 1 X-4954-079-1 NET ASSY, SPEAKER (BLACK) 1 X-4954-080-1 NET ASSY, SPEAKER (RED) 2 X-4954-050-1 BOX ASSY, SPK (SILVER) 2 A-4735-672-A BOX ASSY, SPK (BLACK) 2 A-4735-667-A BOX ASSY, SPK (RED) 3 4-218-202-01 CATCHER, NET 4 FRONT PANEL ASSY, SPK (SILVER) (L)4 FRONT PANEL ASSY, SPK (SILVER) (R) 4 A-4735-673-A FRONT PANEL ASSY, SPK (BLACK) (L) 4 A-4735-675-A FRONT PANEL ASSY, SPK (BLACK) (R) 4 A-4735-668-A FRONT PANEL ASSY, SPK (RED) (L) 4 A-4735-670-A FRONT PANEL ASSY, SPK (RED) (R) 5 4-874-614-11 SCREW (4) (3.5X14), TAPPING SP1 1-544-823-21 SPEAKER (12cm) EXPLODED VIEW AND PARTS LIST - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color 1 SP1 3 2 3 5 4 L-CH
