Sony ss ct 71 service manual

This is the 4 pages manual for sony ss ct 71 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
sony ss ct 71 service manual

Extracted text from sony ss ct 71 service manual (Ocr-read)


Page 1

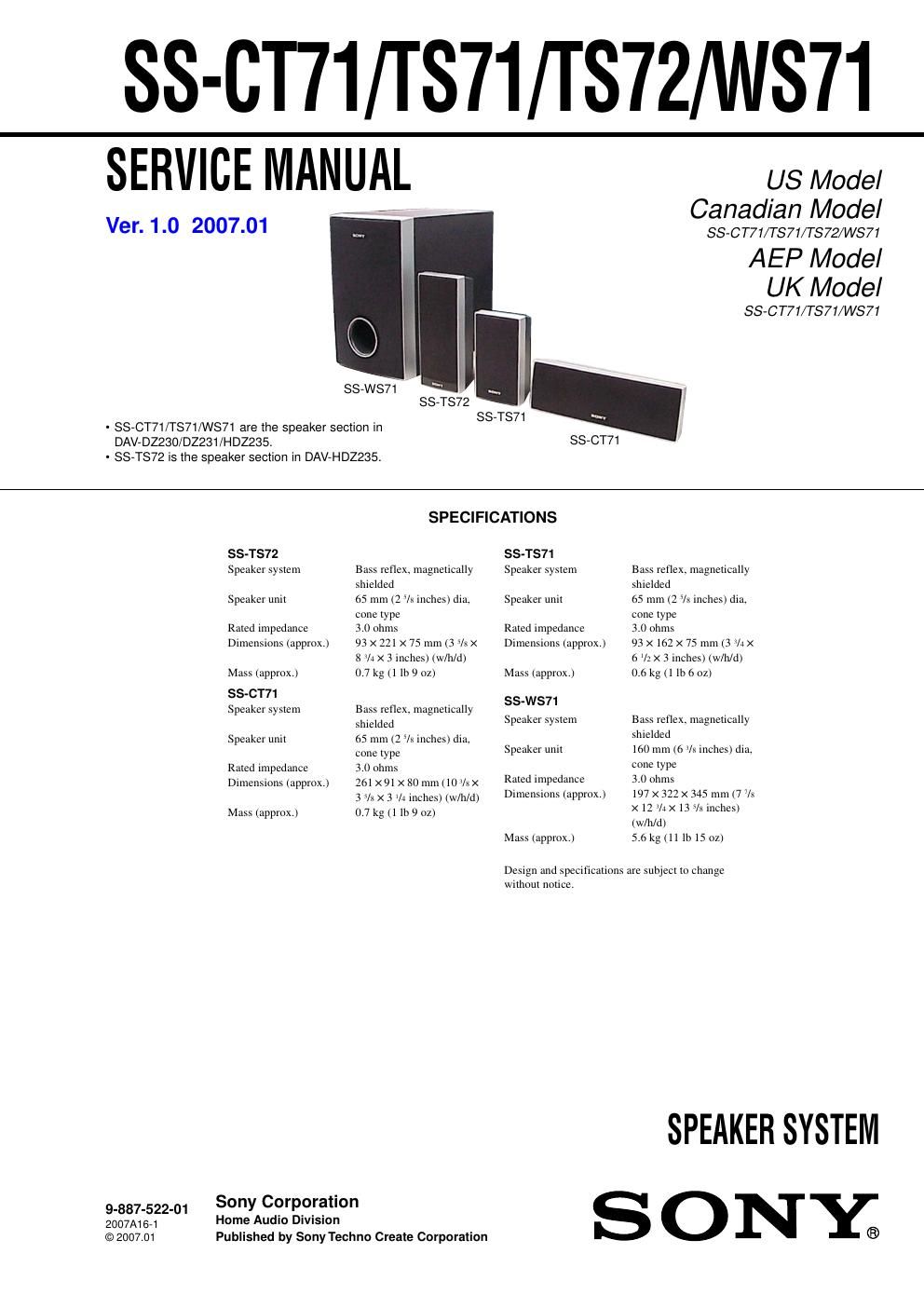

2 SS-CT71/TS71/TS72/WS71EXPLODED VIEWS NOTE: -The mechanical parts with no reference number in the exploded views are not supplied. - XX and -X mean standardized parts, so they may have some difference from the original one. -A bbreviation CND : Canadian model SS-CT71/TS71/TS72 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 A-1218-472-A SS-CT71 (CE7) (AEP, UK) 1 A-1218-473-A SS-CT71 (EA) (US, CND) 2 A-1218-412-A SS-TS71 FL (CE7) (AEP, UK) 2 A-1218-413-A SS-TS71 FR (CE7) (AEP, UK) 2 A-1218-414-A SS-TS71 SL (CE7) (AEP, UK) 2 A-1218-415-A SS-TS71 SR (CE7) (AEP, UK) 2 A-1218-418-A SS-TS71 SL (EA) (US, CND) 2 A-1218-419-A SS-TS71 SR (EA) (US, CND) 3 A-1221-365-A SS-TS72 FL (EA) (US, CND) 3 A-1221-366-A SS-TS72 FR (EA) (US, CND) 1 2 3

Page 2

3 SS-CT71/TS71/TS72/WS71 SS-WS71 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 A-1218-491-A OVERALL ASSY (SS-WS71) 52 X-2159-721-1 GRILLE FRAME ASSY not supplied not supplied not supplied 52 53 SP1 51 53 2-893-658-01 FRONT PANEL (S) SP1 1-826-552-11 LOUDSPEAKER (16CM)
