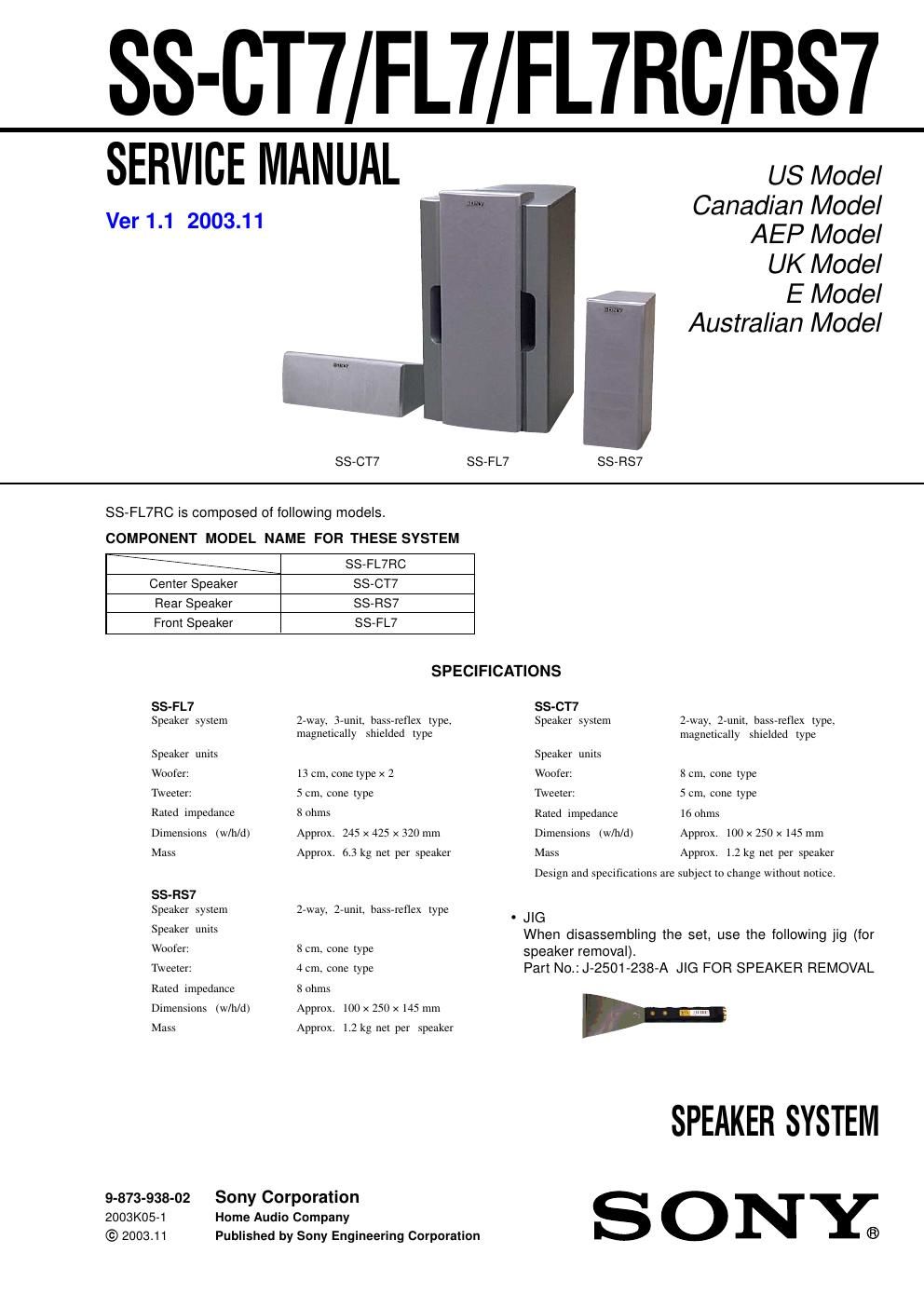

Sony ss ct 7 service manual
This is the 8 pages manual for sony ss ct 7 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss ct 7 service manual (Ocr-read)
Page 1
2 SS-CT7/FL7/FL7RC/RS7 SECTION 1 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. DISASSEMBLY OF SS-FL7 Note 1: Remove the front panel assy by paying attention particulaly to the periphyery of eight bosses where the front panel assy bonded tightly. Note 2: Take care not to damage the set by applying an excessive force.boss boss bos s boss 1 Insert a flat-tip screwdriver into a recess in the bottom of the set to raise the front panel assy a little. 2 Insert the jig (J-2051-238-A) into a space made by inserting the screwdriver, and raise the front panel assy gradually. 1 Insert a flat-tip screwdriver into a recess in the bottom of the set to raise the front panel assy a little. 2 Insert the jig (J-2051-238-A) into a space made by inserting the screwdriver, and raise the front panel assy gradually. Ver 1.1
Page 2
3 SS-CT7/FL7/FL7RC/RS7 5 Raise the front panel assy a little by little from bottom to top of the set. 6 front panel assy Ver 1.1
