Sony ss ct 46 service manual
This is the 6 pages manual for sony ss ct 46 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss ct 46 service manual (Ocr-read)
Page 1

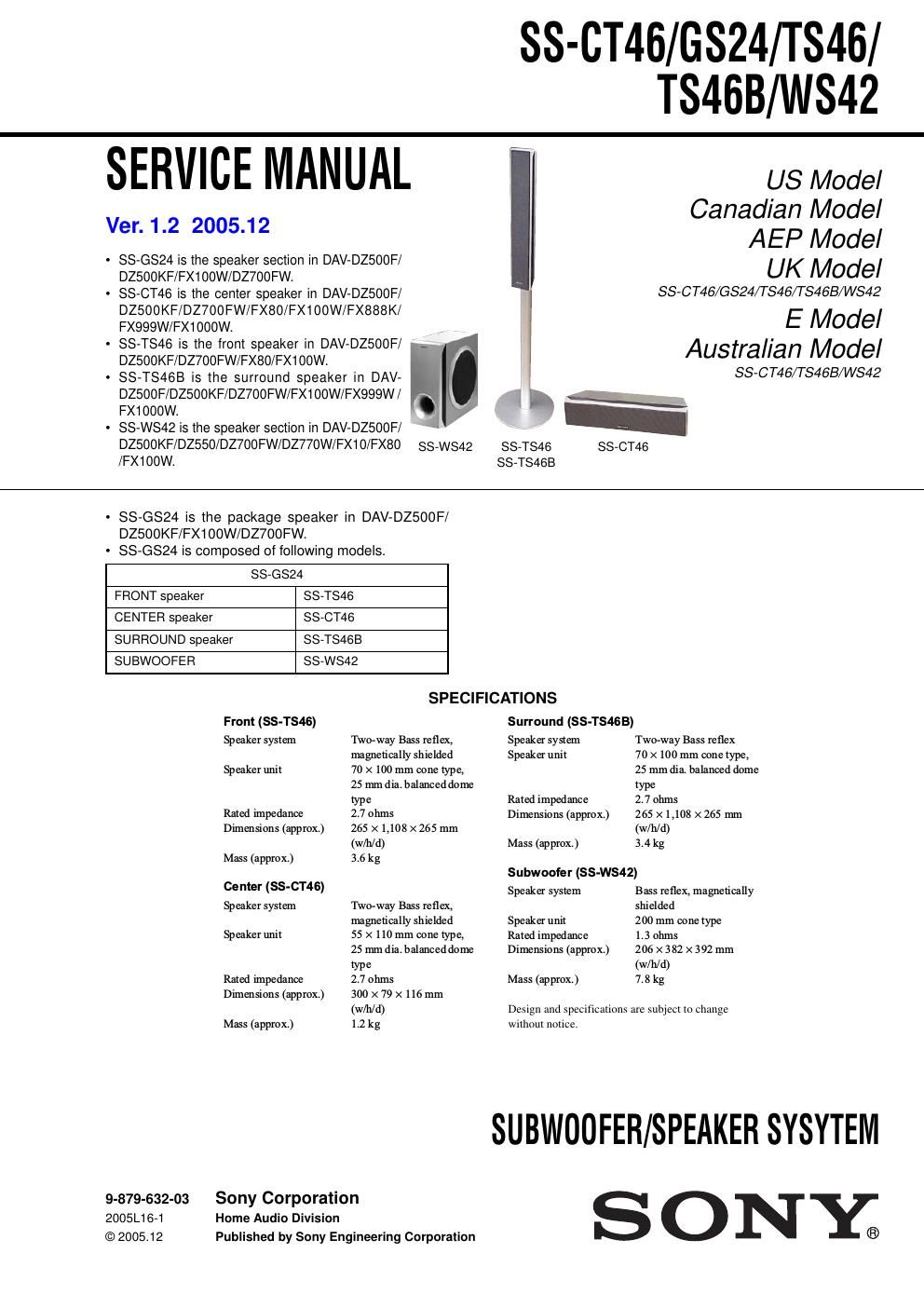

SS-CT46/GS24/TS46/TS46B/WS42 2 1X-2055-023-1 ASSY, GRILLE FRAME (PUNCHING) 24-874-614-81 +BVTP 3.5X16 TYPE2 32-048-751-01 SCREW +BVTP 3.5X14 TYPE2 44-255-545-01 FOOT Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 5A-1111-564-A OVERALL ASSY 61-694-836-11 TERMINAL, SPEAKER SP1 X-2055-382-1 SPEAKER ASSY SS-CT46 NOTE: -The mechanical parts with no reference number in the exploded views are not supplied. --XX, -X mean standardized parts, so they may have some differences from the original one. 122 23 4 6 not suppliednot supplied not supplied SP1 not supplied 5 EXPLODED VIEWS
Page 2
3 SS-CT46/GS24/TS46/TS46B/WS42 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 not supplied not supplied SP2 52 52 55 57 57 57 56 54 61 58 54 a a 52 52 52 53 not supplied 57 not supplied 59 60 not supplied SS-TS46/TS46B 51 X-2055-373-1 FRAME ASSY, GRILLE (P)(TS46B) 52 2-048-751-01 SCREW +BVTP 3.5X14 TYPE2 53 A-1111-452-A CABINET ASSY, SPK (P)(TS46) 53 A-1111-472-A CABINET ASSY, SPK (P)(TS46B) 54 7-682-565-04 SCREW +B 4X16 55 2-591-307-01 COVER, BASE 57 4-251-067-01 PACKING (AL FRONT) 58 1-694-836-11 TERMINAL, SPEAKER 59 X-2055-645-1 POLE (L) SUB ASSY, STAND 60 X-2055-646-1 POLE (S) SUB ASSY, STAND 61 2-593-972-01 COVER, TERMINAL SP2 X-2055-382-1 SPEAKER ASSY (TS46B) Ver. 1.2
