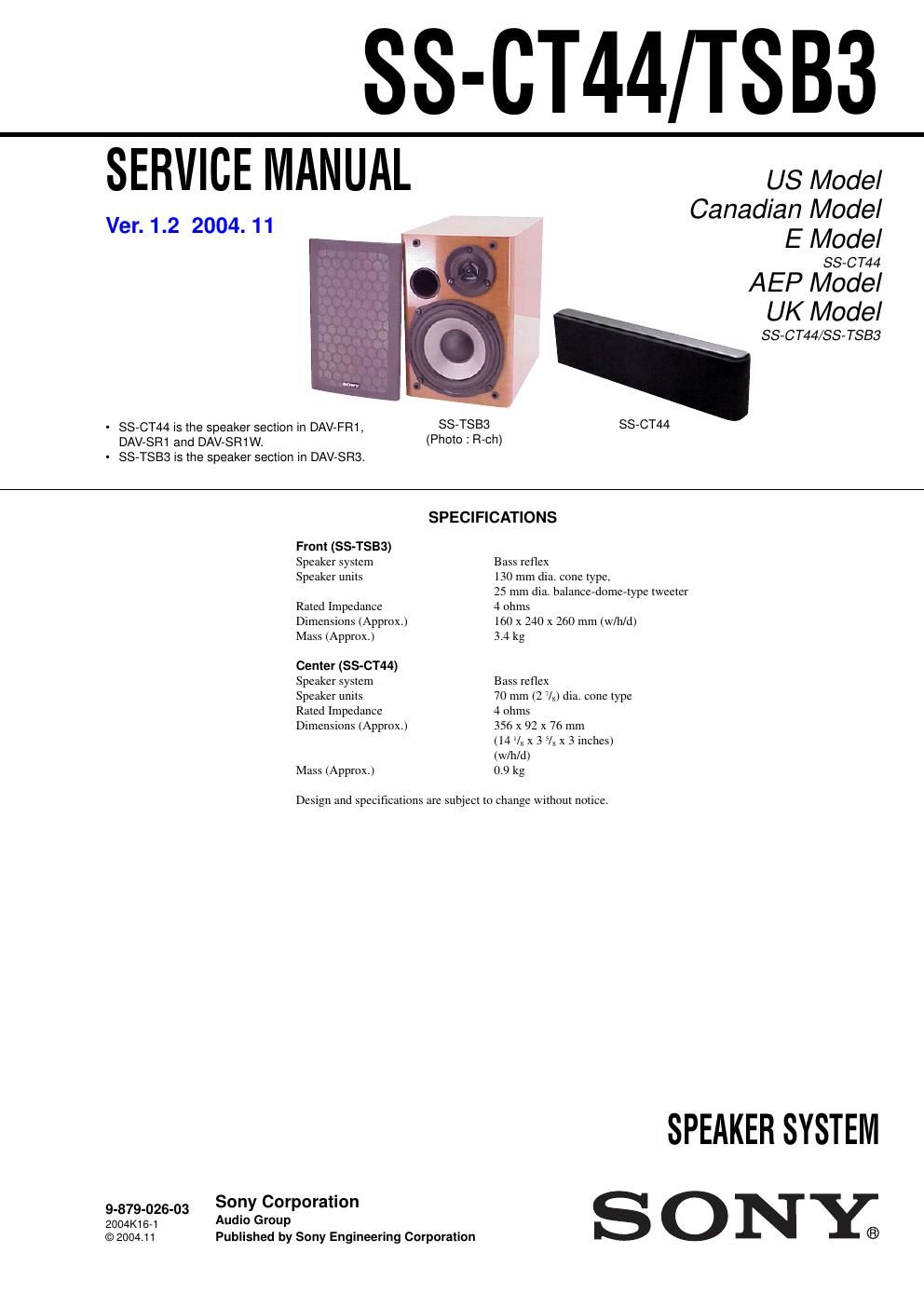

Sony ss ct 44 service manual
This is the 4 pages manual for sony ss ct 44 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss ct 44 service manual (Ocr-read)
Page 1
2 SS-CT44/TSB3 EXPLODED VIEWS NOTE: -The mechanical parts with no reference number in the exploded views are not supplied.-XX and -X mean standardized parts, so they may have some difference from the original one. SS-CT44 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 12-048-751-01 SCREW +BVTP 3.5X14 TYPE2 24-255-212-01 FRAME, GRILLE 34-874-614-82 SCREW 44-255-211-01 PLATE, ORNAMENTAL 51-694-836-11 TERMINAL, SPEAKER64-255-886-01 FOOT 7A-4715-783-A CABINET ASSY (US, CND, E) 8A-1077-551-A CABINET ASSY (AEP, UK) SP1 1-825-871-11 SPEAKER (7cm) not suppliednot suppliednot suppliednot supplied not supplied not supplied not supplied 23 3 3 3 45 6 7 8 1 1 not supplied SP1 Ver. 1.2
Page 2
3 SS-CT44/TSB3 SS-TSB3 Ref. No. Part No. Description Remark 51 X-2022-180-1 GRILLE FRAME ASSY 52 4-932-425-01 SCREW (3.5X20) 53 X-2022-178-1 SPEAKER CABINET (L) ASSY 53 X-2022-179-1 SPEAKER CABINET (R) ASSY R-ch Ver 1.1 515253 52 SP2SP3 SP2 1-825-892-11 SPEAKER (13cm) SP3 X-2021-560-1 SPEAKER (2.5cm) ASSY Ref. No. Part No. Description Remark
