Sony ss ct 381 service manual
This is the 4 pages manual for sony ss ct 381 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

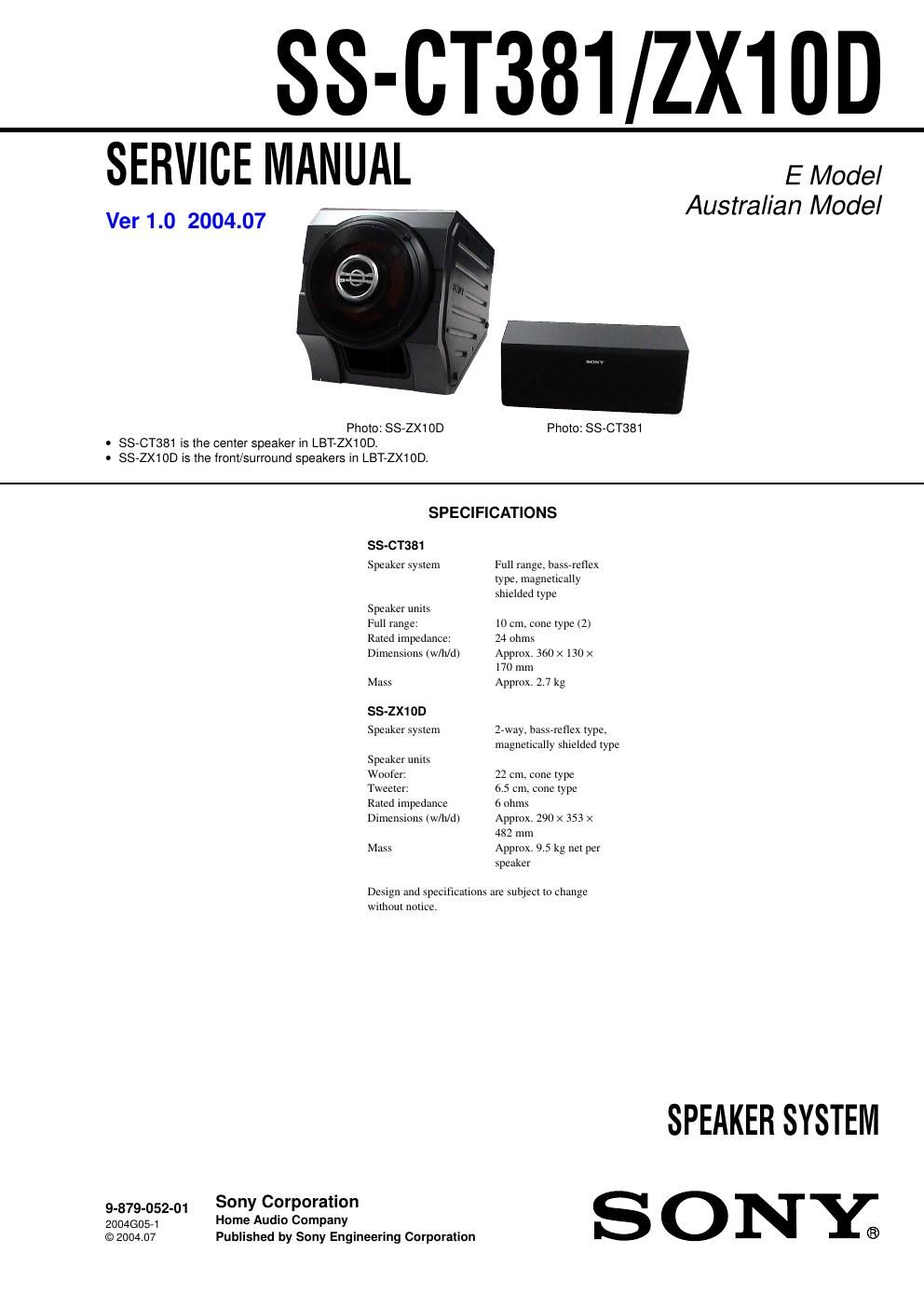

Extracted text from sony ss ct 381 service manual (Ocr-read)
Page 1
SS-CT381/ZX10D 2 -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. -The mechanical parts with no reference number in the exploded views are not supplied. NOTE: --XX and -X mean standardized parts, so they may have some difference from the original one. -Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color EXPLODED VIEW (1) SS-CT381 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1A-1059-318-A GRILLE FRAME ASSY 24-874-614-11 SCREW (1) (3.5X14), TAPPINGSP1 1-529-658-11 SPEAKER (10cm) SP2 1-529-658-11 SPEAKER (10cm) 12 2 SP1not supplied SP2
Page 2
SS-CT381/ZX10D 3 (2) SS-ZX10D Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 A-4713-568-A FRONT PANEL ASSY 52 4-874-614-02 SCREW (1) (3.5X14), TAPPING 53 4-252-405-01 WOOFER STAND 54 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP 55 4-252-411-01 SIDE PANEL L 56 4-252-408-01 SIDE PANEL R57 4-252-410-01 FOOT 58 4-986-971-01 SCREW (3.5) 59 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 SP3 1-825-883-11 LOUDSPEAKER (20cm) SP4 1-825-739-11 LOUDSPEAKER (6.5cm) not supplied not supplied not supplied not supplied 51 52 5253 54 545454 54 54 54 54 575454 57 55 56 57 57 58 59 SP3 SP4
