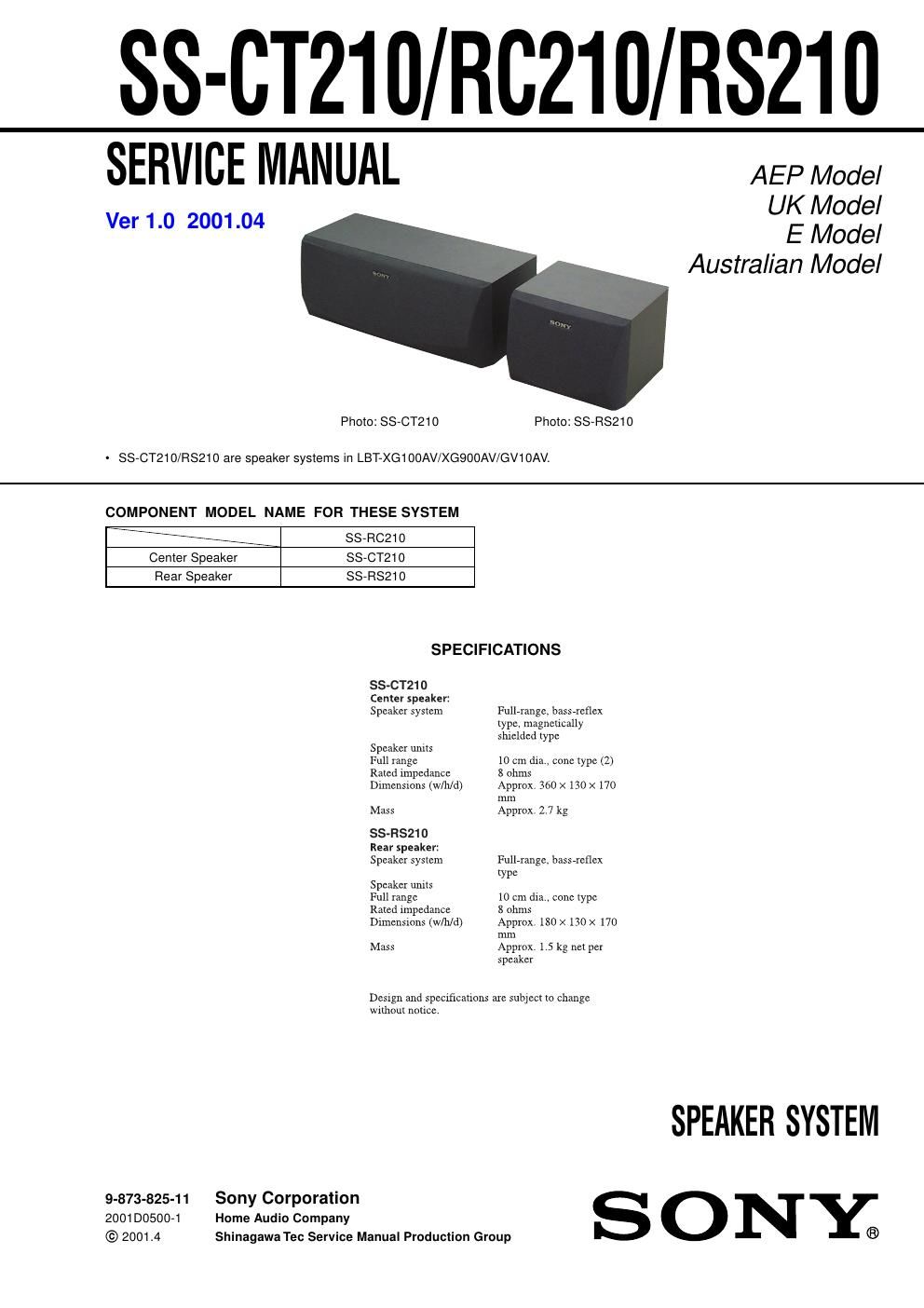

Sony ss ct 210 service manual
This is the 6 pages manual for sony ss ct 210 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss ct 210 service manual (Ocr-read)
Page 1
2 SS-CT210/RC210/RS210 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 4-874-614-11 SCREW +BVTP 3.5X14 2 X-4952-768-1 FRAME ASSY, GRILLE 3 A-4412-823-A CABINET ASSY, SPEAKER (E/AUS) 3 A-4412-824-A CABINET ASSY, SPEAKER (AEP/UK)4 1-537-332-11 TERMINAL BOARD 5 1-792-488-11 CORD, CONNECTION SP1 1-529-658-11 SPEAKER (10cm) SP2 1-529-658-11 SPEAKER (10cm) EXPLODED VIEWS AND PARTS LIST - Abbreviation AUS : Australian model (1) CENTER SPEAKER SECTION (SS-CT210) 1 SP1 1 SP2 2 3 5 4 - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color
Page 2
3 SS-CT210/RC210/RS210 (2) REAR SPEAKER SECTION (SS-RS210) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-874-614-11 SCREW +BVTP 3.5X14 52 X-4952-769-1 FRAME ASSY, GRILLE 53 A-4412-821-A CABINET ASSY, SPEAKER (E/AUS) 53 A-4412-822-A CABINET ASSY, SPEAKER (AEP/UK)54 4-983-074-01 BRACKET, HOOK 55 7-685-648-79 SCREW +BV 3X12 TYPE2 IT-3 56 1-537-332-11 TERMINAL BOARD SP3 1-529-346-11 SPEAKER (10cm) 51 SP3not supplied 52 53 54 55 56
