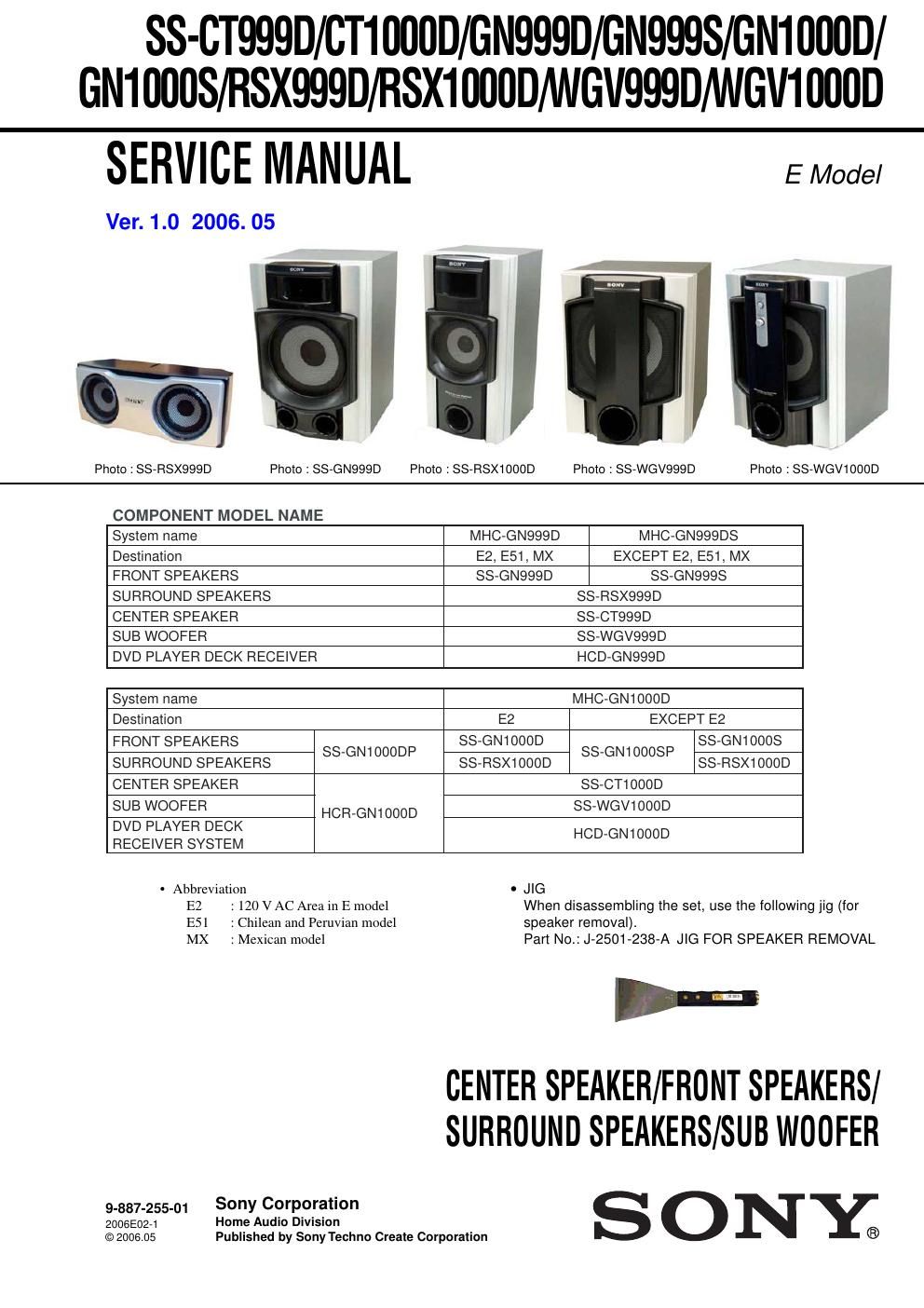

Page 1
2 SS-CT999D/CT1000D/GN999D/GN999S/GN1000D/GN1000S/RSX999D/RSX1000D/WGV999D\ /WGV1000D SPECIFICATIONS For MHC-GN999D/MHC-GN999DS - Front speaker (SS-GN999D/SS-GN999S) Speaker system 2-way, 2-unit, bass-reflex type,magnetically shielded Speaker units W oofer: 20 cm, cone type T weeter: 2.5 cm, horn type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 281 x 417 x 310.5 mm Mass Approx. 7.2 kg net per speaker - Surround speaker (SS-RSX999D) Speaker system Full range, 2-unit, bass-reflex type Speaker units Full range: 8 cm, cone type x 2 Nominal impedance 16 ohms Dimensions (w/h/d) Approx. 268 x 107 x 117 mm Mass Approx. 1.4 kg net per speaker - Center speaker (SS-CT999D) Speaker system Full range, 2-unit, bass-reflex type, magnetically shielded Speaker units Full range: 8 cm, cone type x 2 Nominal impedance 16 ohms Dimensions (w/h/d) Approx. 268 x 107 x 117 mm Mass Approx. 1.6 kg - Sub woofer (SS-WGV999D) Speaker system 1-way, 1-unit, bass-reflex type, magnetically shielded Speaker units W oofer: 20 cm, cone type Nominal Impedance 6 ohms Dimensions (w/h/d) Approx. 262 x 327 x 370 mm Mass Approx. 6.6 kg For MHC-GN1000D - Front speaker (SS-GN1000D (Latin American models only)/ SS-GN1000S (Other models)) Speaker system 2-way, 2-unit, bass-reflex type, magnetically shielded Speaker units W oofer: 20 cm, cone type T weeter: 2.5 cm, horn type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 281 x 417 x 310.5 mm Mass Approx. 7.2 kg net per speaker - Surround speaker (SS-RSX1000D) Speaker system 2-way, 2-units, bass-reflex type Speaker units W oofer: 10 cm, cone type T weeter: 5 cm, horn type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 176 x 362 x 215 mm Mass Approx. 2.9 kg net per speaker - Center Speaker (SS-CT1000D) Speaker system Full range, 2-unit, bass-reflex type, magnetically shielded Speaker units Full range: 8 cm, cone type x 2 Nominal Impedance 6 ohms Dimensions (w/h/d) Approx. 268 x 107 x 117 mm Mass Approx. 1.6 kg - Subwoofer (SS-WGV1000D) Subwoofer system 1-way, 1-unit, bass-reflex type, magnetically shielded Speaker units Subwoofer: 20 cm, cone type Nominal impedance 8 ohms Dimensions (w/h/d) Approx. 281 × 362 × 338.5 mm Mass Approx. 6.8 kg Design and specifications are subject to change without notice.
Page 2
3 SS-CT999D/CT1000D/GN999D/GN999S/GN1000D/GN1000S/RSX999D/RSX1000D/WGV999D/WGV1000D Q1400 R1405 R1406 JR1400 D1400 S1400 C1400 CN1400 HCD-GN1000D 14 E SUBWOOFER ON/OFF SUBWOOFER LEVEL BOARD SWPANEL 11 (11) 1-868-600- JR1402 C1401 R1401 R1402 R1403 R1404 SW1400 2 3 A1 B C D 1-1. PRINTED WIRING BOARD (SS-WGV1000D) SECTION 1 DIAGRAMS Note on Printed Wiring Boards: -X: parts extracted from the component side. - : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) -Indication of transistor. B These are omitted. CE Q Unleaded solder Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. : Uses unleaded solder.
