Sony ss ct 100 service manual
This is the 4 pages manual for sony ss ct 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss ct 100 service manual (Ocr-read)

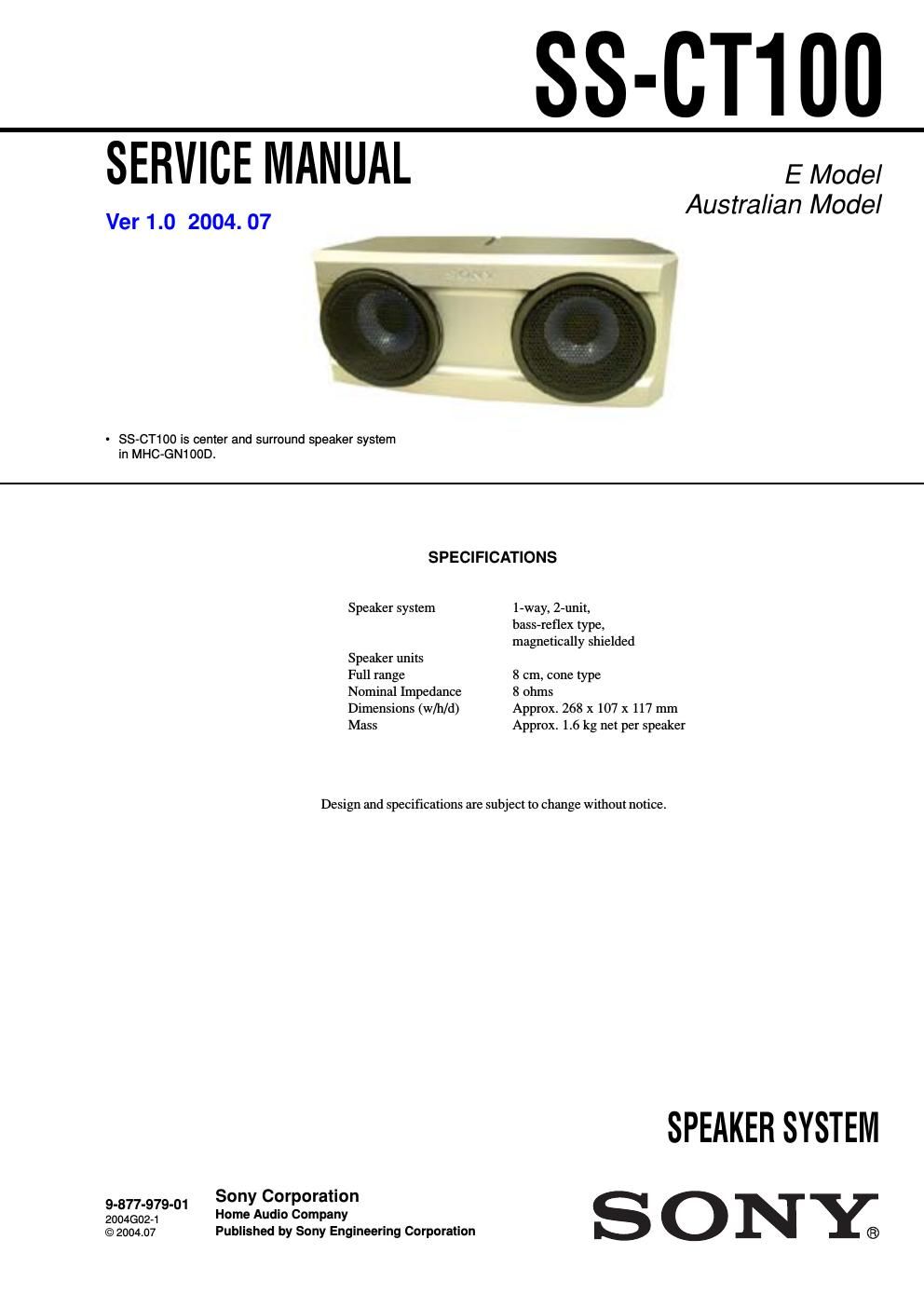

Page 1
2 SS-CT100 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks EXPLODED VIEWS NOTE: --XX, -X mean standardized parts, so they may have some difference from the original one. - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference number in the exploded views are not supplied. 1 A-4715-705-A FRONT PANEL ASSY 3 4-874-614-21 SCREW (1) (3.5X14), TAPPING 4 A-4715-706-A OVERALL ASSY 1 3 4 3 3 3 not supplied SP1 SP2 SP1 1-825-338-11 SPEAKER (8cm) SP2 1-825-338-11 SPEAKER (8cm)
Page 2
3 SS-CT100 MEMO
