Sony ss csd 1 service manual
This is the 2 pages manual for sony ss csd 1 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss csd 1 service manual (Ocr-read)

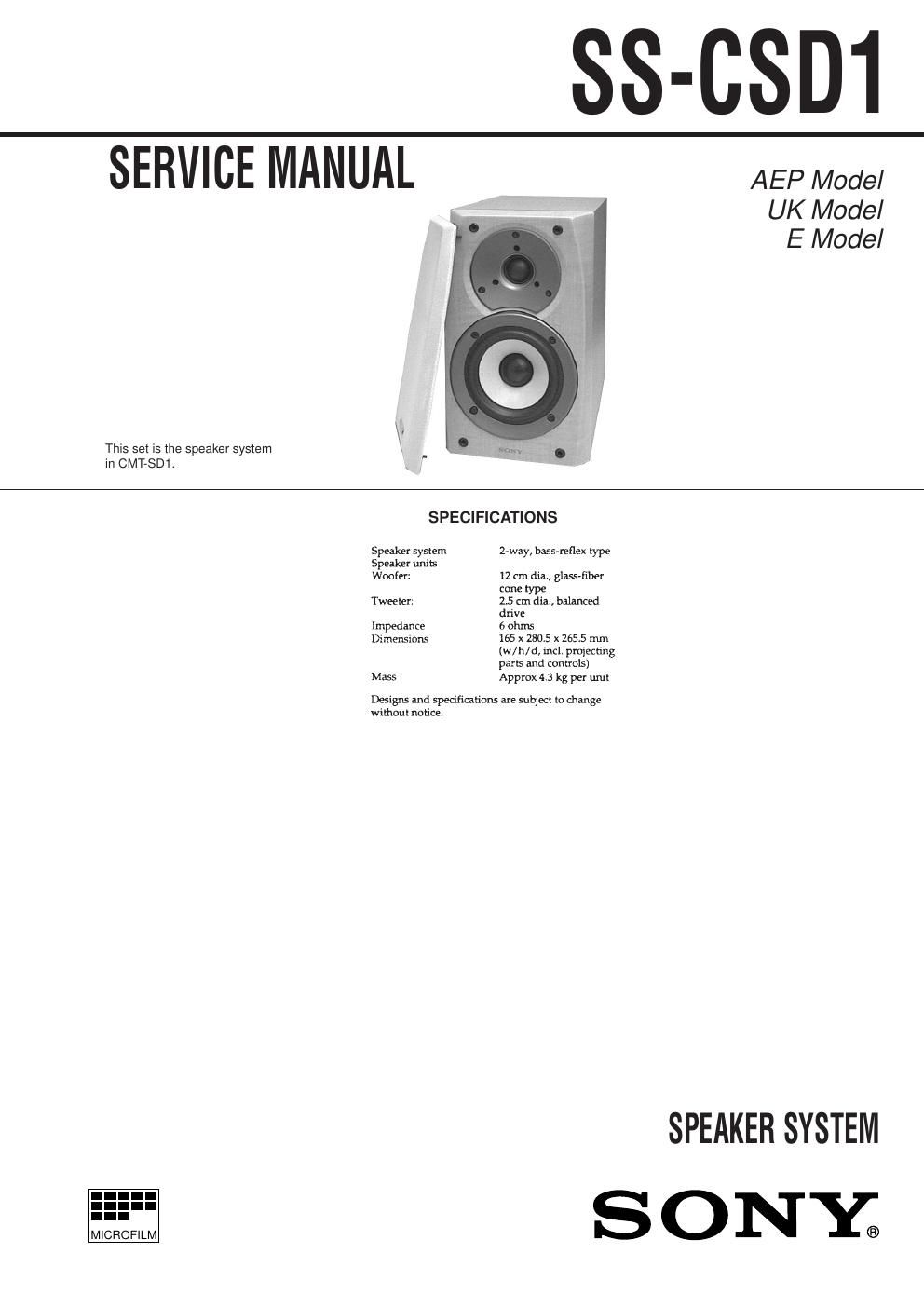

Page 1
Ð 2 Ð Sony Corporation Home A&V Products Company 9-922-979-11(SP)99A091653-1D Printed in Japan © 1999. 1 Published by Quality Assurance Dept. (Shibaura) SS-CSD1 EXPLODED VIEW AND PARTS LIST NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ¥ The mechanical parts with no reference number in the exploded views are not supplied. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 22 SP1 SP2 23 3 456 1 X-4950-450-1 FRAME ASSY, GRILLE 2 4-932-425-01 SCREW (3.5x20) *3 4-963-075-01 CATCHER *4 A-4411-453-A CABINET ASSY, SPEAKER (AEP,UK) *4 A-4411-286-A CABINET ASSY, SPEAKER (SP,HK) 5 1-761-117-11 MOUNTED BOARD 6 4-874-614-61 SCREW +BVTP 3.5x16 SP1 1-529-160-11 SPEAKER (2.5cm)SP2 1-529-159-11 SPEAKER (12cm) ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************** 1-790-271-12 CORD, SPEAKER 4-210-254-01 CUSHION (FOOT) ¥ Abbreviation HK : Hong Kong model SP : Singapore model
