Sony ss crp 75 service manual

This is the 4 pages manual for sony ss crp 75 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
sony ss crp 75 service manual

Extracted text from sony ss crp 75 service manual (Ocr-read)


Page 1

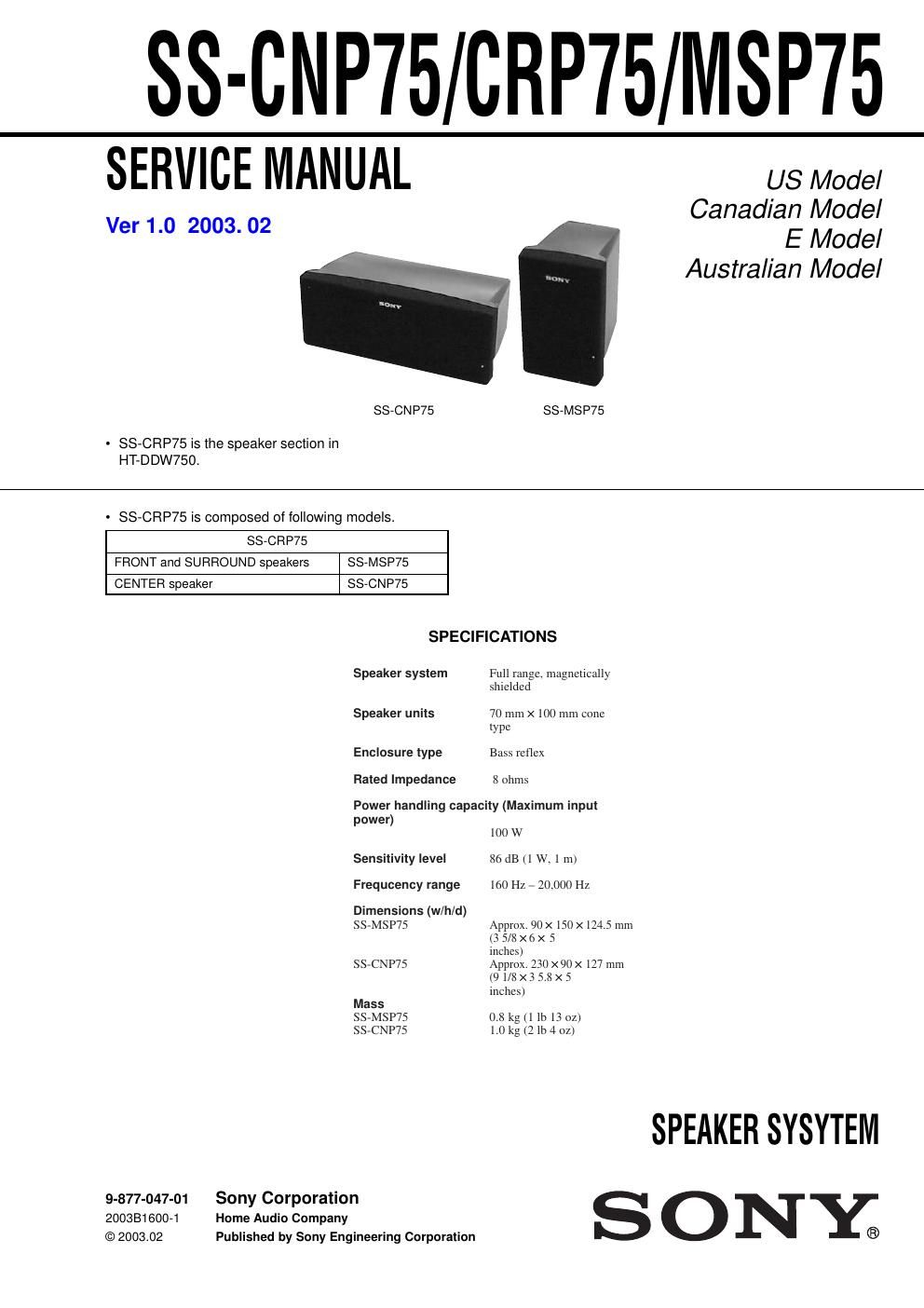

2 SS-CNP75/CRP75/MSP75 EXPLODED VIEWS NOTE: -The mechanical parts with no reference number in the exploded views are not supplied.--XX, -X mean standardized parts, so they may have some differences from the original one. 1A-4723-985-A FRONT PANEL ASSY (SILVER) 1A-4736-053-A FRONT PANEL ASSY (BLACK) 24-986-971-01 SCREW (3.5) 34-243-839-01 CABINET (SILVER) 34-243-839-11 CABINET (BLACK) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 44-229-803-11 PACKING 51-694-516-11 TERMINAL, SPEAKER 64-246-231-01 SCREW (3.5X14) SP1 1-825-003-12 SPEAKER (7X10cm) 1 3 2 6 4 5 6 SP1not supplied SS-CNP75

Page 2

3 SS-CNP75/CRP75/MSP75 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SS-MSP75 1 2 3 6 5 6 4 not supplied SP2 1A-4723-981-A FRONT PANEL ASSY (SILVER) 1A-4736-055-A FRONT PANEL ASSY (BLACK) 24-986-971-01 SCREW (SILVER) 3A-4723-982-A CABINET ASSY (SILVER) 3A-4736-056-A CABINET ASSY (BLACK)44-229-803-11 PACKING 51-694-516-11 TERMINAL, SPEAKER 64-246-231-01 SCREW (3.5X14) SP2 1-825-003-11 SPEAKER (7X10cm)
