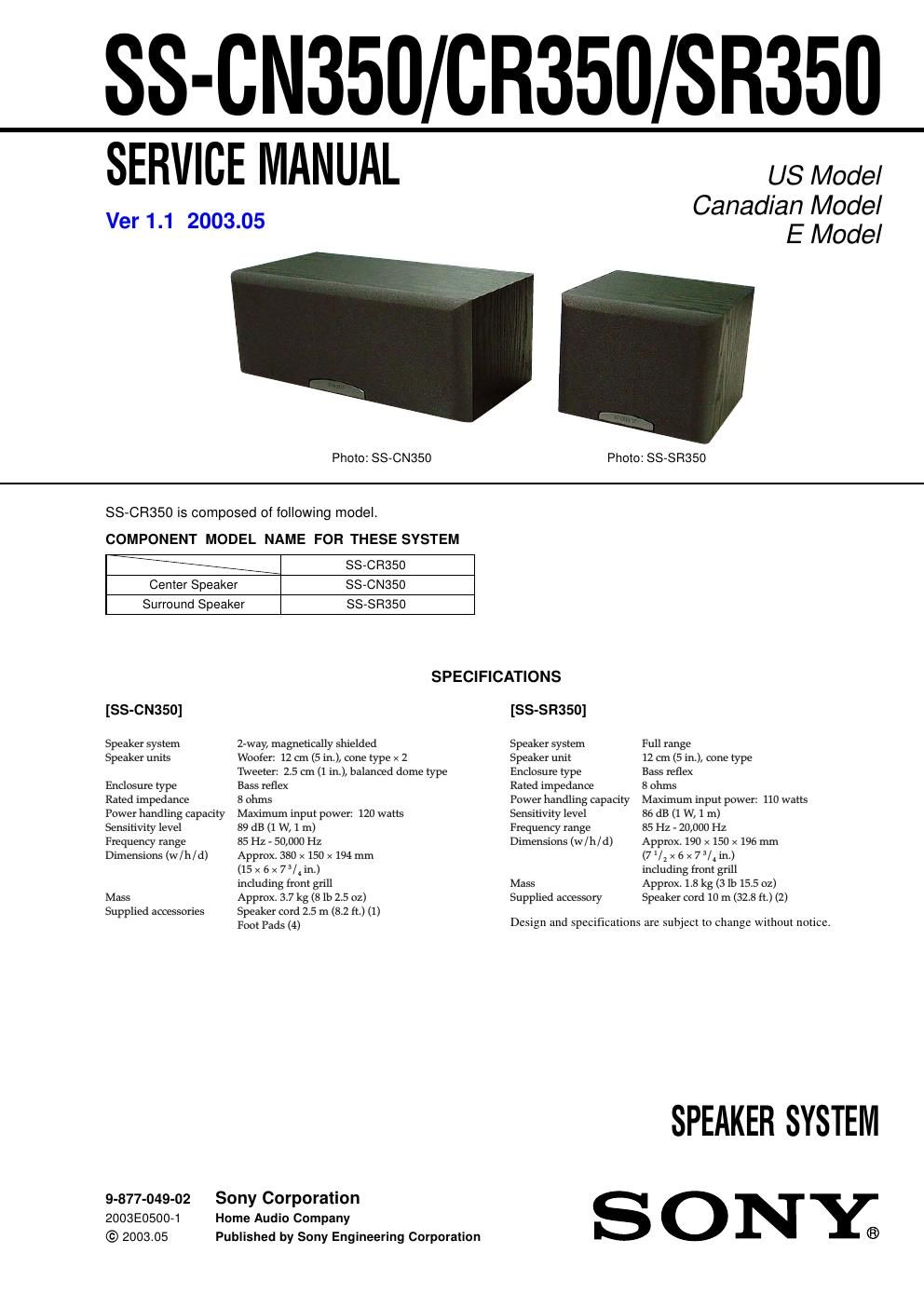

Sony ss cr 350 service manual
This is the 6 pages manual for sony ss cr 350 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss cr 350 service manual (Ocr-read)
Page 1
2 SS-CN350/CR350/SR350 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1X-4955-383-1 GRILLE FRAME (CN) ASSY (US, Canadian) 1 X-4955-547-1 GRILLE FRAME (CN) ASSY (E, Thai) 2 4-874-614-11 SCREW (1) (3.5X14), TAPPING 3 A-4736-794-A CABINET ASSY (CN), SPEAKER (US, Canadian) 3 A-4737-561-A CABINET ASSY (CN), SPEAKER (E, Thai) SP1 1-825-324-11 SPEAKER (12cm) (WOOFER) SP2 1-825-324-11 SPEAKER (12cm) (WOOFER) SP3 X-4955-380-1 TW ASSY (TW FRAME) (2.5cm) (TWEETER) EXPLODED VIEWS AND PARTS LIST - The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color (1) SS-CN350 1 2 2 3 not supplied SP2 SP3 2 SP1 V er 1.1
Page 2
3 SS-CN350/CR350/SR350 (2) SS-SR350 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 X-4955-384-1 GRILLE FRAME (SR) ASSY (US, Canaidan) 51 X-4955-546-1 GRILLE FRAME (SR) ASSY (E, Thai) 52 4-874-614-11 SCREW (1) (3.5X14), TAPPING 53 A-4736-795-A CABINET ASSY (SR), SPEAKER (US, Canadian) 53 A-4737-560-A CABINET ASSY (SR), SPEAKER (E, Thai)54 4-983-074-01 BRACKET, HOOK 55 7-621-849-10 SCREW, WOOD +R 3.1X13 (US, Canadian) 55 7-685-000-10 SCREW +P M3X12, TYPE1 (E, Thai) SP4 1-825-323-11 SPEAKER (12cm) 5152 55 not supplied 54 53 SP4 V er 1.1
