Extracted text from sony ss cr 305 service manual (Ocr-read)

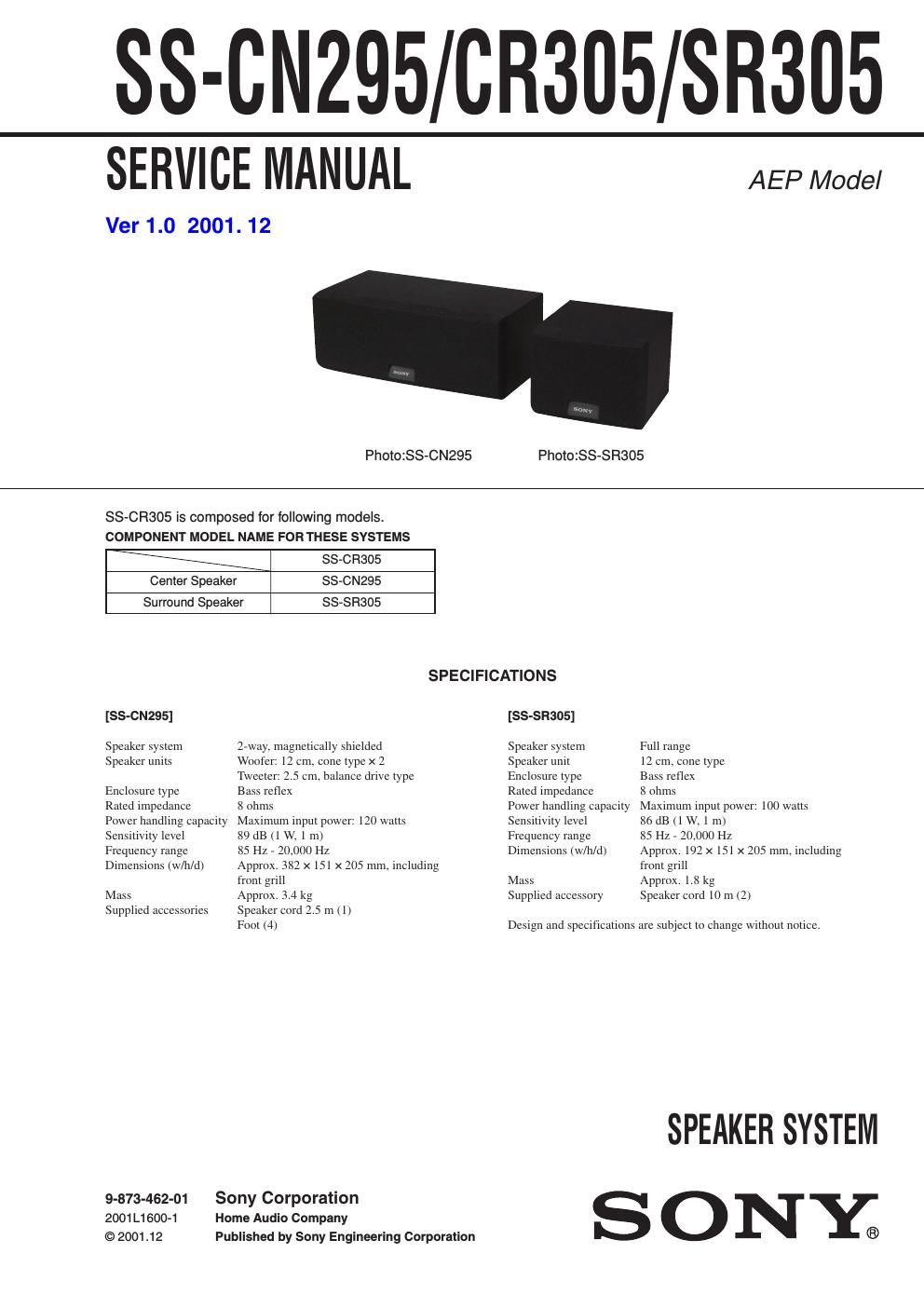

Page 1
EXPLODED VIEWS AND PARTS LIST NOTE: - The mechanical parts with no reference number in the exploded views are not supplied. 2 SS-CN295/CR305/SR305 Ref. No. Part No. Description Remarks - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color (1) SS-CN295 1 X-4953-812-1 GRILLE FRAME ASSY (CN) 2 4-874-614-61 SCREW (4) (3.5X16), TAPPING 3 4-234-474-01 SPEAKER CABINET (BLACK) 3 4-234-474-11 SPEAKER CABINET (MAPLE) 4 1-694-834-11 TERMINAL BOARD SP1 1-529-249-11 SPEAKER (12cm) SP2 1-544-778-11 SPEAKER (2.5cm) 4 3 1 2 2 2 SP1SP2 Part No. Description Remarks ACCESSORIES ************ 1-769-433-22 CORD, SPEAKER (2.5m) 4-234-485-11 INSTRUCTION MANUAL 4-211-434-01 CUSHION (FOR SS-CN295)
Page 2
3 SS-CN295/CR305/SR305 Ref. No. Part No. Description Remarks 11 X-4953-813-1 GRILLE FRAME ASSY (SR) 12 4-874-614-61 SCREW (4) (3.5X16), TAPPING 13 4-234-475-01 SPEAKER CABINET (BLACK) 13 4-234-475-11 SPEAKER CABINET (MAPLE) 14 1-694-834-11 TERMINAL BOARD SP3 1-529-250-11 SPEAKER (12cm) #1 7-621-849-10 SCREW,WOOD +R 3.1X13 (2) SS-SR305 11 12 13 14 SP3 not supplied #1 Part No. Description Remarks ACCESSORIES ************ 1-769-433-31 CORD, SPEAKER (1.0m) 4-234-485-11 INSTRUCTION MANUAL
