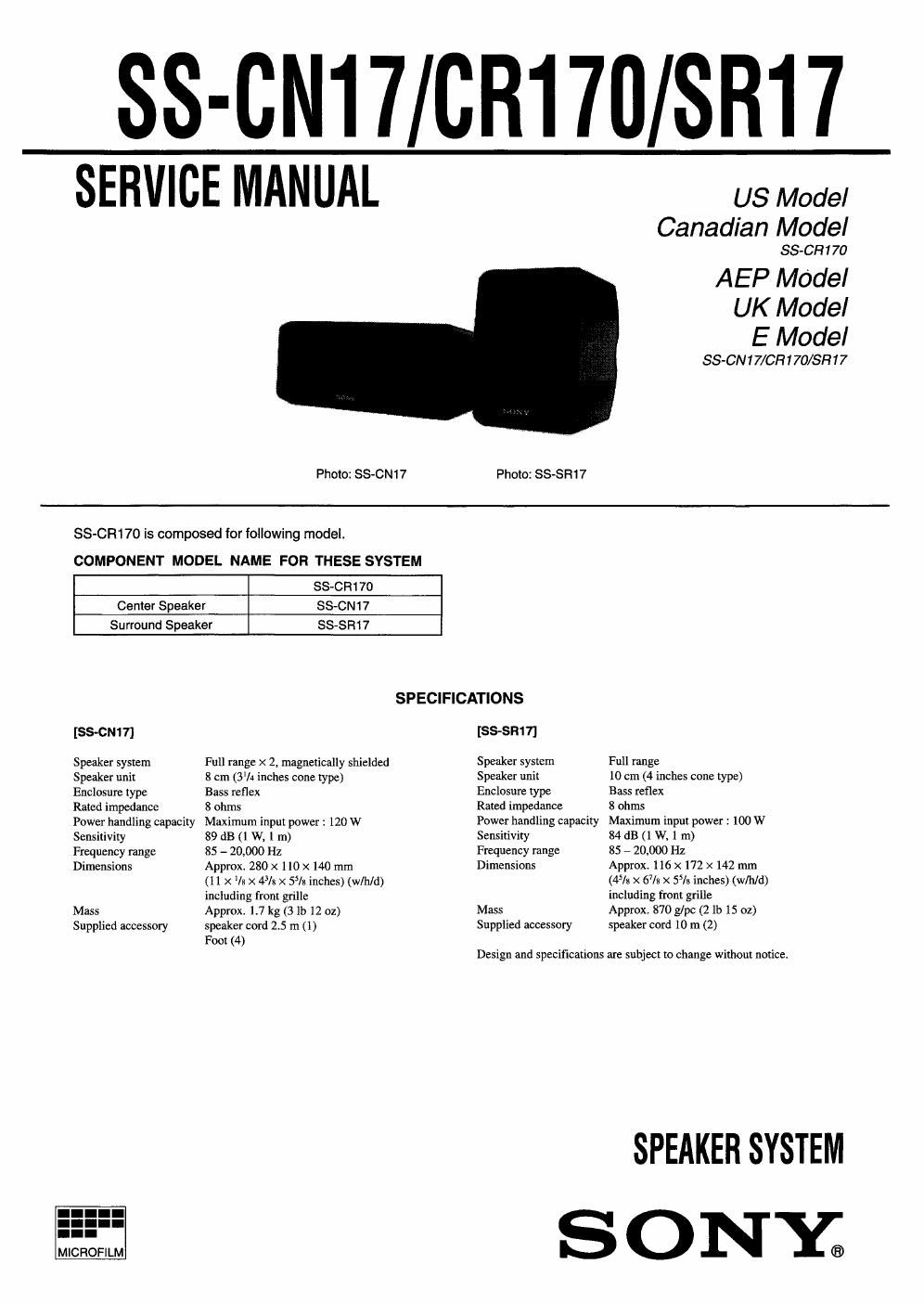

Page 1
SS-CN17/CR170/SR17
SEWTCE MANUAL
US Model
Canadian Model
SS-CH1 70
AEP Model
UK Model
E Model
SS-CN17/CH170/SFH7
Photo: SS-CN17 Photo: SS-SFl17
SS-CR170 is composed for following model.
COMPONENT MODEL NAME FOR THESE SYSTEM
SS-C R1 70
Center Speaker SS»CN17
Surround Speaker SS-SR17
SPECIFICATIONS
[SS-6N1 7] [SS-SEW]
Speaker system Full range X 2. magnetically shielded Speaker system Full range
Speaker unit 8 cm (3'14 inches cone type) Speaker unit 10 cm (4 inches cone type)
Enclosure type Bass reflex Enclosure type Bass reflex
Rated impedance 8 ohms Rated impedance 8 ohms
Power handling capacity Maximum input power : 120 W Power handling capacity Maximum input power : 100 W
Sensitivity 89 dB (1 W, l m) Sensitivity 84 dB (1 W. l m)
Frequency range 85 - 20.000 Hz Frequency range 85 - 20,000 Hz
Dimensions Approx. 280 X 110 x 140 mm Dimensions Approx. 116 x 172 X 142 mm
(11 X ls X 43/11 X 55/8 inches) (w/h/d) (45/3 X 6% X 55/29 inches) (wlh/d)
including from grille including from grille
Mass Approx. L7 kg (3 1b 12 oz) Mass Approx. 870 g/pc (2 lb 15 02)
Supplied accessory speaker cord 2.5 m (l) Supplied accessory speaker cord 10 m (2)
Foot (4)
Design and specifications are subject to change without notice.
MICROFILM
SPEAKER SYSTEM
SONY;
Page 2
EXPLODED VIEWS AND PARTS LIST
NOTE:
. Items marked
w
are not stocked since they 0 The mechanical parts with no reference num- - Color Indication of Appearance Parts
ale seldom required for routine service, Some her in the exploded views are not supplied. Example:
delay should be anticipated when ordering these
items.
- Abbreviation
CND: Canadian
(1) ss-crm
Rat No. Part No. Description Remark
-A
X-4947-052-1 PANEL ASSY. FRONT (BLACK)
(EXCEPT US, CND)
X-4949-973-1 PANEL ASSY, FRONT (GREY) (US, CND)
7-685-659-79 SCREW +BVTP 4X8 TYPEZ IT-3
1-777-045-11 CORD
X-4947-053-1 CABINET ASSY, SPEAKER (BLACK)
#wN-L
(EXCEPT US, CND)
7-685-663-79 SCREW (M4X16), TAPPING
1-537-775-11 TERMINAL BOARD
7-685-661-79 SCREW +BVTP TYPE2, IT-3
Noam.»
not supplied
X-4949-728-1 CABINET ASSY, SPEAKER (GREY) (US, CND)
KNOB. BALANCE (WHITE) . l l (RED)
T T
Parts Color Cabinet's Color
not supplied
Part No. Description Remark
1-505-298-11 SPEAKER (8 CM)
1-505-29841 SPEAKER (8 CM)
ACCESSORIES 8. PACKING MATERIALS
*$**$*#$******>I<**************#*$
1-769-433-22 CORD, SPEAKER
3-862-199-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH,
SPANISH, PORTUGUESE, GERMAN, DUTCH,
SWEDISH, ITALIAN, FINNISH, DANISH,
CHINESE)
4-972-322-01 FO0T(Y)
