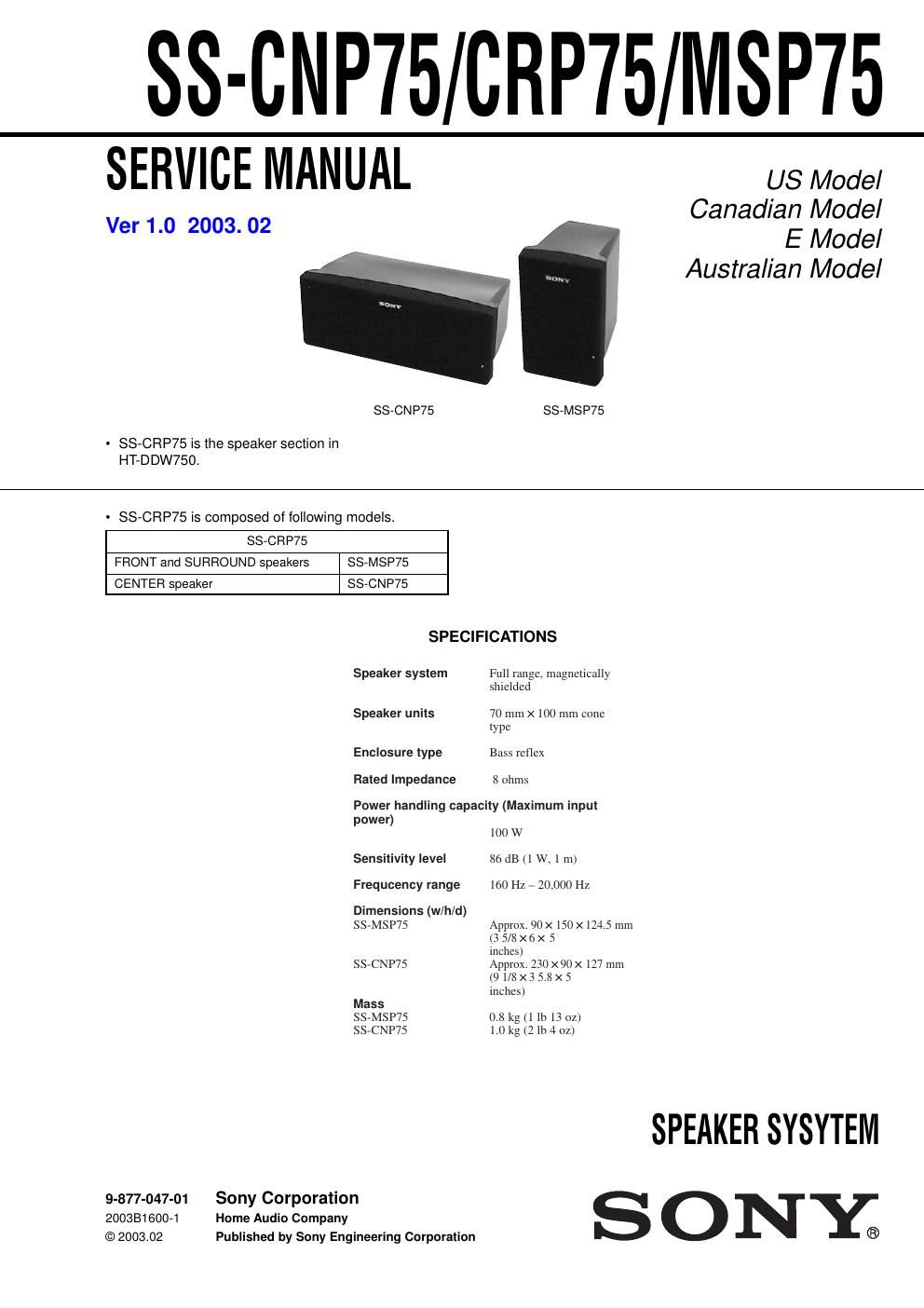

Sony ss cnp 75 service manual
This is the 4 pages manual for sony ss cnp 75 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss cnp 75 service manual (Ocr-read)
Page 1
2 SS-CNP75/CRP75/MSP75 EXPLODED VIEWS NOTE: -The mechanical parts with no reference number in the exploded views are not supplied.--XX, -X mean standardized parts, so they may have some differences from the original one. 1A-4723-985-A FRONT PANEL ASSY (SILVER) 1A-4736-053-A FRONT PANEL ASSY (BLACK) 24-986-971-01 SCREW (3.5) 34-243-839-01 CABINET (SILVER) 34-243-839-11 CABINET (BLACK) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 44-229-803-11 PACKING 51-694-516-11 TERMINAL, SPEAKER 64-246-231-01 SCREW (3.5X14) SP1 1-825-003-12 SPEAKER (7X10cm) 1 3 2 6 4 5 6 SP1not supplied SS-CNP75
Page 2
3 SS-CNP75/CRP75/MSP75 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SS-MSP75 1 2 3 6 5 6 4 not supplied SP2 1A-4723-981-A FRONT PANEL ASSY (SILVER) 1A-4736-055-A FRONT PANEL ASSY (BLACK) 24-986-971-01 SCREW (SILVER) 3A-4723-982-A CABINET ASSY (SILVER) 3A-4736-056-A CABINET ASSY (BLACK)44-229-803-11 PACKING 51-694-516-11 TERMINAL, SPEAKER 64-246-231-01 SCREW (3.5X14) SP2 1-825-003-11 SPEAKER (7X10cm)
