Sony ss cnp 69 service manual

This is the 4 pages manual for sony ss cnp 69 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
sony ss cnp 69 service manual

Extracted text from sony ss cnp 69 service manual (Ocr-read)


Page 1

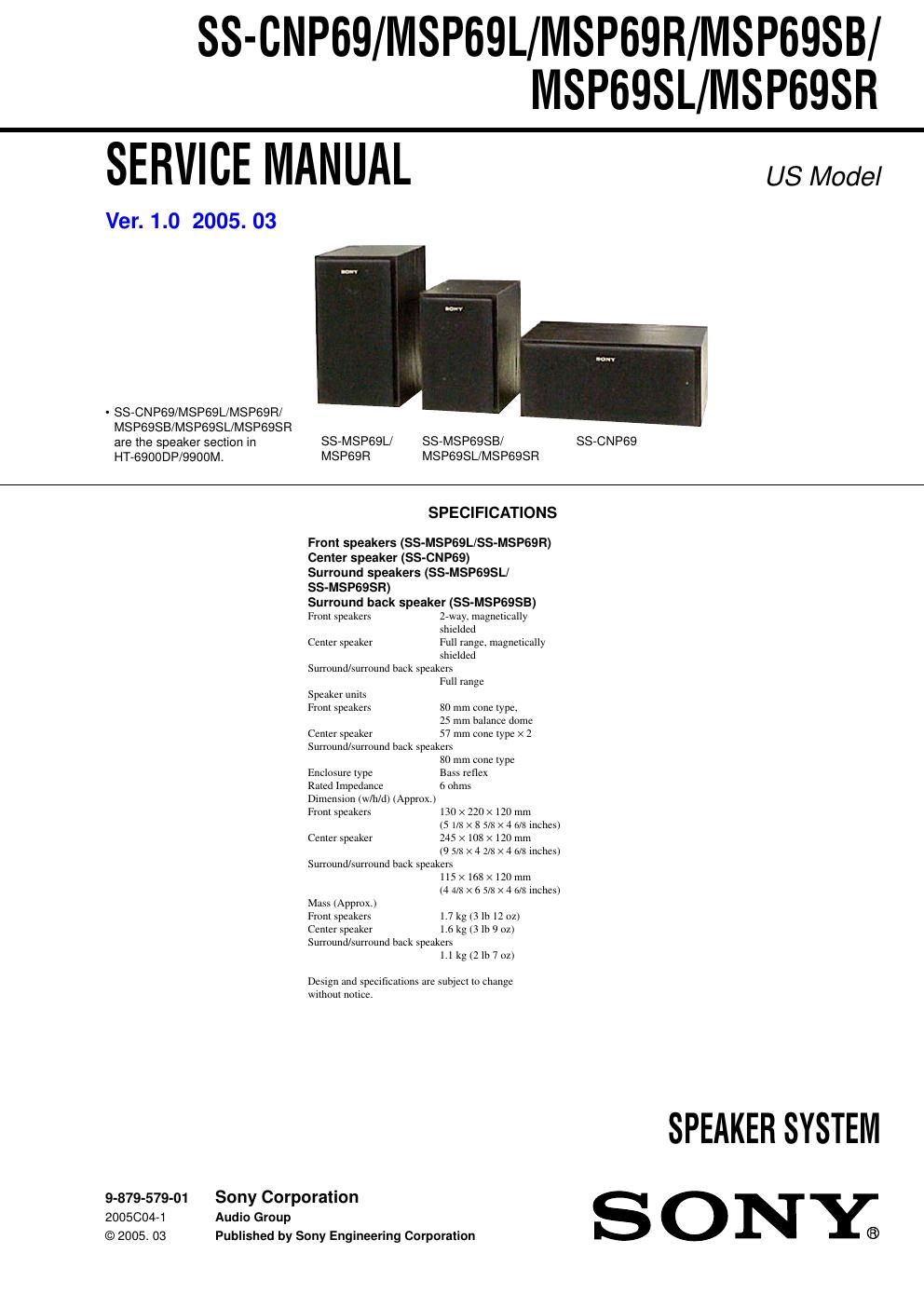

2 SS-CNP69/MSP69L/MSP69R/MSP69SB/MSP69SL/MSP69SRSECTION 1 EXPLODED VIEW Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: - The mechanical parts with no reference number in the exploded views are not supplied. 1 A-1086-879-A OVERALL ASSY (CNP69) 2 4-874-614-12 SCREW (1) (3.5X14), TAPPING 3 1-826-142-11 LOUD SPEAKER (5.7cm) (CNP69) 4 A-1090-407-A GRILLE FRAME ASSY (CNP69) 5 1-694-516-11 TERMINAL, SPEAKER (EXCEPT CNP69) 6 A-1084-010-A GRILLE FRAME ASSY (MSP69L/MSP69R) 7 1-826-141-11 LOUD SPEAKER (8cm) (MSP69L/MSP69R) 8 1-826-140-11 LOUD SPEAKER (2.5cm) (MSP69L/MSP69R) 9 A-1090-408-A GRILLE FRAME ASSY (MSP69SB/MSP69SL/MSP69SR) 10 1-825-953-11 SPEAKER (8cm) (MSP69SB/MSP69SL/MSP69SR) 11 4-986-971-01 SCREW (3.5) (EXCEPT CNP69) 4 5 2 2 2 11 2 2 2 2 2 2 1 67 8 10 9 SS-CNP69 SS-MSP69SB/MSP69SL/MSP69SR SS-MSP69L/MSP69R not supplied not supplied not suppliednot supplie d not supplied not supplied not supplied 3 5 2 11 2 not supplied

Page 2

3 SS-CNP69/MSP69L/MSP69R/MSP69SB/MSP69SL/MSP69SR MEMO
