Sony ss cn 909 service manual

This is the 2 pages manual for sony ss cn 909 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2

Extracted text from sony ss cn 909 service manual (Ocr-read)

Page 1

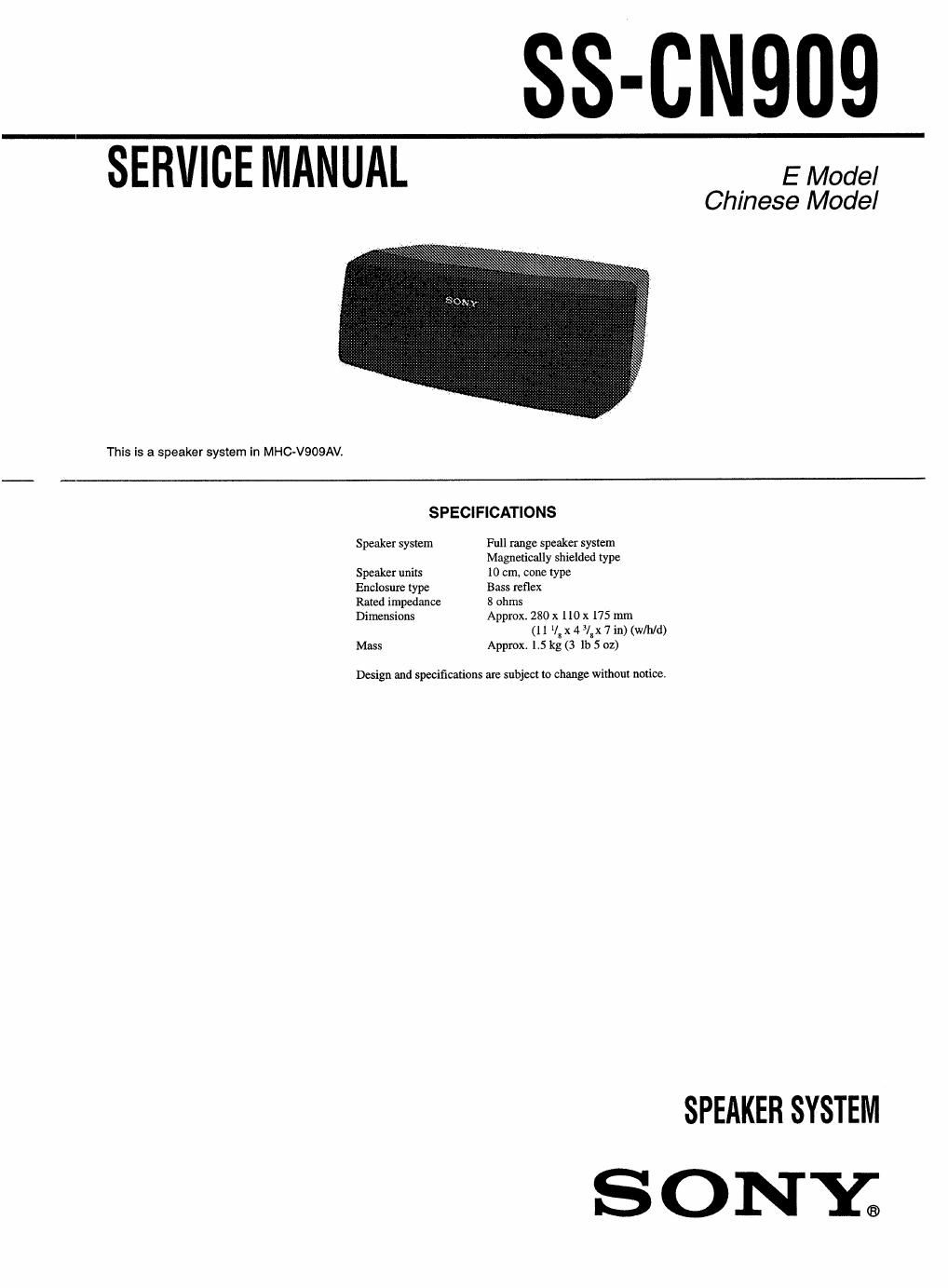

SS-CNQDQ

SERVICE MANUAL EModel

Chinese Model

This is a speaker system in MHC-V909AV.

SPECIFICATIONS

Speaker system Full range speaker syslem

Magnetically shielded type
Speaker units l0 cm, cone type
Enclosule type Bass reflex
Rated impedance 8 ohms
Dimensions Approx. 280 x 110 x 175 mm

(ll 1/a x 4 3G" 7 in) (wlhld)

Mass Approx 1.5 kg (3 lb 5 02)

Design and speciﬁcations are subject to change without notice,

SPEAKER SYSTEM

SONY;

Page 2

EXILODED VIEW AND PARTS LIST

NOTE :
0 Items marked * "are not stocked since they are 0 The mechanical parts with no reference number
seldomrequired for routine service Some delay in the exploded views are not supplied.

should be anticipated when ordering these items.

Ref. NL Pan No. Description Remark Ref. No Part No. Description Remark
1 X-4948-7104 PANEL ASSY, FRONT ACCESSORIES & PACKING MATERIALS
2 7.685.660. SCREW +BVTP 4X10TYPE2 *****>1:>1:****$*******************$
* 3 4-992-600-01 CABINET
4 7-685-663-79 SCREW +BVTP 4X16 TYPEZ 1-769»433-21 CORD, SPEAKER
5 1-537-77541 TERMINAL BOARD 4-972»322~01 FOOT (V)
6 7-685'661-79 SCREW +BVTP 4X12 TYPEZ

SP1 1-505-312-11 SPEAKER (8 cm)

Sony Corporation 9760422-1D

.. 2 _ (Shlbaura)
