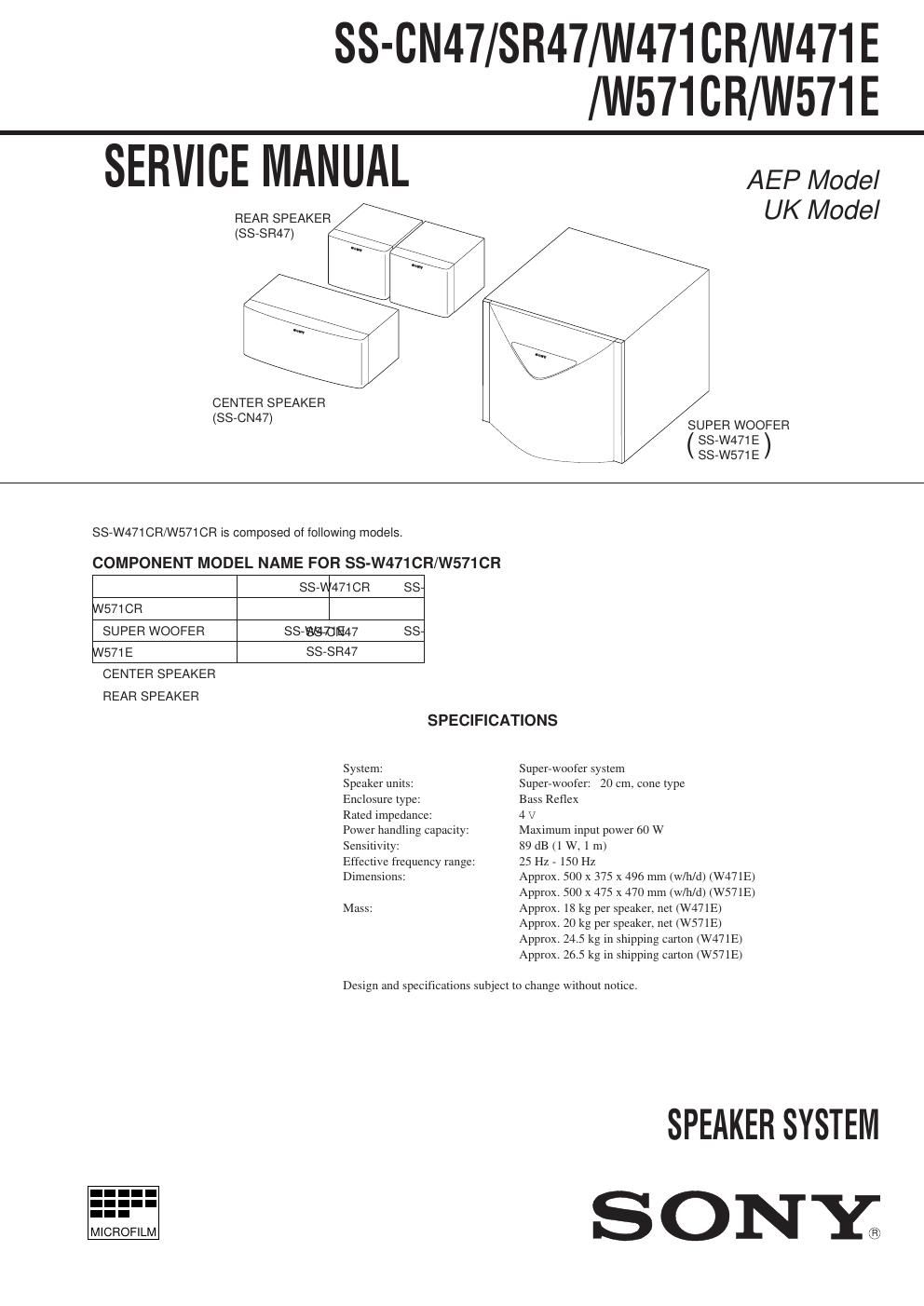

SS-CN47/SR47/W471CR/W471E/W571CR/W571E
Ñ 2 Ñ
Sony Corporation
Home A&V Products Company
97I7554-1
Printed in Germany © 1997. 9
Published by General Engineering Dept.
(Shibaura)
9-922-714-11
1. EXPLODED VIEW AND PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-4379-739-A ACCESSORY ASSY
3-859-995-11 INSTRUCTION MANUAL (W471V)
(ENGLISH,FRENCH,SPANISH,PORTUGUESE
,GERMAN,DUTCH,ITALIAN,SWEDISH,DANISH
,FINNISH,RUSSIAN,POLISH,CZECH
,HUNGARIAN)
3-859-996-01 INSTRUCTION MANUAL (W571V)
(ENGLISH,FRENCH,SPANISH,PORTUGUESE
,GERMAN,DUTCH,ITALIAN,SWEDISH,DANISH
,FINNISH,RUSSIAN,POLISH,CZECH
,HUNGARIAN) 1 X-4948-652-1 SPEAKER CABINET ASSY (W471E)
1 X-4948-654-1 SPEAKER CABINET ASSY (W571E)
2 X-4948-653-1 GRILLE FRAME ASSY (W471E)
2 X-4948-655-1 GRILLE FRAME ASSY (W571E)
3 1-782-707-11 CORD (INTERCONNECTING) (W471E)
3 1-777-647-11 CORD (INTERCONNECTING) (W571E)
4 1-537-529-11 TERMINAL BOARD
5 4-977-569-01 SERVICE PANEL (W571E)
6 X-4947-640-1 LED ASSY (W571E)
7 4-960-362-01 SCREW +P 4 X 19
8 4-981-348-01 SCREW +P 4 X 25 (W571E)
9 4-960-366-01 SCREW +P3.5 X 9.5 (W571E)
* 10 A-4349-211-A REAR SPEAKER (SS-SR47)
* 11 A-4349-210-A CENTER SPEAKER (SS-CN47)
SP1 1-505-766-11 SPEAKER (20 cm) (SUPER-WOOFER)
SS-W471E
SS-W571E
8
257
SP1
3
6
91
4
3
27
SP1
14
NOTE:
¥ Items marked "*" are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
