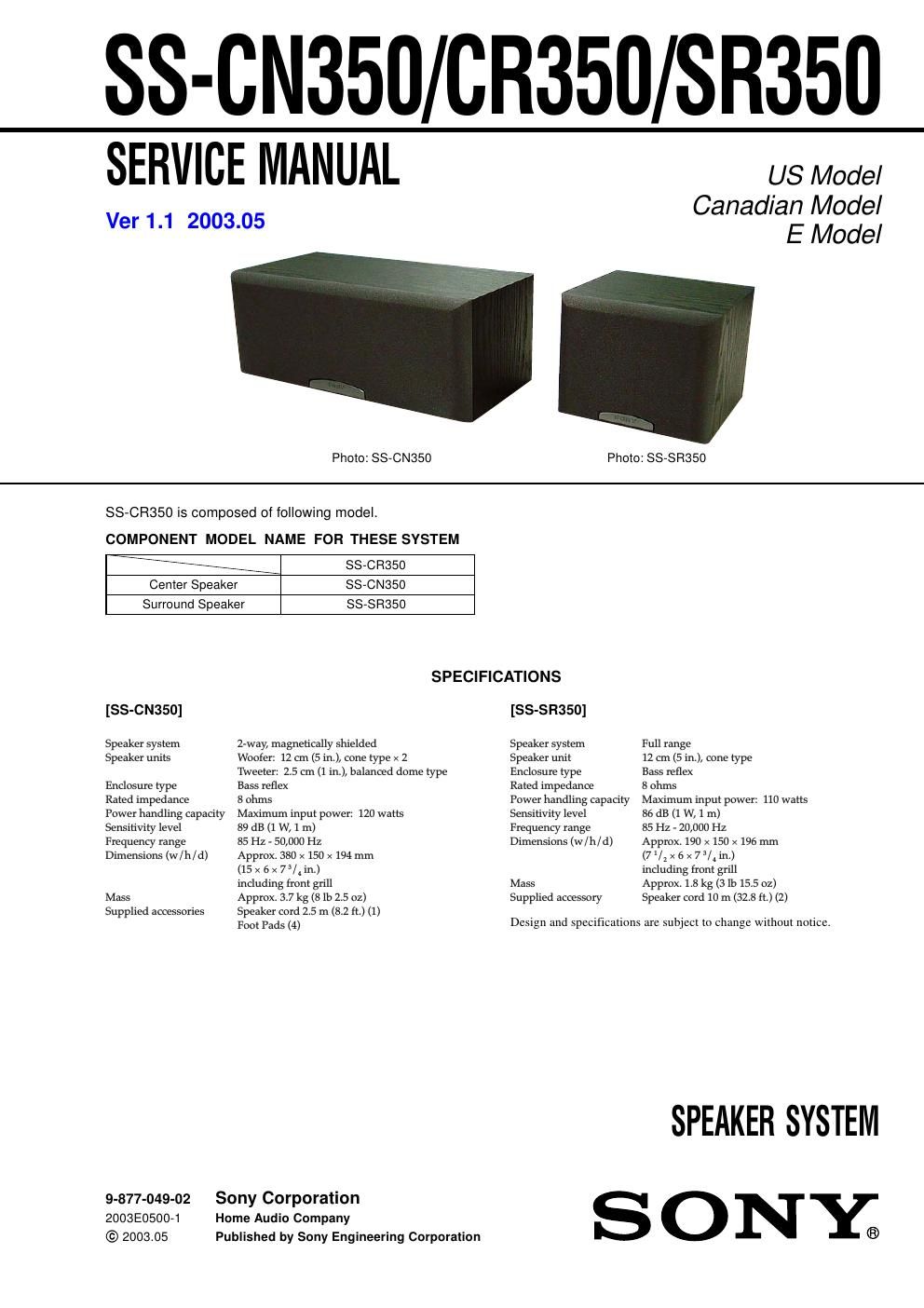

Page 1
2 SS-CN350/CR350/SR350 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1X-4955-383-1 GRILLE FRAME (CN) ASSY (US, Canadian) 1 X-4955-547-1 GRILLE FRAME (CN) ASSY (E, Thai) 2 4-874-614-11 SCREW (1) (3.5X14), TAPPING 3 A-4736-794-A CABINET ASSY (CN), SPEAKER (US, Canadian) 3 A-4737-561-A CABINET ASSY (CN), SPEAKER (E, Thai) SP1 1-825-324-11 SPEAKER (12cm) (WOOFER) SP2 1-825-324-11 SPEAKER (12cm) (WOOFER) SP3 X-4955-380-1 TW ASSY (TW FRAME) (2.5cm) (TWEETER) EXPLODED VIEWS AND PARTS LIST - The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color (1) SS-CN350 1 2 2 3 not supplied SP2 SP3 2 SP1 V er 1.1
Page 2
3 SS-CN350/CR350/SR350 (2) SS-SR350 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 X-4955-384-1 GRILLE FRAME (SR) ASSY (US, Canaidan) 51 X-4955-546-1 GRILLE FRAME (SR) ASSY (E, Thai) 52 4-874-614-11 SCREW (1) (3.5X14), TAPPING 53 A-4736-795-A CABINET ASSY (SR), SPEAKER (US, Canadian) 53 A-4737-560-A CABINET ASSY (SR), SPEAKER (E, Thai)54 4-983-074-01 BRACKET, HOOK 55 7-621-849-10 SCREW, WOOD +R 3.1X13 (US, Canadian) 55 7-685-000-10 SCREW +P M3X12, TYPE1 (E, Thai) SP4 1-825-323-11 SPEAKER (12cm) 5152 55 not supplied 54 53 SP4 V er 1.1
