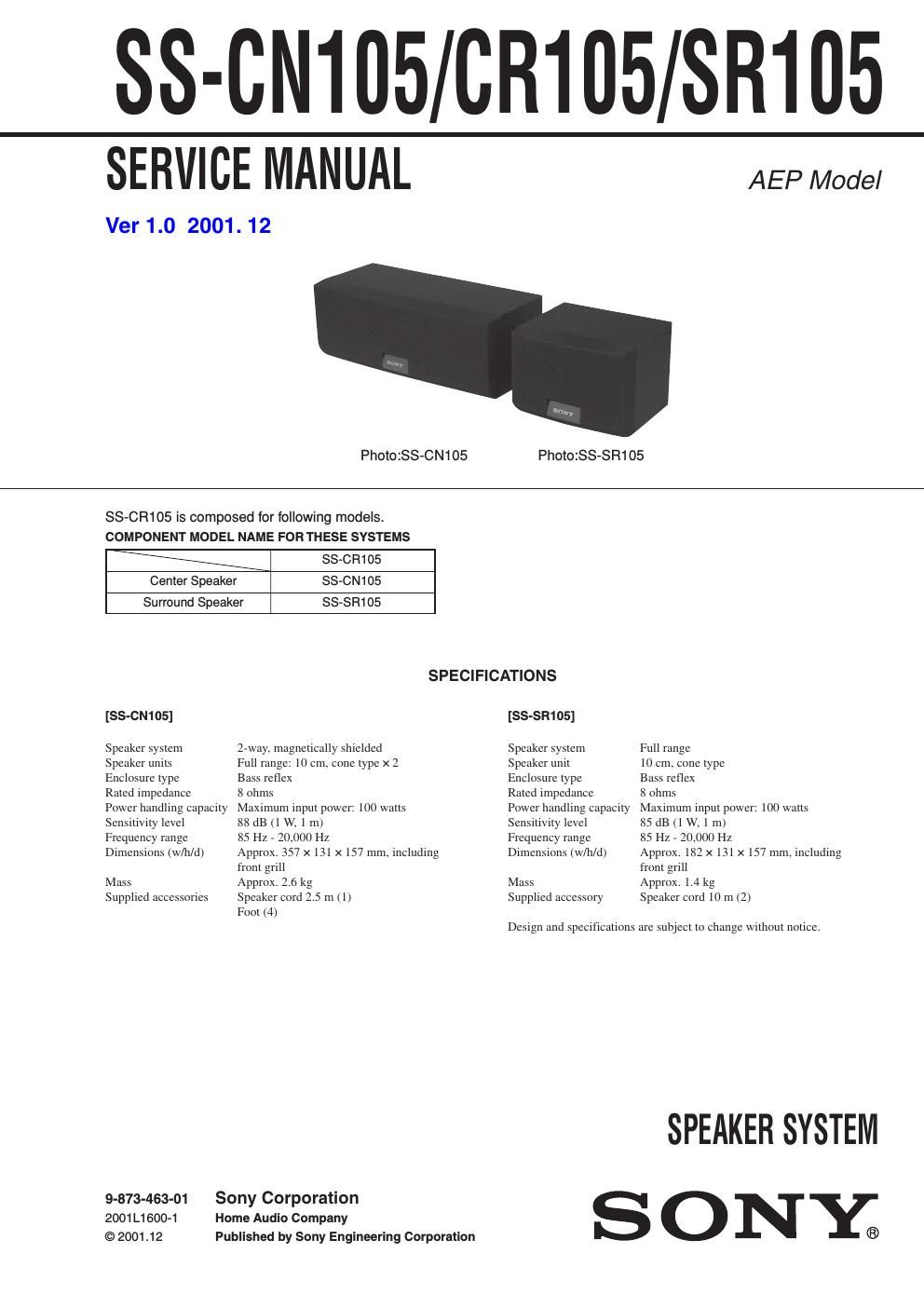

Sony ss cn 105 service manual
This is the 4 pages manual for sony ss cn 105 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss cn 105 service manual (Ocr-read)
Page 1
EXPLODED VIEWS AND PARTS LIST NOTE: - The mechanical parts with no reference number in the exploded views are not supplied. 2 SS-CN105/CR105/SR105 Ref. No. Part No. Description Remarks - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color (1) SS-CN105 1 X-4953-814-1 GRILLE FRAME ASSY (CN) 2 4-874-614-61 SCREW (4) (3.5X16), TAPPING 3 4-234-486-01 SPEAKER CABINET (BLACK) 3 4-234-486-11 SPEAKER CABINET (MAPLE) 3 4-234-486-21 SPEAKER CABINET (CHERRY) 4 1-694-834-11 TERMINAL BOARD SP1 1-529-247-11 SPEAKER (10cm) 3 1 2 2 4 SP1 SP1 Part No. Description Remarks ACCESSORIES ************ 1-769-433-21 CORD, SPEAKER (2.5m) 4-234-498-11 INSTRUCTION MANUAL 4-211-434-01 CUSHION (FOR SS-CN105)
Page 2
3 SS-CN105/CR105/SR105 Ref. No. Part No. Description Remarks 11 X-4953-815-1 GRILLE FRAME ASSY (SR) 12 4-874-614-61 SCREW (4) (3.5X16), TAPPING 13 4-234-487-01 SPEAKER CABINET (BLACK) 13 4-234-487-11 SPEAKER CABINET (MAPLE) 13 4-234-487-21 SPEAKER CABINET (CHERRY) 14 1-694-834-11 TERMINAL BOARD SP2 1-529-248-11 SPEAKER (10cm) #1 7-621-849-10 SCREW,WOOD +R 3.1X13 (2) SS-SR105 14 111213 SP2not supplied #1 Part No. Description Remarks ACCESSORIES ************ 1-769-433-31 CORD, SPEAKER (10m) 4-234-498-11 INSTRUCTION MANUAL
