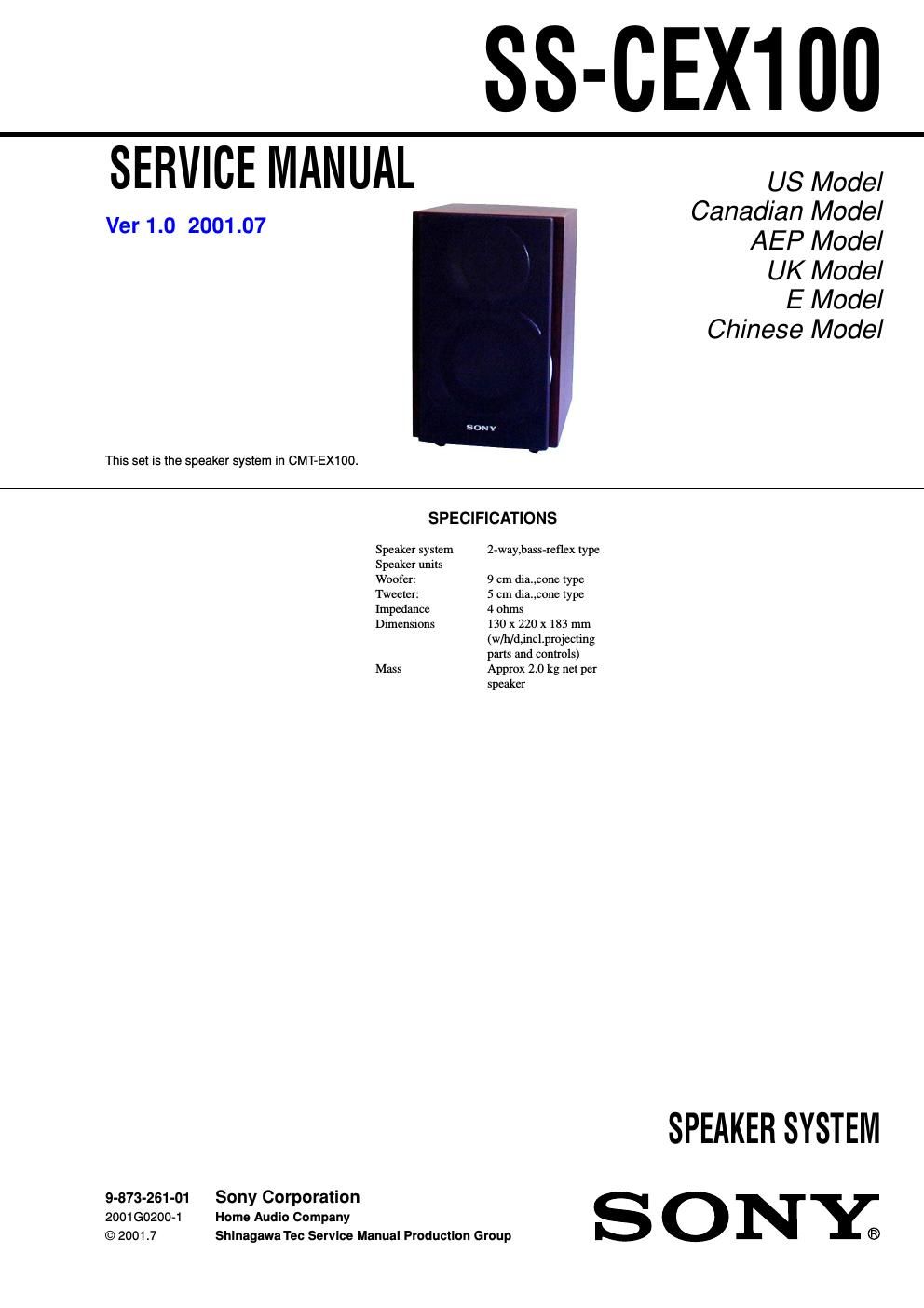

Sony ss cex 100 service manual
This is the 4 pages manual for sony ss cex 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss cex 100 service manual (Ocr-read)
Page 1
2 SS-CEX100 NOTE: - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. - Abbreviation CND : Canadian model HK : Hong Kong model SP : Singapore model KR : Korea model CH : Chinese model Ref. No. Part No. Description Remark EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark 1 4-235-034-01 CLOTH FRAME 2 4-225-978-01 WOOD SCREW 3 4-235-027-01 FRAME (W) 4 4-235-028-01 FRAME (T) 5 4-231-243-01 PAPER TUBE 6 4-235-029-01 FOOT 7 4-225-977-01 WOOD SCREW 8 4-225-979-01 PIN9 1-761-436-11 MOUNTED PC BOARD 10 4-236-769-01 FOOT (FELT) 11 4-235-030-01 SPK BOX (US,CND,SP,HK,KR,CH) 11 4-235-031-01 SPK BOX (AEP,UK) SP901 1-529-801-21 SPEAKER (5CM) SP902 1-529-906-21 SPEAKER SP902 SP901 12 568 91011 238 74
Page 2
3 SS-CEX100 MEMO
