Sony ss ccq 1 service manual
This is the 4 pages manual for sony ss ccq 1 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

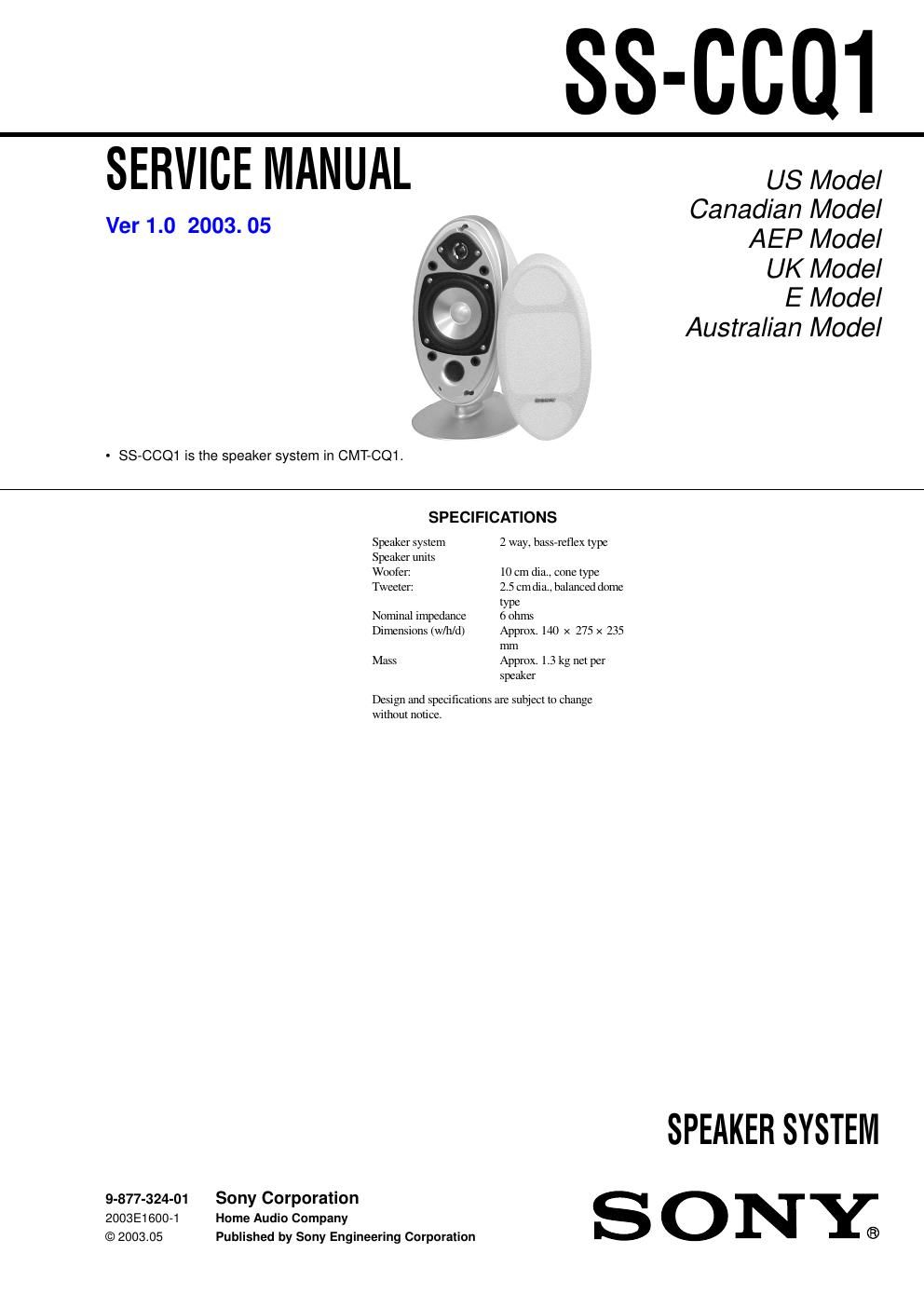

Extracted text from sony ss ccq 1 service manual (Ocr-read)
Page 1
2 SS-CCQ1 EXPLODED VIEW AND PARTS LIST NOTE: --XX, -X mean standardized parts, so they may have some differences from the original one. -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.-The mechanical parts with no reference number in the exploded views are not supplied. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 23 44 4 4 56 3 not supplied SP1 SP2 not supplied 6 1A-4739-228-A SYSTEM ASSY (WHITE) (US,CND,AEP,UK,HK,KR,SP,TW,MX,AUS) 1A-4739-284-A SYSTEM ASSY (BLACK) (US,CND) 2X-4955-273-1 FRAME ASSY, GRILLE (WHITE) (US,CND,AEP,UK,HK,KR,SP,TW,MX,AUS) 2X-4955-597-1 FRAME ASSY, GRILLE (BLACK) (US,CND) 34-912-253-01 CATCHER44-874-614-11 SCREW (1) (3.5X14), TAPPING 54-238-408-11 SCREW (1) (4X25), +BV TAPPING 64-240-321-01 FOOT SP1 1-504-889-12 SPEAKER (10cm) SP2 1-504-912-11 SPEAKER (2.5cm)-Abbreviation AUS : Australian model. CND : Canadian model. HK : Hong Kong model. KR : Korean model. MX : Mexican model. SP : Singapore model. TW : Taiwan model. -Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color
Page 2
3 SS-CCQ1 MEMO
