Sony ss ccp 2 service manual
This is the 2 pages manual for sony ss ccp 2 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss ccp 2 service manual (Ocr-read)

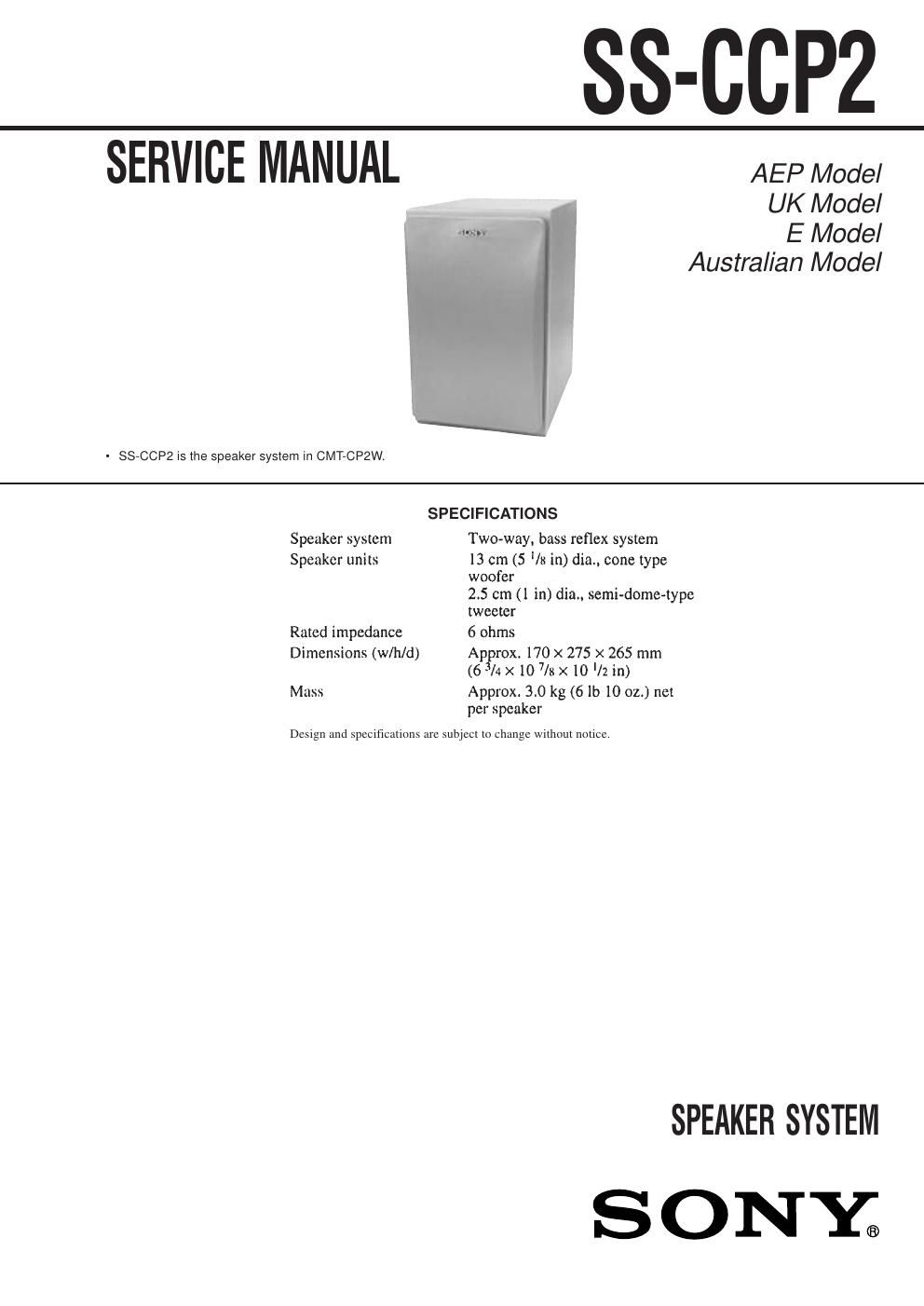

Page 1
2 NOTE: ¥ -XX and -X mean standardized parts, so they may have some difference from the original one. ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ¥ The mechanical parts with no reference num- ber in the exploded views are not supplied. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark EXPLODED VIEW AND PARTS LIST Sony Corporation Home Audio Division Company 9-928-972-12 2000C0030051-1F Printed in Japan © 2000. 3 Published by Quality Assurance Dept. SP1SP2 not supplied not supplied 23 3 4 5 617 1 4-222-352-01 BOX (L), SPEAKER 1 4-222-353-01 BOX (R), SPEAKER 2 X-4951-955-1 NET SUB ASSY, SPEAKER 3 4-874-614-11 SCREW (4) (3.5X14), TAPPING 4 4-870-003-00 CLIPPER, CODE 5 4-218-202-01 CATCHER, NET6 4-222-355-01 PANEL (SPK), WOOFER 7 4-222-348-01 LABEL (SPK L) 7 4-222-349-01 LABEL (SPK R) SP1 1-529-533-11 SPEAKER (13cm) SP2 A-4411-967-A TWEETER ASSY (2.5cm) R-CH
