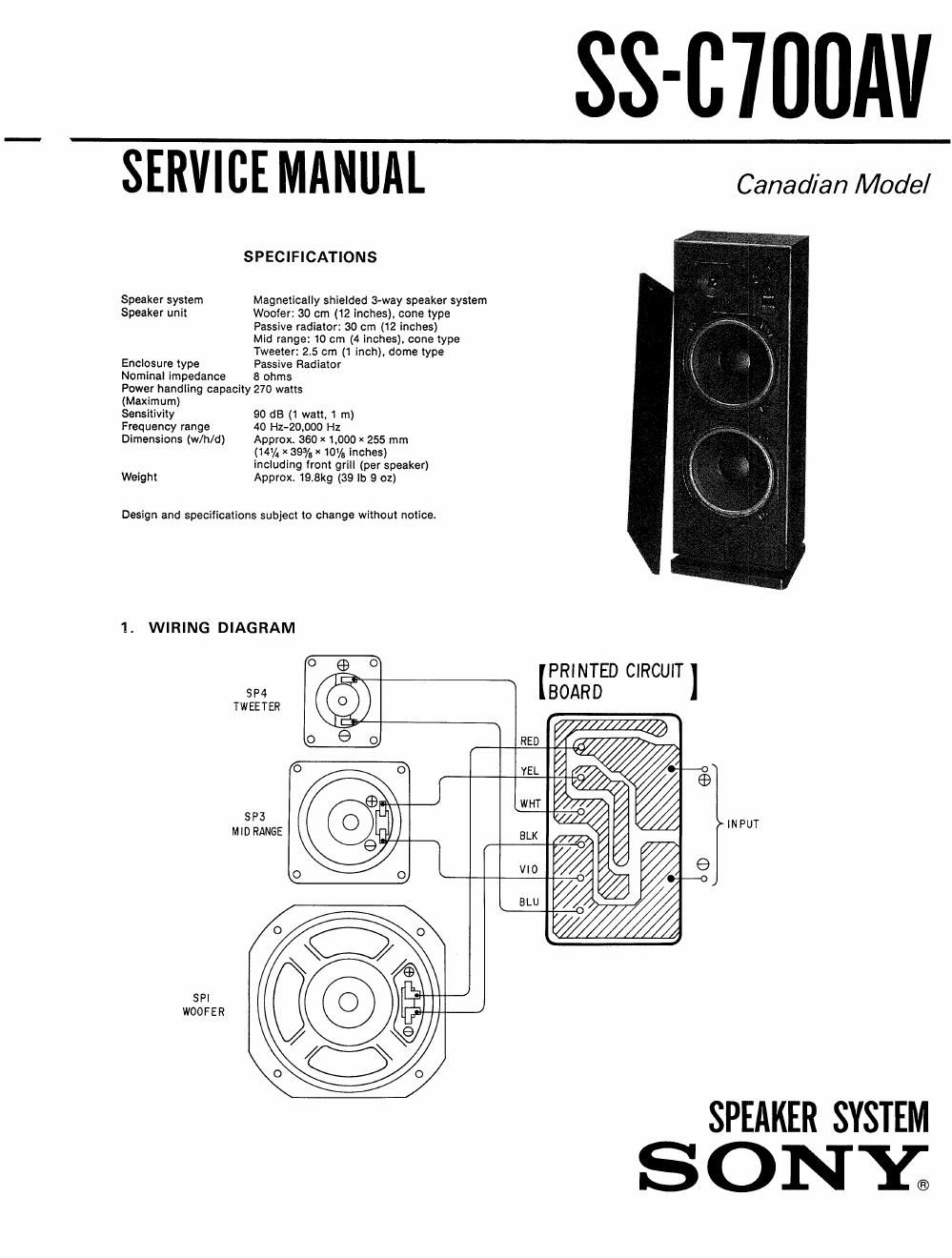

Page 1
SS-C'IUUAV
SERVICE MANUAL
SPECIFICATIONS
Speaker system
Speaker unlt
Magnetically shieided 3-way speaker system
Woofer: 30 cm (12 inches). cone type
Passive radiator: 30 cm (12 inches)
Mid range: 10 cm (4 inches). cone type
Tweeter: 2.5 cm (1 inch). dome type
Enclosure type Passive Radiator
Nominal impedance 8 ohms
Power handling capacity 270 watts
(Maximum)
Sensitivity
Frequency range
Dimensions (w/h/d)
90 d8 (1 watt, 1 m)
40 I'll-20.000 Hz
Approx. 360 x 1,000 X 255 mm
(14% X 39% X 10% inches)
including from grlli (per speaker)
Weight Approx. 19,8kg (39 lb 9 oz)
Design and specifications subject to change without notice.
1. WIRING DIAGRAM
I
Canadian Model
PRINTED CIRCUIT
SP4 BOARD
TWEETER
RED Z
YEL 60
69
WHT
0
SP3 INPUT
MID RANGE ELK
VIO
BLU
SPI
WOOFER
SPEAKER SYSTEM
S 0 NY;
