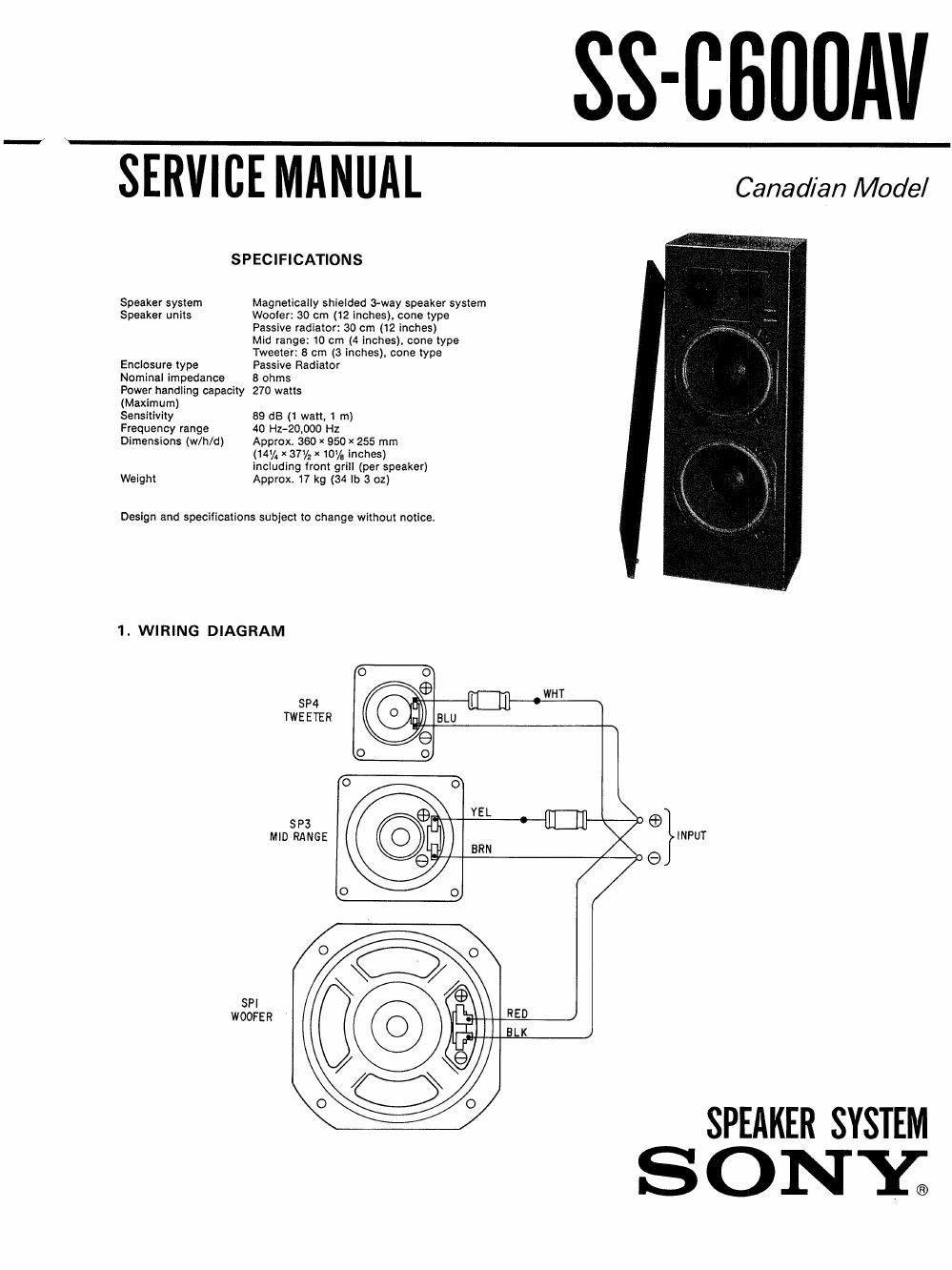

Sony ss c 600 av service manual

Page 2

SS-C600AV

2. EXPLODED VIEW AND PARTS LIST

NOTE:

0 The mechanical parts with no reference
number in the exploded views are not
supplied.

a The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.

0 Items marked t are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.

1
No. Part No. Descrigtion
1 X-4941-526-1 FRAME ASSY, GRILLE
2 4-932-227-01 EMBLEM, BAFFLE BOARD
3 *X-4941-530-l CABINET ASSY
4 4-883-011-11 SCREW
9-956-198-11

SP1
SP2
SP3
SP4

Part No. Description
1-589-165-11 MOUNTED PC BOARD
1-544-119-11 WOOFER
1-544-122-11 PASSIVE RADIATOR
1-544-103-21 MID RANGE
1-544-104-21 TWEETER

ACCESSORY & PACKING MATERIAL

*4-944-481-01
*4-941-849-01
3-751'811-31

Sony Corporafion
Audio Group

_2_

CUSHION
INDIVIDUAL CARTON
MANUAL, INSTRUCTION
English
9 1 A0405- 1

Printed in Japan
© 1991. 1

Published by Customer Relallons and Servlce Group
