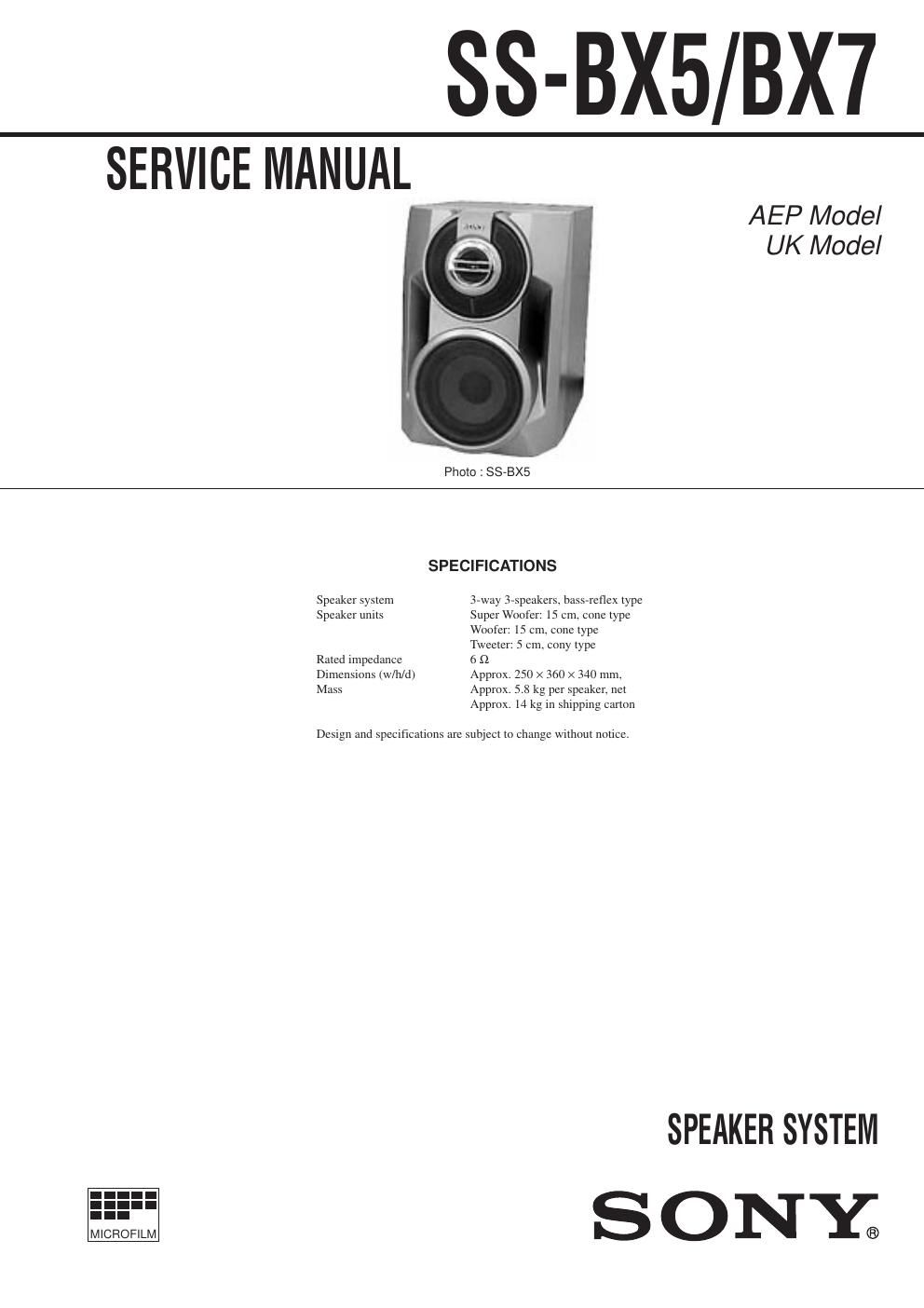

Sony ss bx 5 service manual
This is the 2 pages manual for sony ss bx 5 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss bx 5 service manual (Ocr-read)
Page 1
2 Sony Corporation Home Audio Division Company 9-929-093-11 2000C75 49-1 Printed in Hungary ©2000.3 Published by Quality Assurance Dept. SS-BX5/BX7 EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 X-4952-558-1 PANEL ASSY, FRONT 2 4-993-215-01 SPEAKER (4) (3.5X16), TAPPING 3 4-228-062-01 SCREW (+P3.5X10), TAPPING 4 X-4952-559-1 CABINET ASSY, SPEAKER 5 1-792-462-11 SPEAKER CORD (TO SUPER WOOFER: + RED/ Ð BLACK) (TO WOOFER: + GRAY/ Ð GRAY WITH WHITE LINE) (TO TWEETER: + BROWN/ Ð BLACK) SP1 1-529-649-11 SPEAKER, LOUD (15cm) (SUPER WOOFER) SP2 1-529-323-11 SPEAKER (5cm) (TWEETER) SP3 1-529-648-12 SPEAKER, LOUD (15cm) (BX5) (WOOFER) SP3 1-529-729-11 SPEAKER, LOUD (15cm) (BX7) (WOOFER)ACCESSORIES & PACKING MATERIALS ******************************** 4-226-296-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,SPANISH,PORTUGUESE, GERMAN,DUTCH,ITALIAN,SWEDISH,DANISH, FINNISH,RUSSIAN,POLISH,CZECH, HUNGARIAN) S 2 SP1 5 SP2 3 SP3 4 2 1 not supplied not supplied not supplied
