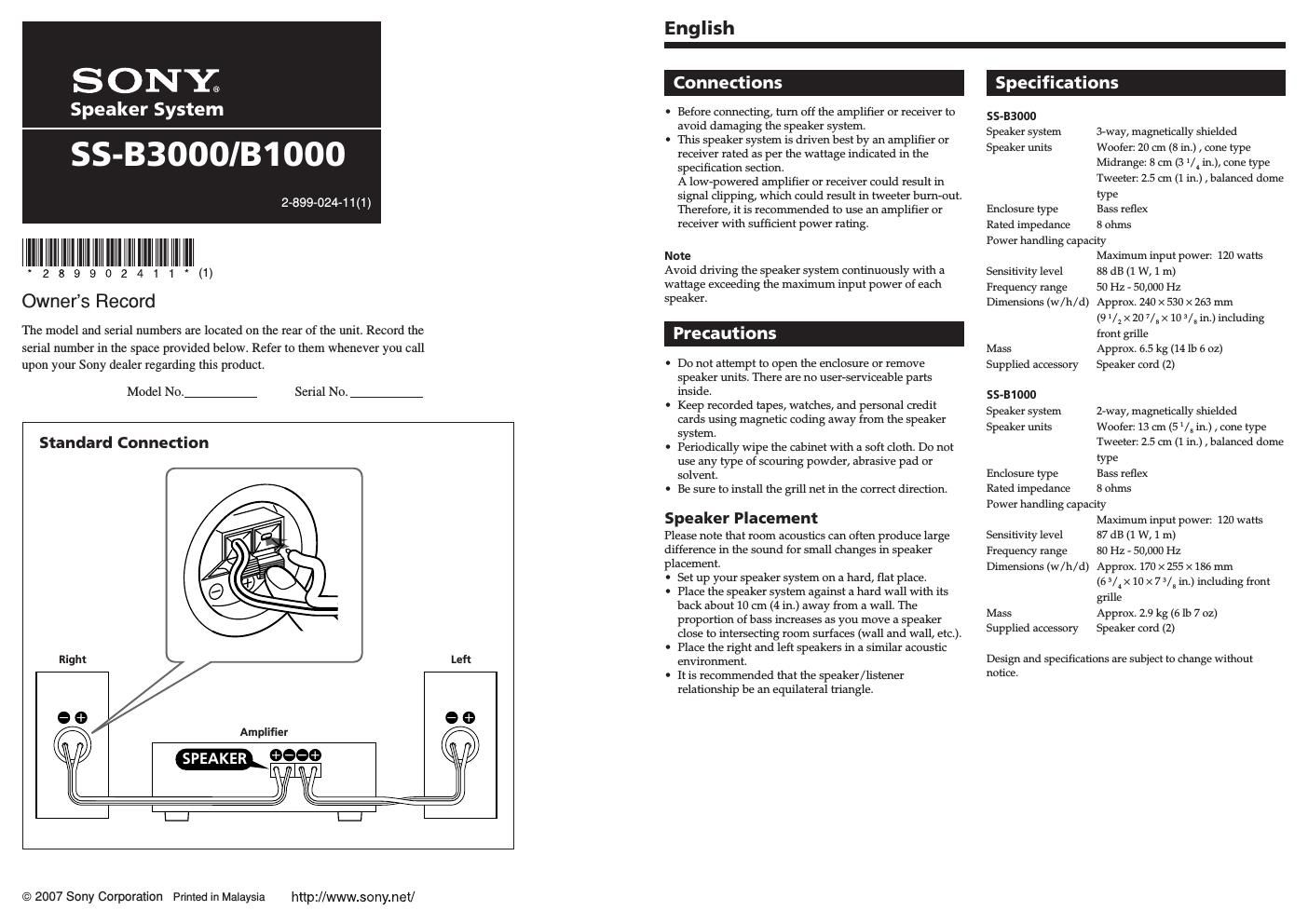

Page 1

SONY

Speaker System

SS-B3000IB1 000

2-899-024-1 1 (1)

8990241

Owners Record

Model No. Serial No.

The model and serial numbers are located on the rear of the unit. Record the
serial number in the space provided below. Refer to them whenever you call
upon your Sony dealer regarding this product.

Standard Connection

Right

-l

6 9
/ Amplifier

@9699
W

Left

69

LEI-El-l

© 2007 Sony Corporation Printed in Malaysia

http://www.sony.net/

English

' Before connecting, turn off the amplifier or receiver to
avoid damaging the speaker system.

- This speaker system is driven best by an amplifier or
receiver rated as per the wattage indicated in the
specification section.

A low-powered amplifier or receiver could result in
signal clipping, which could result in tweeter burnrout.
Therefore, it is recommended to use an amplifier or
receiver with sufficient power rating.

N ote

Avoid driving the speaker system continuously with a
wattage exceeding the maximum input power of each
speaker.

Prec ons

' Do not attempt to open the enclosure or remove
speaker units. There are no userrserviceable parts
inside.

- Keep recorded tapes, watches, and personal credit
cards using magnetic coding away from the speaker
system.

- Periodically wipe the cabinet with a soft cloth. Do not
use any type of scouring powder, abrasive pad or
solvent.

- Be sure to install the grill net in the correct direction.

Speaker Placement

Please note that room acoustics can often produce large

difference in the sound for small changes in speaker

placement.

' Set up your speaker system on a hard, flat place.

- Place the speaker system against a hard wall with its
back about 10 cm (4 in.) away from a wall. The
proportion of bass increases as you move a speaker
close to intersecting room surfaces (wall and wall, etc.).

0 Place the right and left speakers in a similar acoustic
environment.

' It is recommended that the speaker/ listener
relationship be an equilateral triangle.

55-33000

Speaker system 3-way, magnetically shielded

Speaker units Woofer: 20 cm (s in.) , cone type
Midrange: s cm (3 1/4 in), cone type
Tweeter: 2.5 cm (1 in.) , balanced dome
type

Enclosure type Bass retlex

Rated impedance 8 ohms

Power handling capacity

Maximum input power: 120 watts
Sensitivity level 88 dB (1 w, 1 111)
Frequency range 50 Hz - 50,000 Hz
Dimensions (w/h/d) Approx. 240 X 530 x 253 mm
(91/1 X 20 7/5 X 10 3/3 in.) including
front grille
Mass Approx. 6.5 kg (14 lb 5 oz)
Supplied accessory Speaker cord (2)

55-31000

Speaker system 2-way, magnetically shielded

Speaker units Wooten 13 cm (5 1/, in.) , cone type
Tweeter: 2.5 cm (1 in.) , balanced dome
type

Enclosure type Bass retlex

Rated impedance 8 ohms

Power handling capacity

Maximum input power: 120 watts

Sensitivity level 87 dB (1 w, 1 m)

Frequency range 80 Hz - 50,000 Hz

Dimensions (w/h/d) Approx. 170 X 255 X 186 mm
(6 V x 10 x 7 3/5 in.) including front
grille

Mass Approx. 2.9 kg (6 lb 7 oz)

Supplied accessory Speaker cord (2)

Design and specifications are subject to change without
notice.
