Sony ss b 1 s service manual

This is the 2 pages manual for sony ss b 1 s service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
sony ss b 1 s service manual

Extracted text from sony ss b 1 s service manual (Ocr-read)


Page 1

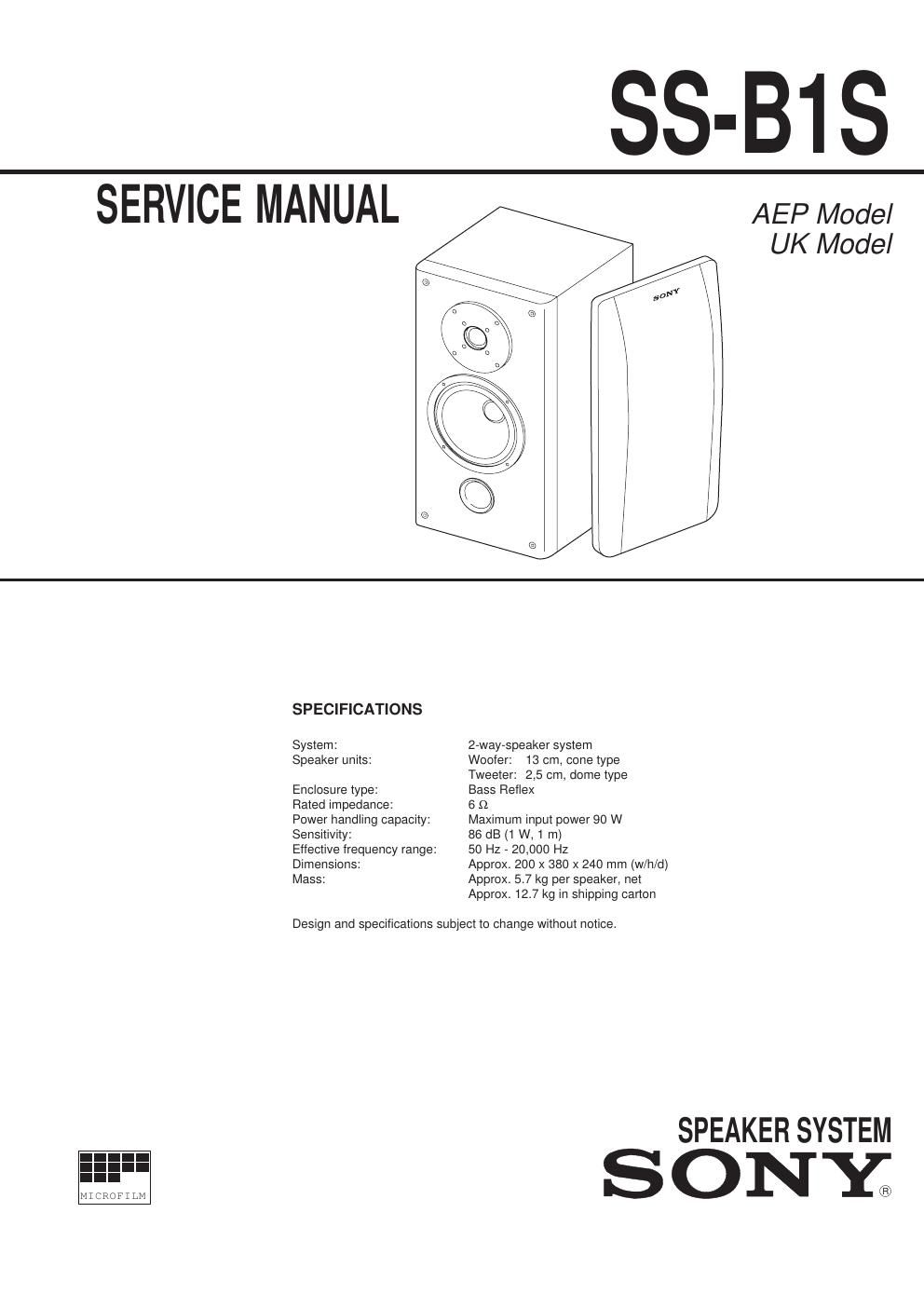

- 2 - 9-959-866-11 NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 1. EXPLODED VIEW AND PARTS LIST Sony Corporation Consumer A&V Products Company Home A&V Division English 94J7557-1 Printed in Germany © 1994.10 Published by Home A&V Div. Quality Engineering Dept. SP1 Ref. No. Part No. Description Remark 1 X-4945-458-1 SPEAKER CABINET ASSY 2 X-4945-459-1 GRILLE FRAME ASSY 3 1-589-686-11 MOUNTED P.C.B. 4 4-961-784-01 SCREW P 4.0 X 25 T15 SP1 1-504-759-11 SPEAKER (13 cm CONE) SP2 1-504-423-11 SPEAKER (2.5 cm DOME) Ref. No. Part No. Description Remark *4-971-114-01 CARTON *4-971-115-01 CUSHION 3-759-791-11 INSTRUCTION MANUAL 1-751-495-11 SPEAKER CORD 2 134 4 4 SP2 SS-B1S
