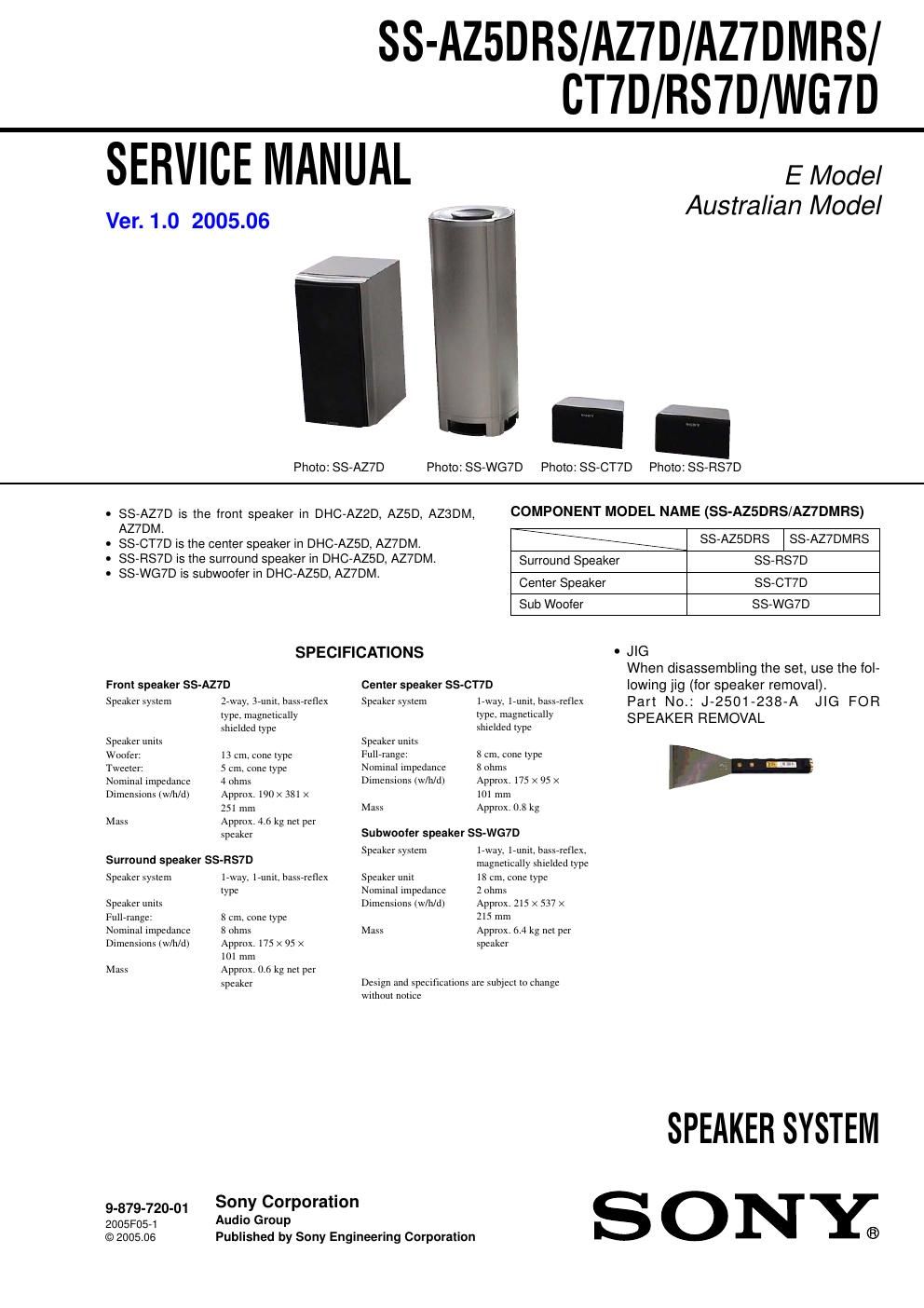

Sony ss az 5 drs service manual
This is the 6 pages manual for sony ss az 5 drs service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss az 5 drs service manual (Ocr-read)
Page 1
2 SS-AZ5DRS/AZ7D/AZ7DMRS/CT7D/RS7D/WG7DSECTION 1 DISASSEMBLY DISASSEMBLY OF SS-WG7D Note: Follow the disassembly procedure in the numerical order given. 1four bosses 5 three bosses 9bottom dish four slits 7 bottom panel 5 three bosses 6 top panel 2 dish panel 3four screws (4 × 25) 4 dish 8four screws (4 × 25) 0 base qd loudspeaker (18cm) qs wire kit qatwo screws (4 × 25)
Page 2
3 SS-AZ5DRS/AZ7D/AZ7DMRS/CT7D/RS7D/WG7D SECTION 2 EXPLODED VIEWS (1) SS-AZ7D/CT7D/RS7D – SS-CT7D/RS7D – – SS-AZ7D – NOTE: -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.-The mechanical parts with no reference number in the exploded views are not supplied.-Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color 1 not supplied not supplied 2 6 5 9 487 56 3 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1A-1091-440-A SS-CT7D (CENTER) 2A-1091-441-A SS-RS7D (SURROUND) 3A-1091-618-A FRAME ASSY, GRILLE 4A-1091-617-A PANEL ASSY, FRONT 54-874-614-82 SCREW61-826-068-11 LOUDSPEAKER (13cm) 71-826-067-11 LOUDSPEAKER (5cm) 84-986-971-12 SCREW (3.5) 94-912-253-01 CATCHER
