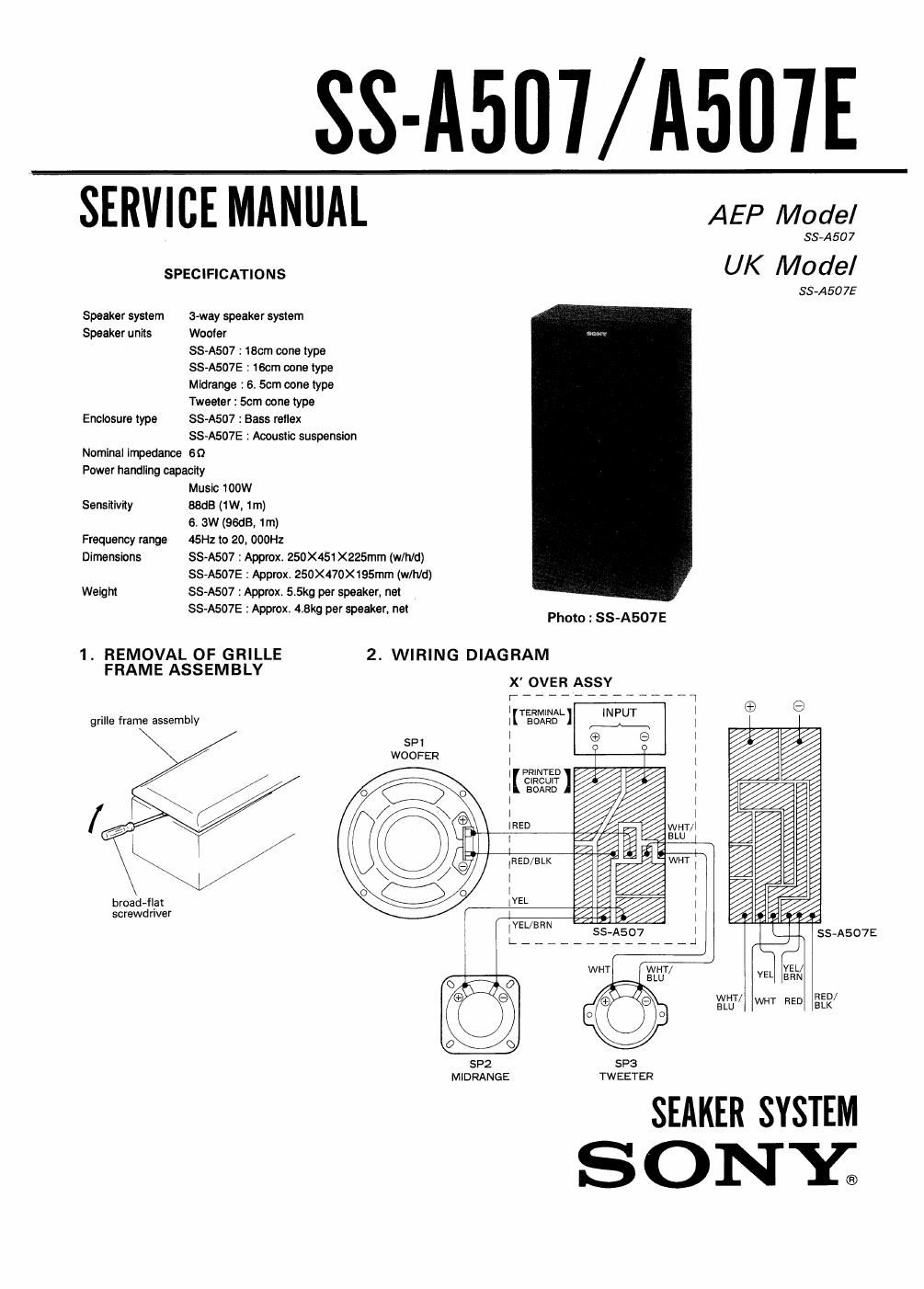

SS-A507/A507E

SERVICE MANUAL AEP Model

SS-A507
SPECIFICATIONS UK Model
SS-A507E
Speaker system 3-way speaker system
Speaker units Wooter
SSvA507 : Ich cone type
SS-A507E : 16cm cone type
Midrange : 6. 50m cone type
Tweeter : Scm cone type
Enclosure type ss-A507 : Bass reflex
SS-A507E : Acoustic suspension
Nominal inpedance 60
Power handling capacity
Music 100W
Sensitivity BBdB (1W, 1m)
6. aw (seas, 1m)
Frequency range 45Hz to 20, 000Hz
Dimensions SS-A507 : Approx. 250x451X225mm (w/h/d)
SS-A507E : Approx, 250x470X195mm (w/h/d)
Weight SS-A507 : Approx. 5.5kg per speaker, net
SS-A507E . Approx. 4.8m per speaker, net Photo : S 8- A5 07E
1. REMOVAL OF GRILLE 2. WIRING DIAGRAM
FRAME ASSEM BLY
X OVER ASSY
F _____________ T
_ IKTERMINAL INPUT @ 9
gnlle frame assembly I BOARD
SP1 I E9 9 '/ yi
WOOFER

I
I
I
I
I
IPRINTED I
IIQSﬁSJI/ // I
I
I
I

I
men
I E L
l

lRED/BLK E

W a;

IYEL/BRN
I. SS-A507E
I _______

broad»fl_at
screwdnver

SP2 SP3
MIDRANGE TWEETER

SEAKER SYSTEM
S ONYQ

Page 2

SS-A507/A507E

3. EXPLODED VIEW AND PARTS LIST

NOTE:
- The mechanical parts with no refelenoe
number in the exploded views are not

supplied.
4
1
SP 7
& Part No. Denim NJ: Part No. Description
1 T-8150-517-A FRAME ASSY, GRILLE (SS-ASOWE) SP2 T-81 10-562-1 SPEAKER UNIT (MIDRANGE : 6. 5cm)
1 T-8150-521-A FRAME ASSY, GRILLE (SS-A507) SP3 T-8110-563-1 SPEAKER UNIT (TWEETER : 5cm)
2 T-8150-573-1 SCREW (+P4.0><15), TAPPmG
3 T-8150-525-A BOX ASSY, SPEAKER (SS-A507)
3 T-SISl-BIZ-I BOX ASSY. SPEAKER (SS-A507E)
4 T-8150-387-A X'OVER ASSY (SS-A507E) ACCESSORY & PACKING MATERIAL
4 T-8150-53LA XOVER ASSY (SS>A507)
SP1 T-8110-476~1 SPEAKER UNIT (WOOFER : 16cm) T-8151-746-1 MANUAL, INSTRUCTION (SS-ASO7E)
(SS-A5075) T-8151-769-l MANUAL, INSTRUCIION (SS-A507)
SP1 T-SI 10-558-1 SPEAKER UNIT (WOOFER : 180m) T-8110-520-1 CORD. SPEAKER (SS-ASOOE)
(SS-A507) T-81 10-521-1 CORD. SPEAKER (SS-A507)
Engﬁsh
920 1 863 - 1

Sony Corporation Printed in Japan
9-957-057-1 1 Audio Group @1992 . 3
2 Published by Customer Relations and Service Group
