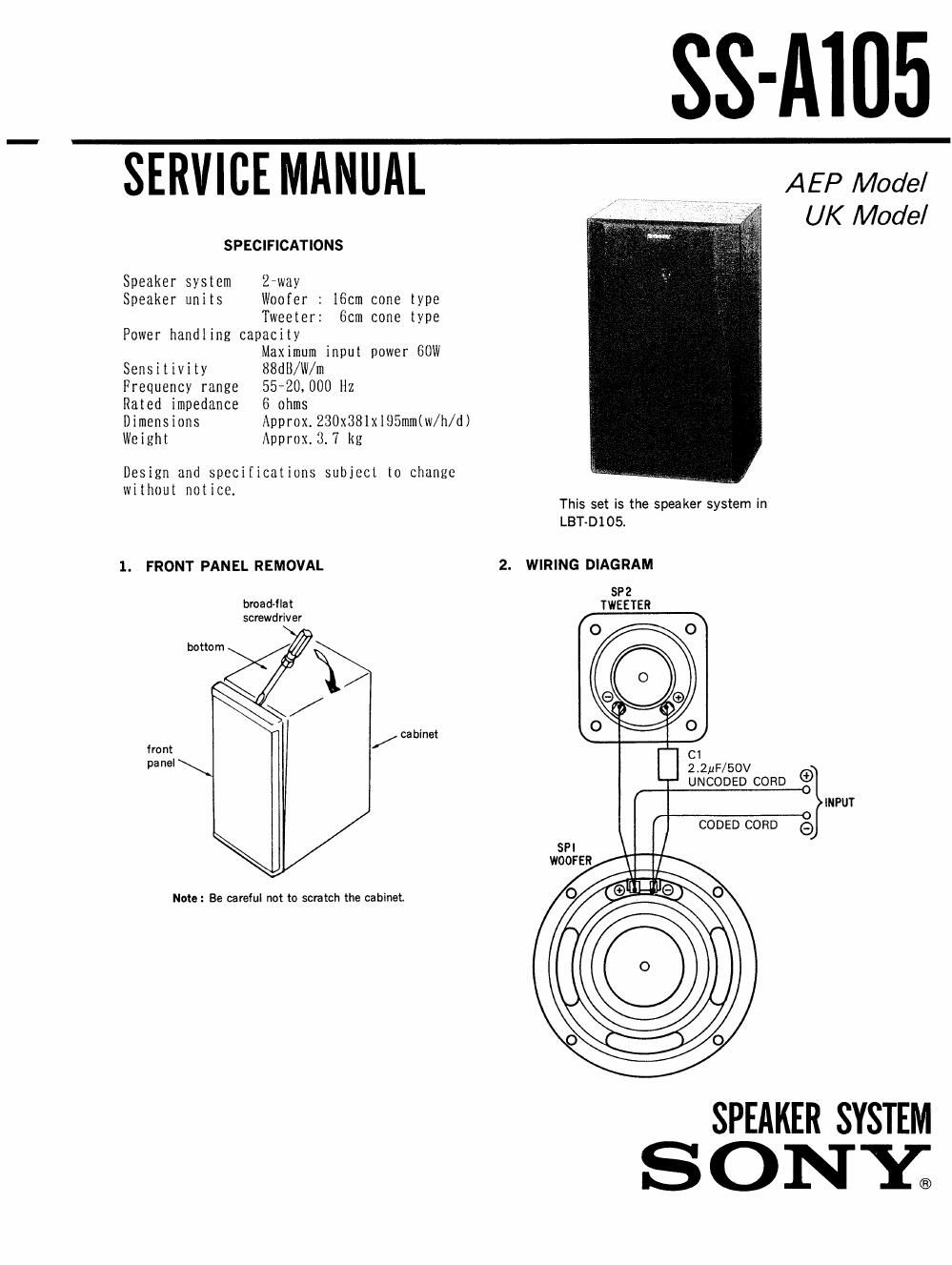

SS-AIDS
SERVICE MANUAL , : MM
UK Model
SPECIFICATIONS
Speaker system 2-way
Speaker units Woofer : 16cm cone type
Tweeter: 6cm cone type
Power handling capacity
Maximum input power 60W
Sensitivity 88dB/W/m
Frequency range 55-20,000 ttz
Rated impedance 6 0th
Dimensions Approx. 230x381x195mm(w/h/d)
Weight Approx. 3.7 kg
Design and specifications subject to change
without not ice.
This set is the speaker system in
LET-0105i
1. FRONT PANEL REMOVAL 2. WIRING DIAGRAM
SP2
broad-flat IVIEETER
screwdriver
bottom
\/
cabinet
front /
panel
2,211F/50V ®
UNCODED CORD
INPUT
---0
CODED CORD 9
SP I
WOOFER
Note: Be carafu| no! to scratch the cabinet
SPEAKER SYSTEM
