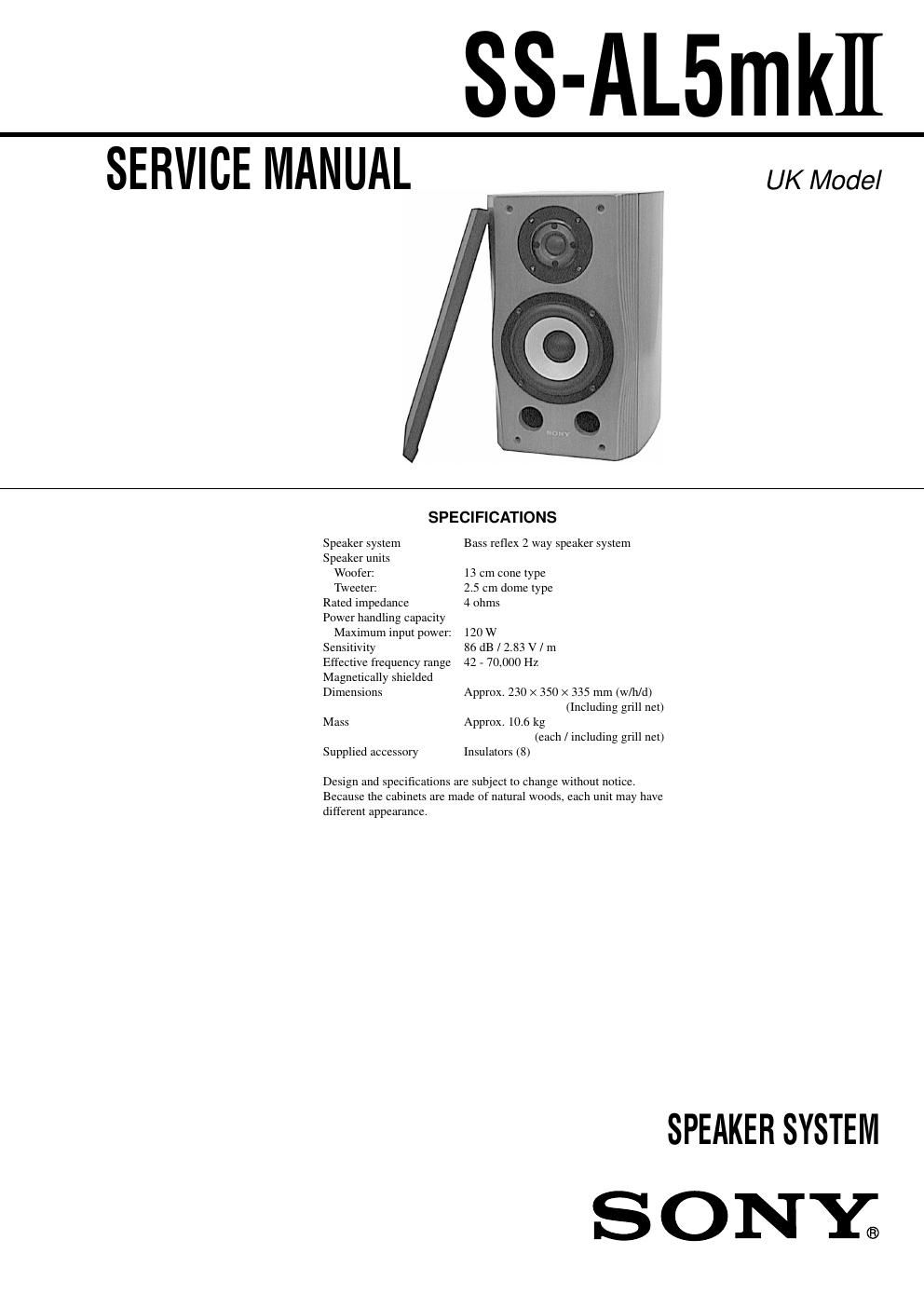

Sony ss al 5 mk2 service manual

Page 1

2 Sony Corporation Audio Entertainment Group 9-922-994-11 2000F1611-1D Printed in Japan ©2000.6 Published by HA Quality Assurance Dept. EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 X-4950-821-1 FRAME ASSY, GRILLE *2 4-963-075-01 CATCHER 3 4-215-625-01 SCREW(M4X35), TORQUES (T20) 4 4-215-624-01 SCREW(4X30), TORQUES (T20) 5 1-761-173-11 MOUNTED PC BOARD (WO) 6 1-761-120-11 MOUNTED PC BOARD (NETWORK) *7 A-4411-313-A CABINET ASSY, SPEAKER 8 4-874-614-11 SCREW(4) (3.5X14), TAPPING 9 1-694-503-11 TERMINAL, SPEAKERSP1 1-529-145-11 SPEAKER (13cm)(WOOFER) SP2 1-529-146-11 SPEAKER (2.5cm)(TWEETER) ACCESSORIES & PACKING MATERIALS ******************************* 3-864-548-11 MANUAL, INSTRUCTION (ENGLISH) X-4951-015-1 STABILIZER ASSY NOTE: - -XX, -X mean standardized parts, so they may have some differences from the original one. - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.- The mechanical parts with no reference number in the exploded views are not supplied. 8 7 6 8 2 2 1 3 5 8 49 SP1 SP2 - Use the hexagonal screwdriver T20 (7-700-001-42) to remove the screws Ref. 3 and 4.
