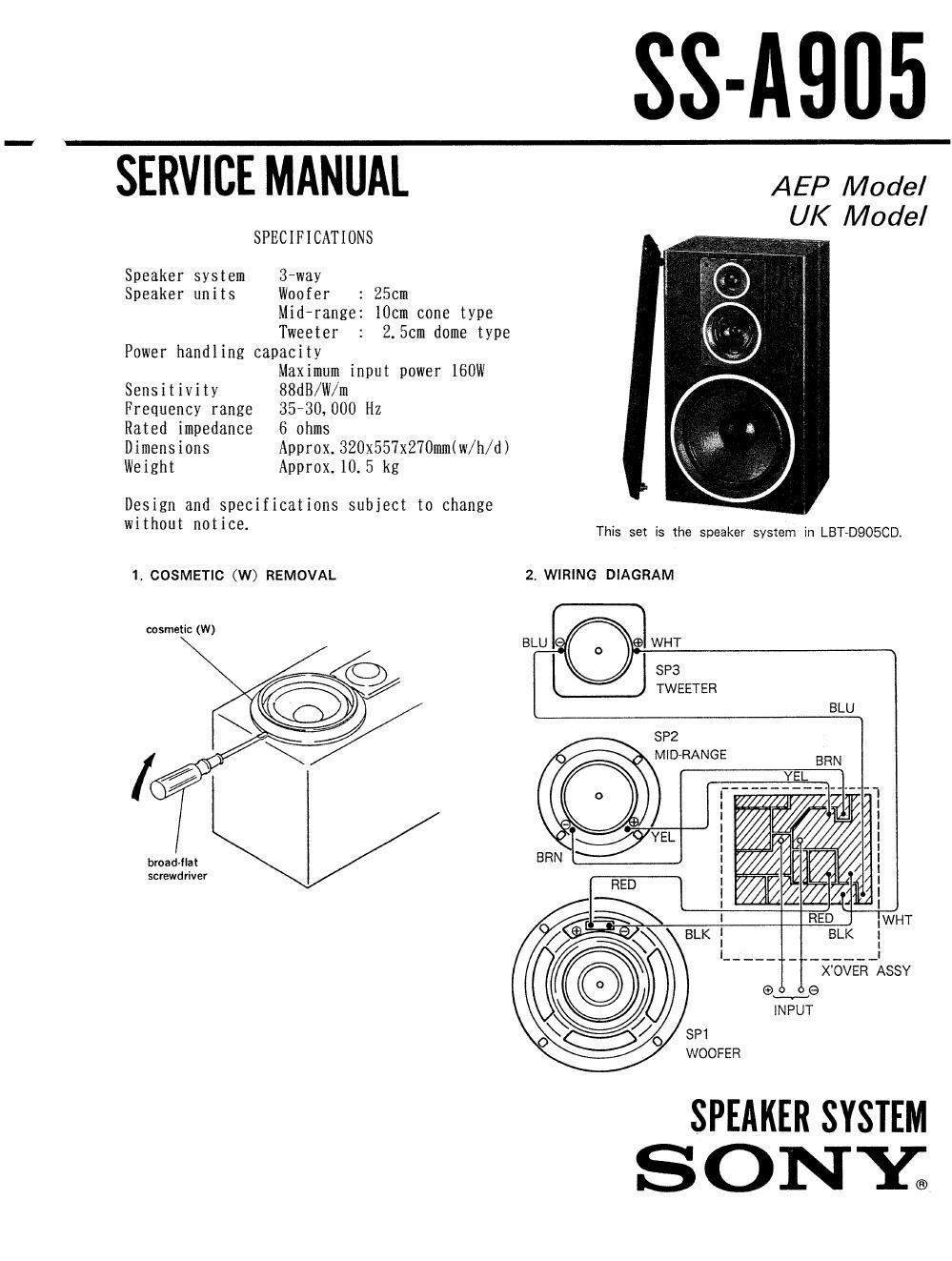

Sony ss a 905 service manual
This is the 2 pages manual for sony ss a 905 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss a 905 service manual (Ocr-read)
Page 2
SS-A905
3. EXPLODED VIEW AND PARTS LIST
NOTE:
0 Items marked * are not stocked since
They are seldom required for routine
service. Some delay should be anti-
cipated when ordering these items.
No. Part No
1 T-8150-400~A
2 T-8150i443-A
3 T8151~275-I
4 T-8150-397-A
5 T-8151ifl42-l
6 Ti8150-573-1
7 Ti8151-453-1
8 Ti8150-387-1
9956-461-11
Description
FRAME ASSY, GRILLE
COSMETIC (TW) ASSY
COSMETIC (W)
SPEAKER BOX ASSY
TERMINAL BOARD
TAPPINC SCREW +P 4X15
BRASS WOOD SCREW +P 4X50
WASHER HARD PAPER
Sony Corporation
SP3
Audio Group
_2_
ELECTRICAL PARTS
Part No
T-8150~445*A X'OVER ASSY
TA8110v479~1
T-8110-475-1
T-8110-477-1
WOOFER
MIDiRANGE
TWEETER
T-8151-354~1 MANUAL
Description
ACCESSORY & PACKING MATERIAL
INSTRUCTION
Engfish
91 E02594
Primed In Japan
©19915
Published by Customer Relations and Service Group
