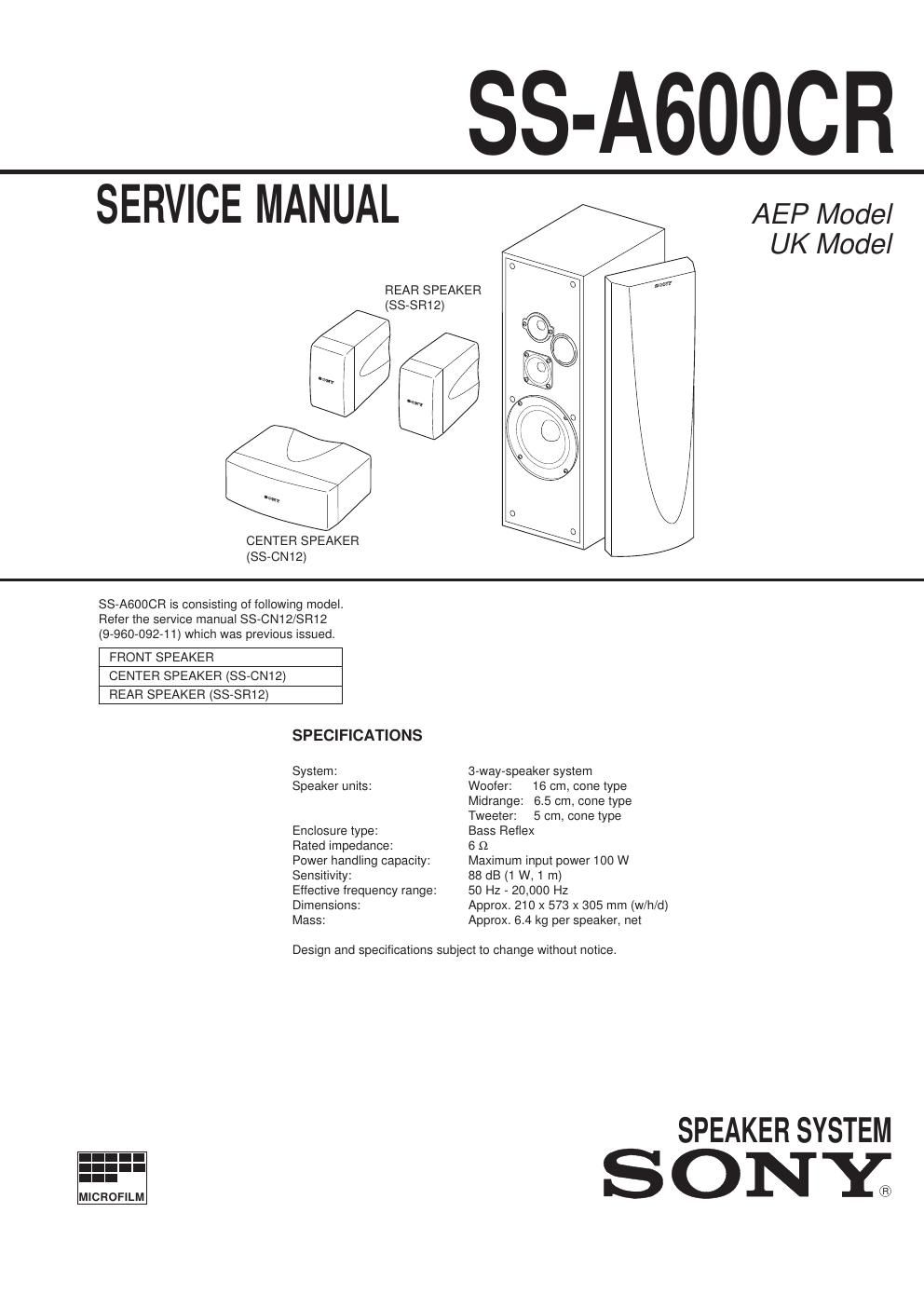

- 2 - SS-A600CR 1. EXPLODED VIEW AND PARTS LIST Sony Corporation Consumer A&V Products Company Home A&V Division 9-960-281-11 English 95E7562-1 Printed in Germany © 1995.5 Published by Home A&V Div. Quality Engineering Dept. Ref. No. Part No. Description Remark 1 X-4946-045-1 SPEAKER CABINET ASSY 2 X-4946-044-1 GRILLE FRAME ASSY 3 1-751-750-11 INTERCONNECTING CORD WITH CAPACITORS 4 1-537-529-11 TERMINAL BOARD 5 4-960-363-01 SCREW +B 3.5 X 16 SP1 1-504-834-11 SPEAKER (16 cm) (Woofer) SP2 1-504-375-11 SPEAKER (6.5 cm) (Mid range) SP3 1-504-378-11 SPEAKER (5 cm) (Tweeter) Ref. No. Part No. Description Remark 3-798-286-11 INSTRUCTION MANUAL *4-972-720-01 INDIVIDUAL CARTON *4-972-721-01 CUSHION (T1) *4-972-722-01 CUSHION (T2) *4-974-793-01 CUSHION (BF) *4-974-794-01 CUSHION (R) X-4945-925-1 ACCESSORY ASSY NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 4 SP1 SP2SP3 5 55 21 3
