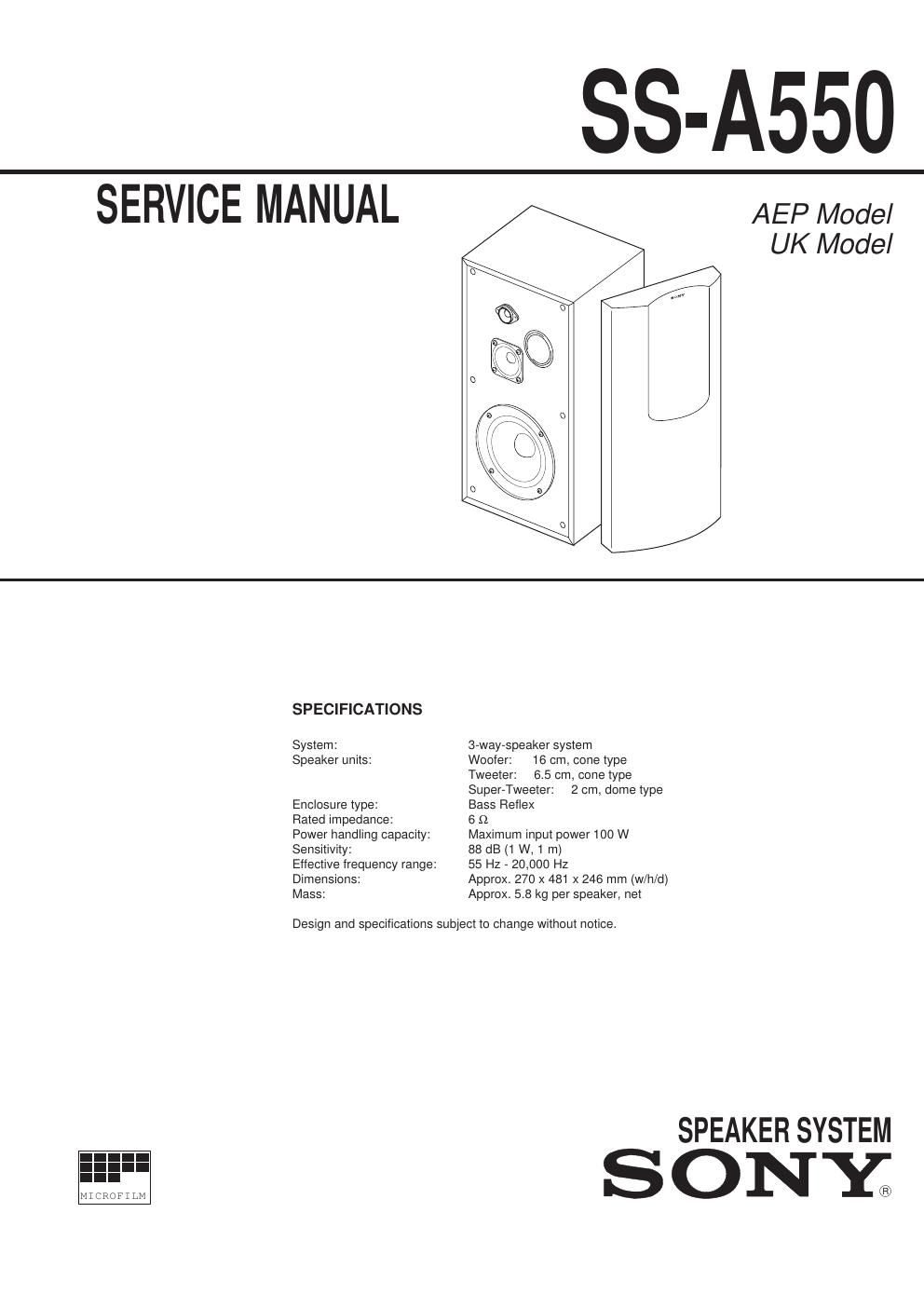

- 2 - SS-A550 9-960-086-11 1. EXPLODED VIEW AND PARTS LIST Sony Corporation Consumer A&V Products Company Home A&V Division English 95B7514-1 Printed in Germany © 1995.2 Published by Home A&V Div. Quality Engineering Dept. Ref. No. Part No. Description Remark 1 X-4945-843-1 SPEAKER CABINET ASSY 2 X-4946-009-1 GRILLE FRAME ASSY 3 1-765-416-11 INTERCONNECTING CORD WITH CAPACITORS 4 4-960-363-01 SCREW +B 3.5 X 16 SP1 1-504-377-11 SPEAKER (Woofer) SP2 1-504-375-11 SPEAKER (Tweeter) SP3 1-504-376-11 SPEAKER (Super-Tweeter) Ref. No. Part No. Description Remark *4-972-717-01 CARTON *4-972-712-01 CUSHION 3-798-285-11 INSTRUCTION MANUAL NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 1 SP3 SP2 SP1 4 4 2 3
