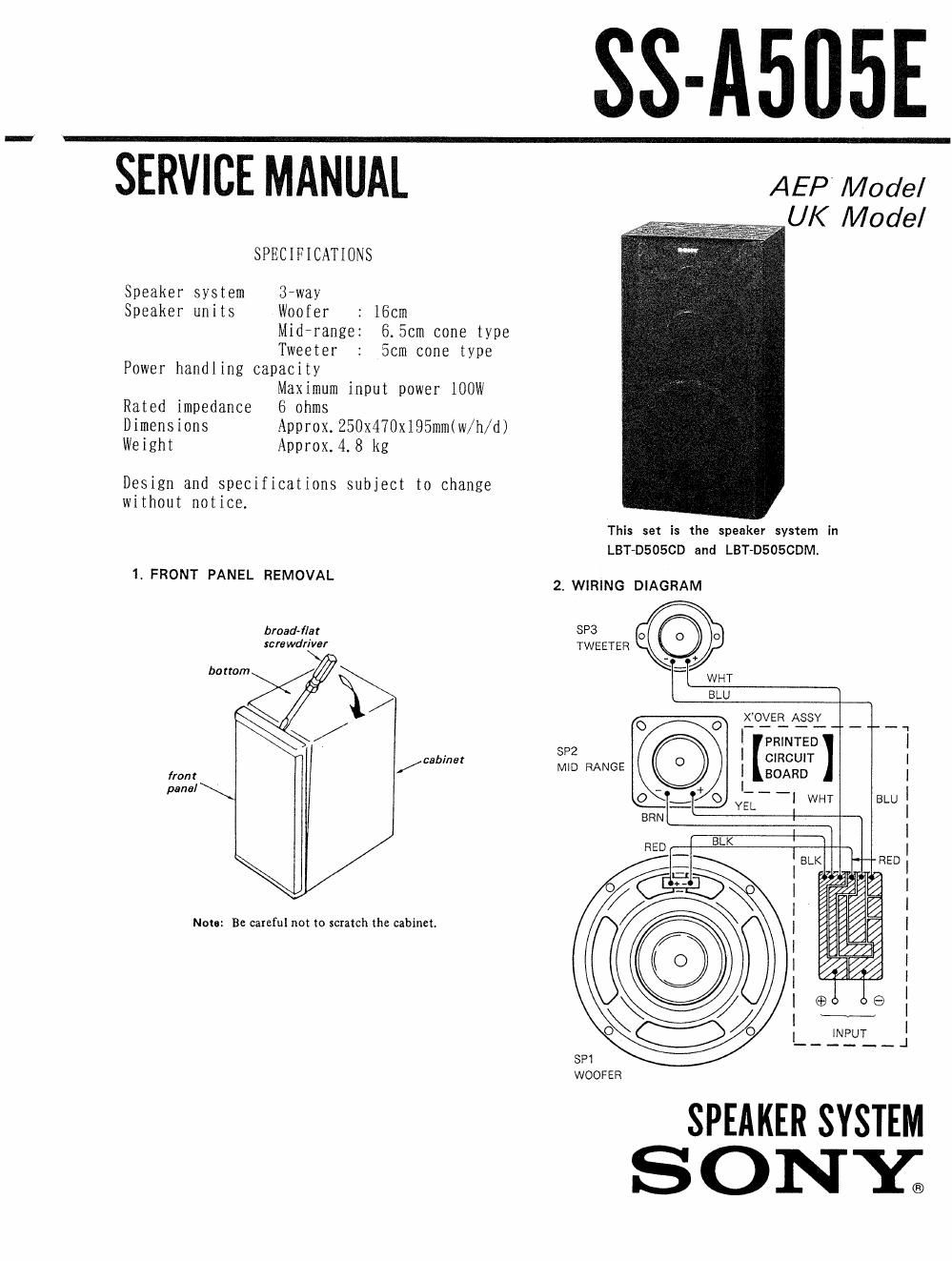

Page 1
SERVICE MANUAL
SPECIFICATIONS
Speaker system 3*way
Speaker units Woofer 2 16cm
Mid-range: 6.50m cone type
Tweeter 5cm cone type
Power handling capacity
Maximum input power 100W
6 ohms
Approx.250x470x195mm(w/h/d)
Approx.4.8 kg
Rated impedance
Dimensions
Weight
Design and specifications subject to change
without notice
1. FRONT PANEL REMOVAL
broacH/a r
screwdriver
120 Item
X \/
\ /
cabinet
Iran I /
panel \
Nou: Be careful not to scratch the cabinet,
SS-A505E
AEP' Model
UK Model
This set is the speaker system in
LBT-DSOSCD and LBT-DSOSCDM.
2. WIRING DIAGRAM
SP3 /-\>
TWEETER .__
_ +
_ WHT
BLU
X'OVER Ass: _
SP2
Mm RANGE
L____...___..__._____.____J
WOOFER
SPEAKER SYSTEM
SONSCS
Page 2
SS-A505E
3. EXPLODED VIEW AND PARTS LIST
9 The mechanical parts with no reference
number in the exploded views are not
supplied.
901
1/
No. Part No. Description ELECTRICAL PARTS
I T781504394-A PANEL ASSY, FRONT No. Part No. Description
2 T-8151-312-1 SPEAKER BOX 901 T8150-387-A X'OVER ASSY
T-8110~476*1 WOOFER
SP2 T-8110~473*1 MID RANGE
SP3 T-8110-474-1 TWEETER
3 I TA8150*5731 TAPPING SCREW +P 4X15
ACCESSORY & PACKING MATERIAL
T-8151-352-1 MANUAL, INSTRUCTION
U:
"U
,_4
_ English
Sony Corporation 91002594
, Printed in Japan
9-9567436-11 Audio Group ©19914
Published by Customer Relations and Service Group
_2_
