Sony ss a 400 service manual

This is the 2 pages manual for sony ss a 400 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 2
sony ss a 400 service manual

Extracted text from sony ss a 400 service manual (Ocr-read)

Page 1

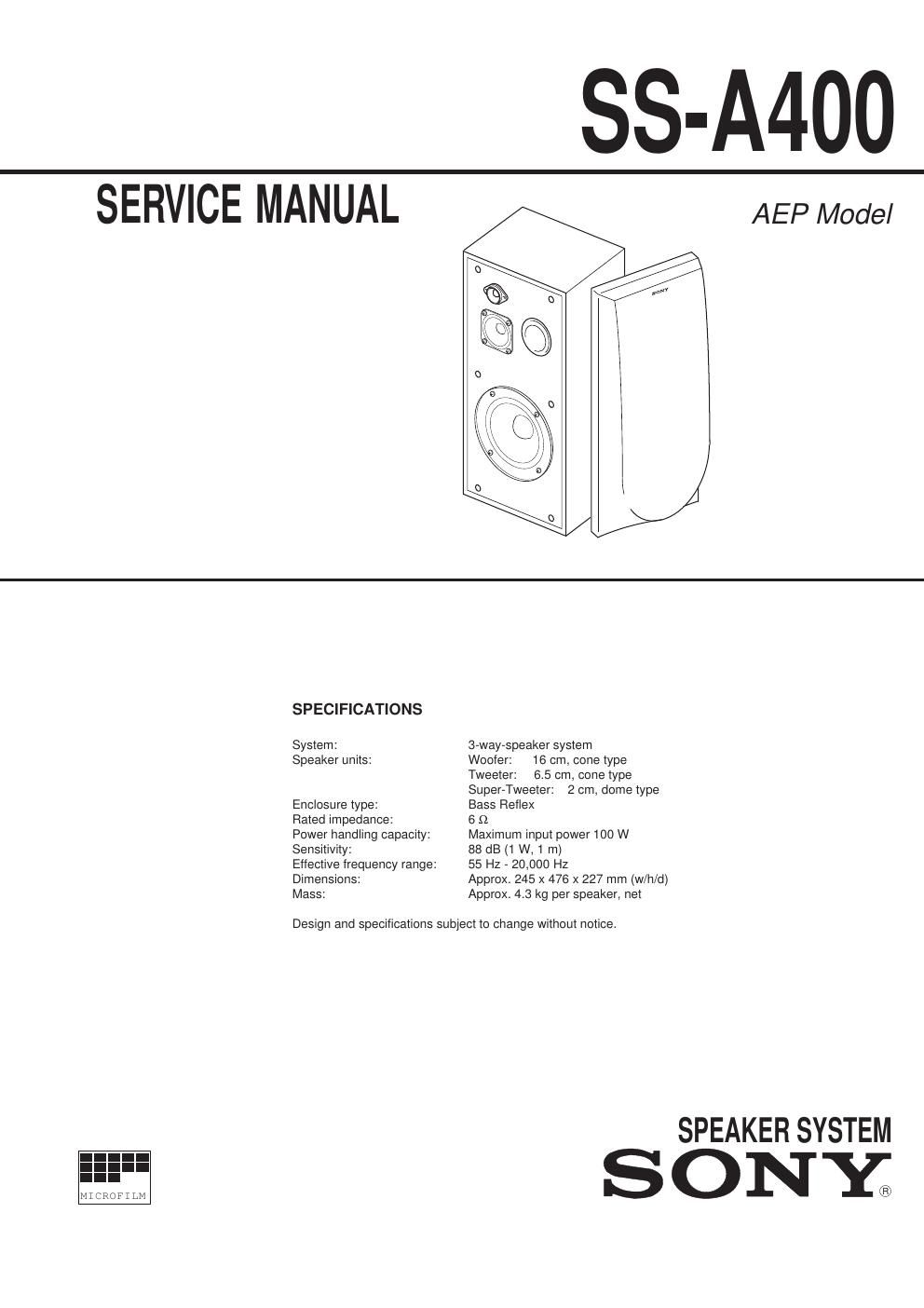

- 2 - SS-A400 9-960-053-11 1. EXPLODED VIEW AND PARTS LIST Sony Corporation Consumer A&V Products Company Home A&V Division English 95A7551-1 Printed in Germany © 1995.1 Published by Home A&V Div. Quality Engineering Dept. Ref. No. Part No. Description Remark 1 X-4945-839-1 SPEAKER CABINET ASSY 2 X-4945-840-1 GRILLE FRAME ASSY 3 1-751-147-11 SPEAKER CORD WITH CAPACITORS 4 4-960-363-01 SCREW +B 3.5 X 16 SP1 1-504-377-11 SPEAKER (Woofer) SP2 1-504-375-11 SPEAKER (Tweeter) SP3 1-504-376-11 SPEAKER (Super-Tweeter) Ref. No. Part No. Description Remark *4-972-701-01 CARTON *4-972-702-01 CUSHION (TF) *4-972-703-01 CUSHION (BF) *4-972-704-01 CUSHION (R) 3-798-283-11 INSTRUCTION MANUAL NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 3 4 4 SP3 SP2 SP1 21
