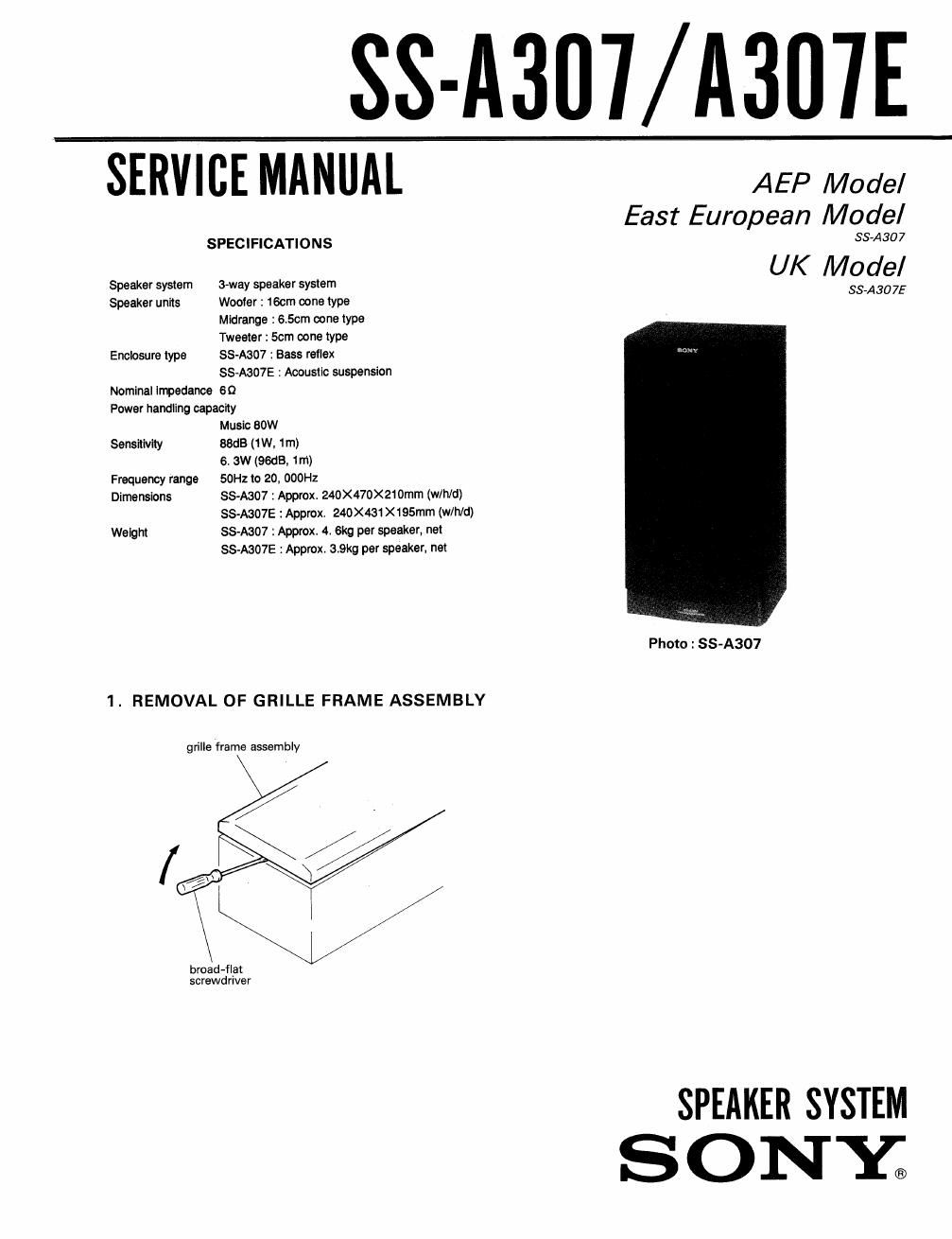

Page 1

SS-A307/A307E ,

SERVICE MANUAL AEP Model

East European Model

SPECIFICATIONS 53/4307

UK Model

S aker s stern 3-wa s eakers s1em
pe y y p y SSA307E

Speaker unlts Woofer : 16cm oone type
Midrange : 650m cone type
Tweeter : 50m cone type
Enclosure type SS-A307 : Bass rellex
SS~A307E : Acouslio suspension
Nominal lnrpedanco 60
Paws! handling capacity
Music 80W
Sensitivity BBdB (1 W, 1m)
6. 3W (9MB, 1m)
Frequency range SOHZ to 20, OOOHz

Dimensions SS-A307 : Approx. 240X470X210mm (w/h/d)
SS-A307E :Appmx. 240X4S1X195mm (w/h/d)
Welghl SS-A307 : Approx. 4. 6kg per speaker, net

SS-A807E : Approx 39kg pev speaker, net

Photo: SS-A307

1. REMOVAL OF GRILLE FRAME ASSEMBLY

grille frame assembly

broad-flat
screwdriver

SPEAKER SYSTEM
S ONE

Page 2

SS-A307 A307E

2. EXPLODED VIEW

NOTE:
' The mechanical parts with no reference
number in the exploded views are not
supplied.

1
SS-A307
3. WIRING DIAGRM
$5-A307 ss-A307E
a @r - 1 <9
spa i SP3 .
TWEETER .1 TWEETER '
SP2
MIDi'ZiIGE MIDRANGE

SP 1 SP1
WOOFER WOOFER
(*3
e } i N P UT
4 . PARTS LIST
_N_o; Part No. Description N_o. Part No. Descrigtion
1 T-SISO-SIGA FRAME ASSY, GRILLE (SS-A307E) C1 18110-2534 CAPACITOR (2. 2 p F) (SS-A307)
1 T»8150-520-A FRAME ASSY, GRILLE (SS-A307) C2 T-8110-253-1 CAPACITOR (2. 2 ,u F) (SS-A307)
2 T-8150-573-1 SCREW (+P4. 0 X 15), TAPPING C3 T-8110-568-1 CAPACITOR (2. 7 p F) (SS-A307E)
(SS-A307E) C4 T-8110-372-1 CAPACITOR (1. 0 p F) (SS-A307E)
2 T-8151-817-1 SCREW (+BS.5><16), TAPPING
(SS-A307) SP1 T-8110-557-l SPEAIGER UNIT (WOOFER : Iécm)
3 T-8150A524-A BOX ASSY, SPEAKER (SS-A307) SP2 T-8110<562-1 SPEAKER UNIT (MIDRANGE : 6. 56m)

SP3 T-8110~563-1 SPEAKEI UNIT (TWEETER 1 Scm)
3 T-8151-730-1 BOX ASSY, SPEAKER (SS-A307E)
T-8151-665-1 SPACER (SS-A307) ACCESSORY & PACKING MATERIAL
5 T-8150-530-A WIRE KIT ASSY (SSvA307)
T-8151-745-1 MANUAL, INSTRUCTION (SS-A307E)
6 T-8110-520-1 CORD, SPEAKER (SS-A307E) T-8151-768-1 MANUAL, INSTRUCTION (SS-A307)
Engﬁsh

_ 92C1863-1
Sony Corporation Printed in Japan
