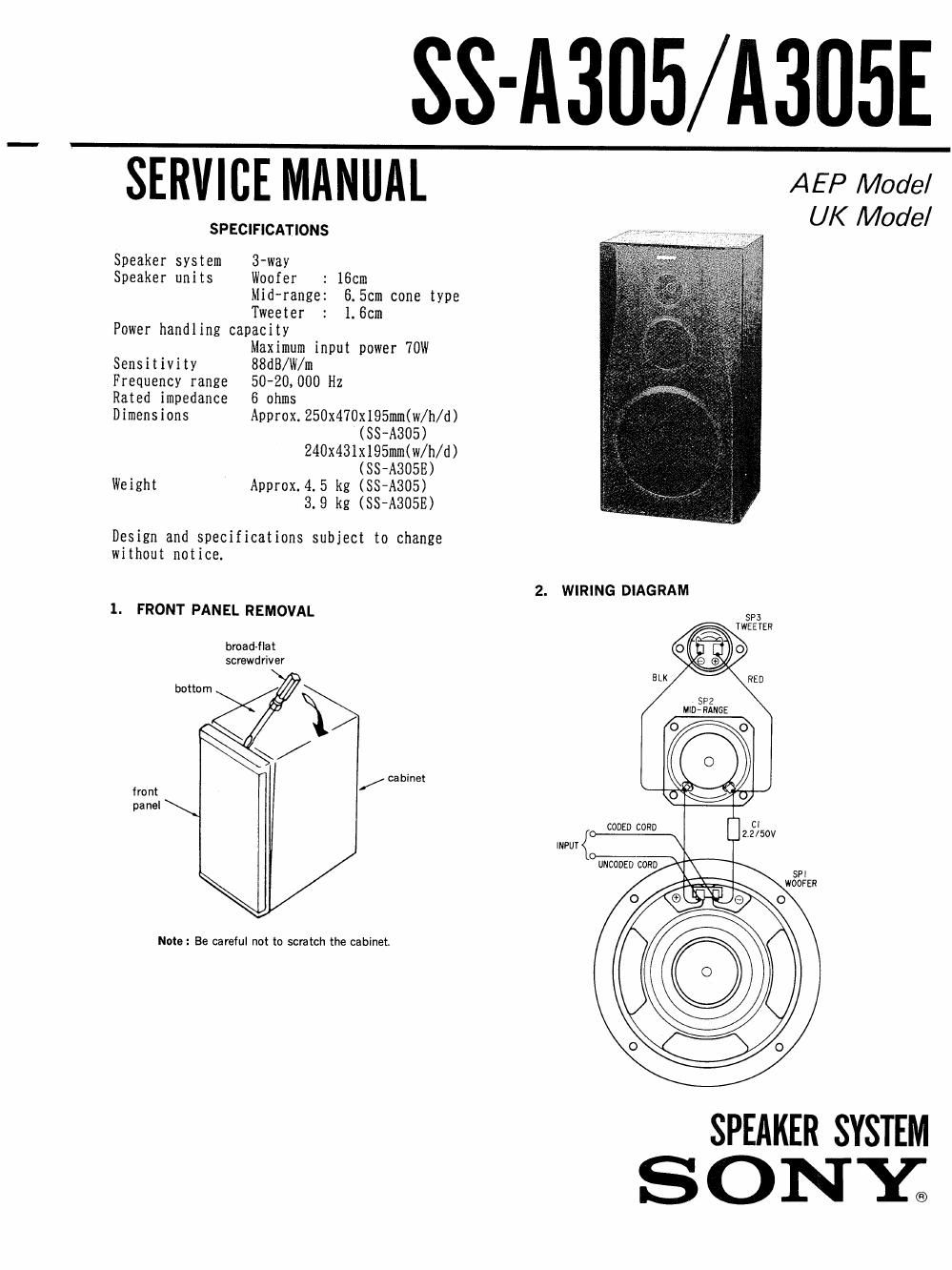

S-A305/A305E
SERVICE MANUAL
SPECIFICATIONS
Speaker system 3~way
Speaker units Woofer : 16cm
Mid-range: 6.50m cone type
Tweeter : 1.6cm
Power handling capacity
Maximum input power 70W
Sensitivity 88dB/W/m
Frequency range 50-20, 000 Hz
Rated impedance 6 ohms
Dimensions Approx. 250x470x195mm(w/h/d)
(SS-A305)
240x431x195mm(w/h/d)
(33 A3055)
Weight Approx. 5kg (88- A305)
9kg (SS- A305E)
Design and specifications subject to change
without notice.
1. FRONT PANEL REMOVAL
broad-flat
screwdriver
bottomg/ \/
\ /
/ cabinet
iront
panel
Note: Be careful not to scratch the cabinet.
AE P Model
UK Mode/
2. WIRING DIAGRAM
CI
CODED CORD [122/50V
0-
UNCODED CORD
INPUY
SPEAKER 8Y32M
SONY
Page 2
SS-A305/ A305 E
3. EXPLODED VIEW AND PARTS LIST
Note:
0 The mechanical parts with no reference
number in the exploded views are not
supplied,
S$A305
No. Part No. Description ELECTRICAL PARTS
1 T-8150-392-A PANEL ASSY, FRONT (A305) No. Part No. Description
T-8150-393-A PANEL ASSY, FRONT (A3053)
901 T~8150-407-A WIRE KIT ASSY (A305)
2 T-8151-309-1 SPEAKER BOX (A305) T-8110-520-1 CORD, SPEAKER (A305E)
T-8151-310-1 SPEAKER BOX (A3055)
C l T-8110-253-1 CAP 2.2LtF 50V
3 T-8150-573-1 TAPPING SCREW +P 4X15 SP1 T-8110-420-1 WOOFER
SP2 T8110-473-1 MID RANGE
SP3 1-544-135-21 TWEETER
ACCESSORY & PACKING MATERIAL
T-8151-349-1 MANUAL, INSTRUCTION
(A305)
T-8151-350-1 MANUAL, INSTRUCTION
(A3055)
English
. 91004584
Sony Corporatlon Printed in Japan
9-956-423-1 1 Audio Group © 1991.4
_2_ Publlshed by Customer Relations and Service Group
