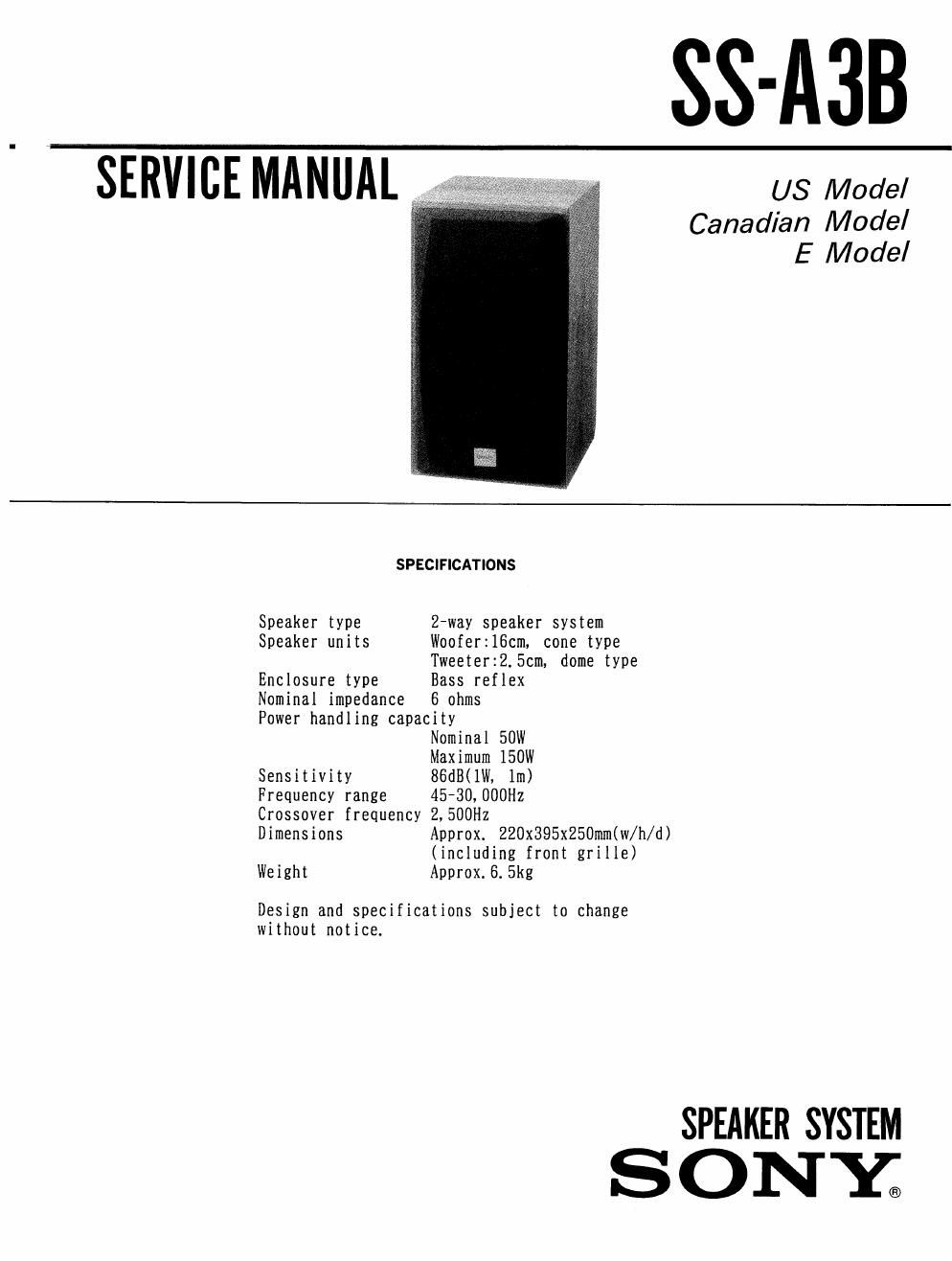

SS-II3B
SERVICE MANUAL
US Model
Canadian Model
E Model
SPECIFICATIONS
Speaker type 2-way speaker system
Speaker units Wooferzlficm, cone type
Tweeter:2.5cm, dome type
Enclosure type Bass reflex
Nominal impedance 6 ohms
Power handling capacity
Nominal 50W
Maximum 150W
Sensitivity 86dB(lW, 1m)
Frequency range 45-30,000Hz
Crossover frequency 2,500Hz
Dimensions Approx. 220x395x250mm(w/h/d)
(including front grille)
Weight Approx. 6. 5kg
Design and specifications subject to change
without notice
SPEAKER SYSTEM
S ON Y;
Page 2
SS-A3 B
1. GRILLE FRAME ASSY REMOVAL 2. NETWORK BOARD REMOVAL
adhesive tape
griIIe frame assy
adhesive ta pe
broad-flat
screwdriver network board
speaker cabinet assy
Note: Put clam here not to scraich the speaker cabinet. adhesive tape
bro ad~1lat
screwdriver
3. WIRING DIAGRAM
IEEIRWSRKJ
