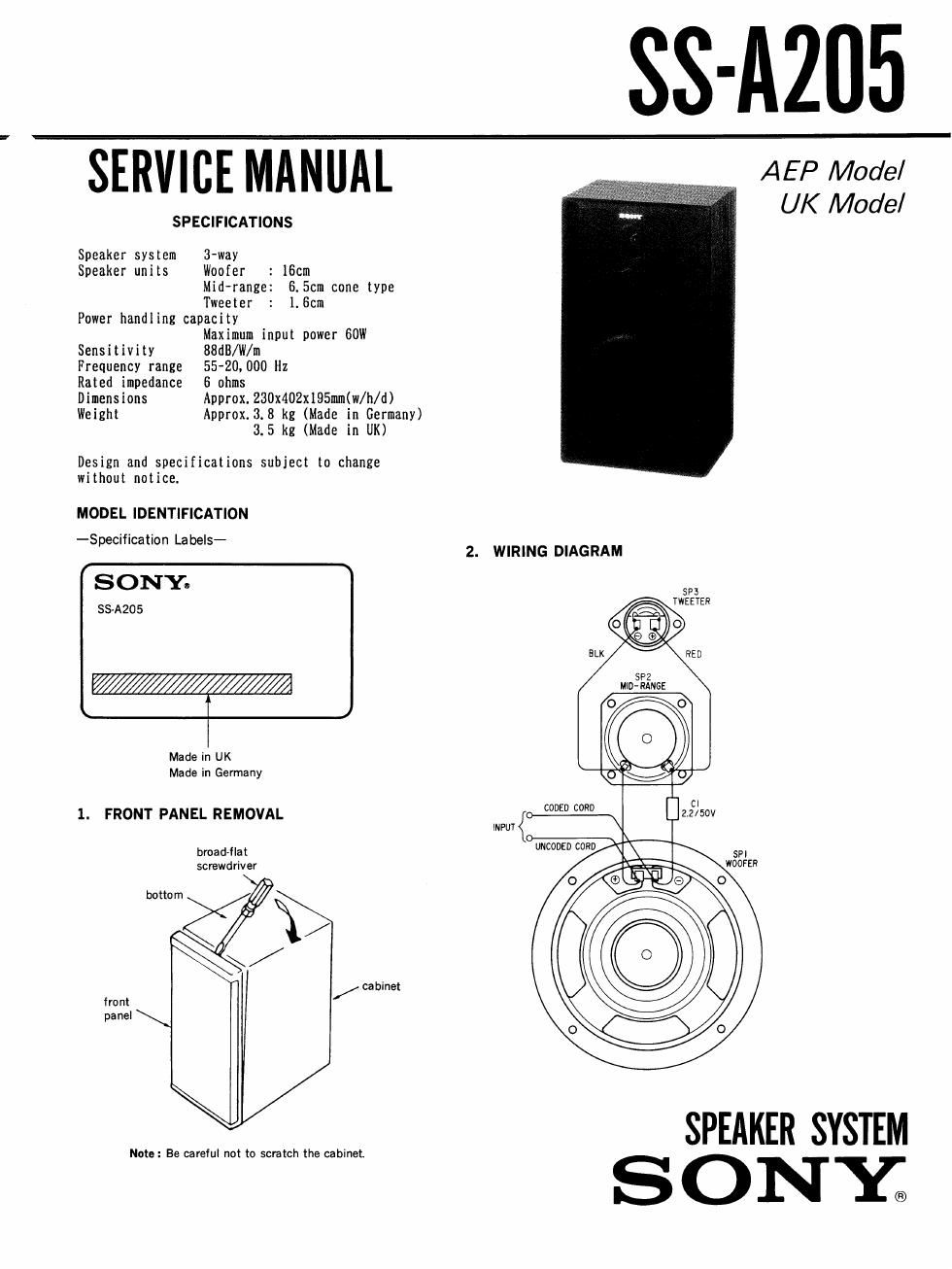

SS-AZUS
SERVICE MANUAL ,, AEP Mode/
UK Model
SPECIFICATIONS
Speaker system 3-way
Speaker units Woofer : 16cm
Mid-range: 6. Son cone type
Tweeter : 1.6cm
Power handling capacity
Maximum input power 60W
Sensitivity 88dB/W/m
Frequency range 55-20,000 Hz
Rated impedance 6 ohms
Dimensions Approx.230x402x195mm(w/h/d)
Weigh! Approx.3.8 kg (Made in Germany)
3.5 kg (Made in UK)
Design and specifications subject to change
without notice.
MODEL IDENTIFICATION
-s 'f' t' Lbel-
mom" a s 2. WIRING DIAGRAM
SONY.
SS-AZOS
WWW
Made in UK
Made in Germany
1. FRONT PANEL REMOVAL
INPUT
broad-flat
screwdriver
bottom
2/ \/
\ /
cabinet
Iront /
panel
SPEAKER SYSTEM
S 0 NE
Note: Be careful not to scratch the cabinet
