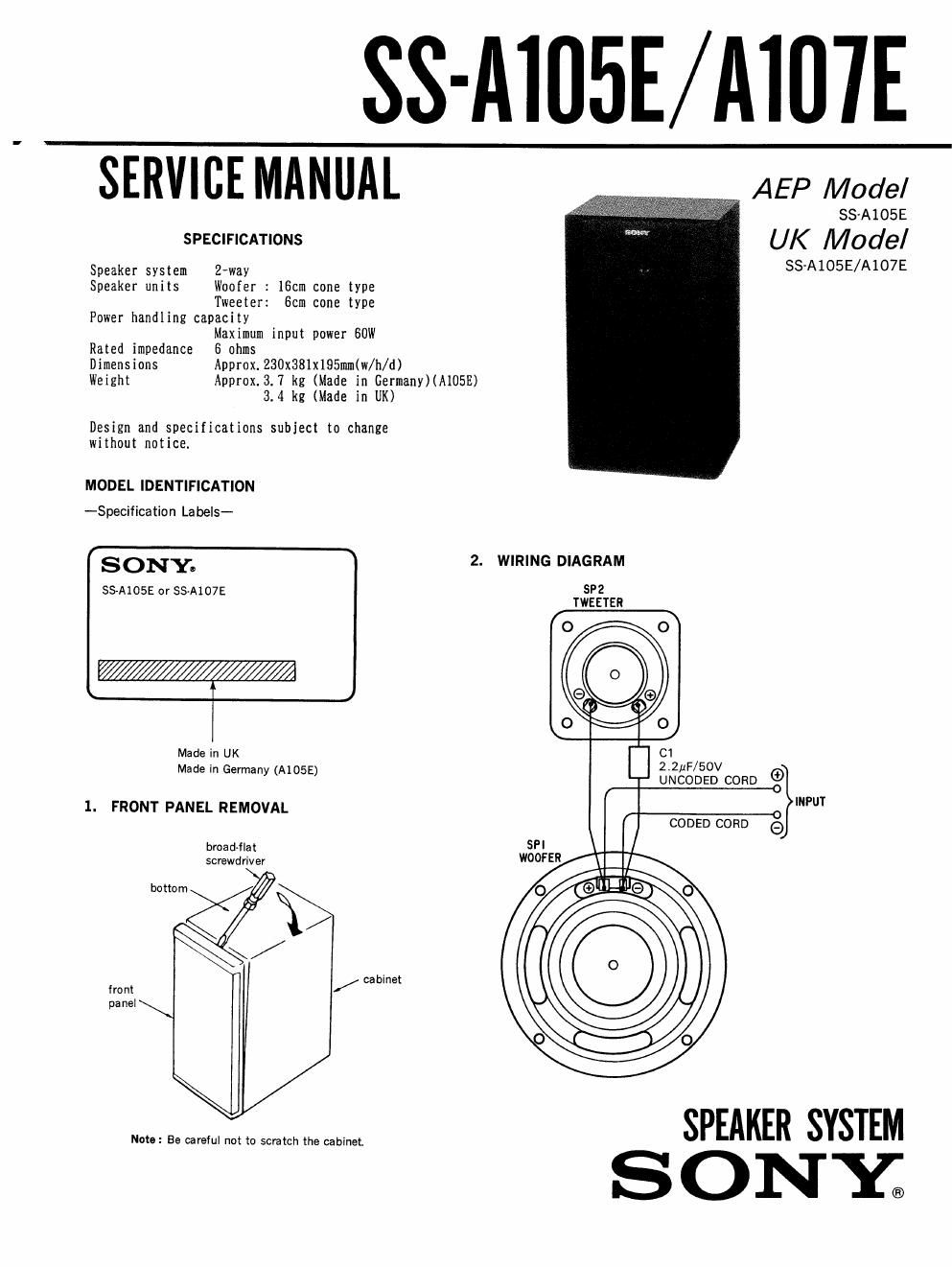

Page 1

SS-AIU5E/IIIII'IE

SERVICE MANUAL

SPECIFICATIONS

Speaker system 2-way
Speaker units Woofer : 160m cone type
TweeIer: 6cm cone type
Power handling capacity
Maximum input power 60W
Rated impedance 6 ohms
Dimensions Approx.230x381x195mm(w/h/d)
Weight Approx.3.7 kg (Made in Germany)(A105E)
3.4 kg (Made in UK)

Design and specifications subject to change
without notice.

MODEL IDENTIFICATION
-Specification Labels-

SONYO 2'

SSAIOSE or SS-A107E

WWW

Made in UK
Made in Germany (A105E)

1. FRONT PANEL REMOVAL

broadflat
screwdriver

bottomg/ \/
\/

f t / cabinet
ron
panel

More: Be careful not to scratch the cabinet,

AEP Model

SS-A105E

UK Model

SS-A105E/A107E

WIRING DIAGRAM

SP2
TWEETER

2.2uF/50V
UNCODED CORD Q
__-._.___....0

INPUT

-0
CODED CORD (.3

SPEAKER SYSTEM
S 0 NY;

Page 2

SS-A105E 107E

3. EXPLODED VIEW AND PARTS LIST

Note :

0 The mechanical parts with no reference
number in the exploded views are not
supplied.

MADE IN GERMANY (A105E)

F. _________ 1

L___.___.___.

I
l
l
l
|
I

901

(including Cl)

MADE IN UK
1- - 1
I I
I l
I l
I 7_ _ |
901 -' I
I l
n. _________ J
RetNo Part No, Descrigtion Rsmark Ref.No Part No. Description Remark
1 T-8150'389-A PANEL ASSY, FRONT ELECTRICAL PARTS
(MADE IN UK)
T>8150-401-A PANEL ASSV, FRONT 901 T-8110-520-1 CORD, SPEAKER
(MADE IN GERMANY) (AlUSE) (MADE IN UK)
2 T-8151-306-1 SPEAKER BOX T-8150-406-A WIRE KIT ASSY
(MADE IN UK) (MADE IN GERMANY) (AlDSE)
T-8151-305-1 SPEAKER BOX Cl T-8110-253-1 CAP 2.2uF 50V
(MADE IN GERMANY) (MUSE) SP1 T-8110-420-1 WOOFER
3 T-8150-573-1 TAPPING SCREW +P 4X15 SP2 1-544-046-11 TWEETER (A105E)

SP2 T-8110-560-1 TWEETER (A107E)
ACCESSORY & PACKING MATERIAL

T-8151-346-1 MANUAL INSTRUCTION
(MADE IN UK) (A105E)

T-815l-368-1 MANUAL, INSTRUCTION
(MADE IN GERMANY) (A105E)

T-8151-743-1 MANUAL INSTRUCTION
(A107E)

Endluh
. 52E0460-1
Sony Corporatlon Printed in Japan
