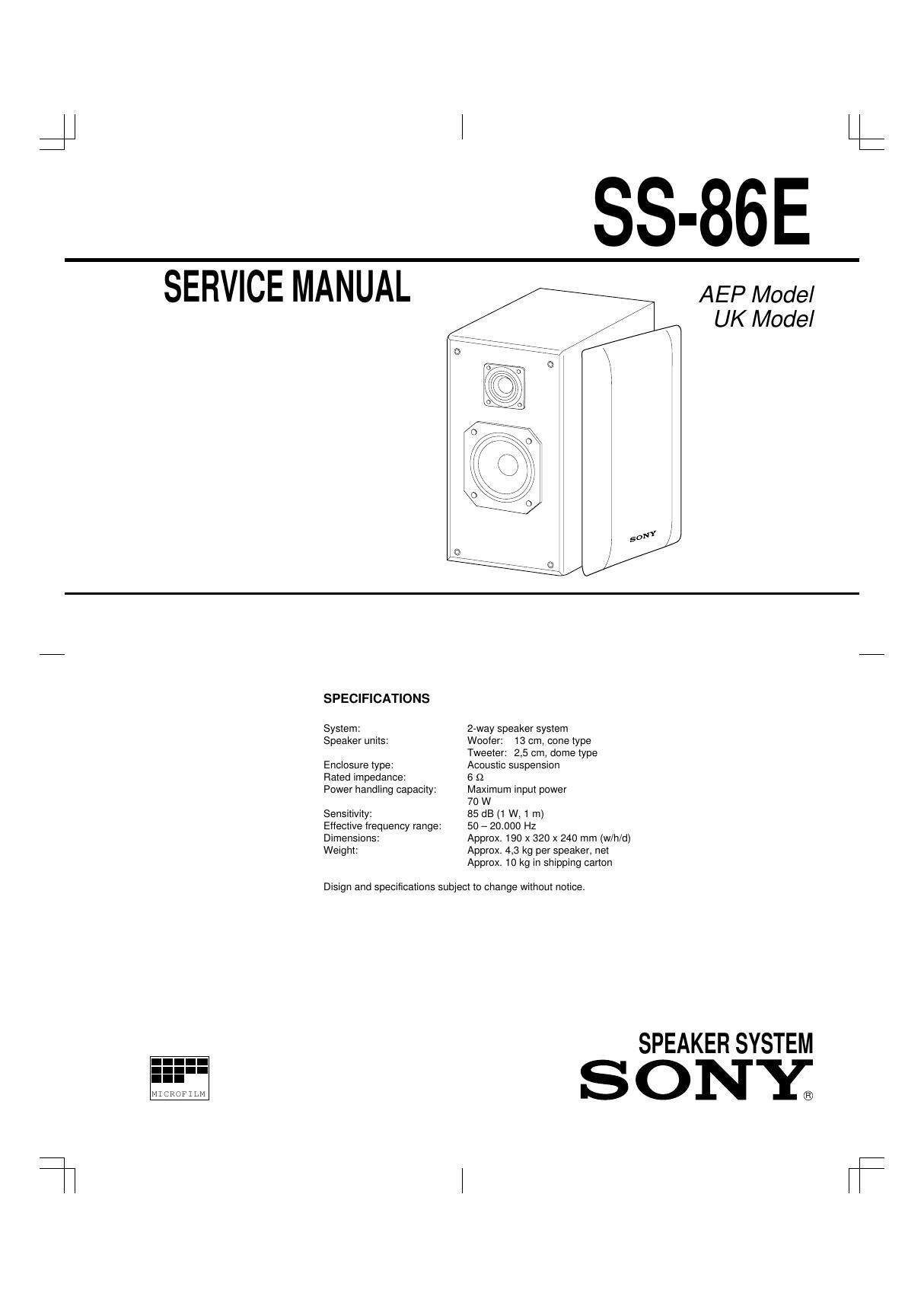

Sony ss 86 e service manual

Page 1

- 2 - SS-86E 9-959-773-11 TERMINAL BOARD PRINTED CIRCUIT BOARD INPUT NETWORK ASSY BLU/WHTWHT RED BLKWHT BLU/ WHT SP1 WOOFER SP2 TWEETER Ref. No. Part No. Description Remark 1 X-4945-448-1 GRILLE FRAME ASSY 2 X-4945-447-1 SPEAKER CABINET ASSY 3 1-589-679-11 MOUNTED P.C.B. 4 4-960-362-01 SCREW +P 4,0 X 19 5 4-960-375-01 SCREW 4,0 X 20 SP1 1-504-710-11 SPEAKER (13 cm CONE) SP2 1-504-708-11 SPEAKER (2,5 cm DOME) Ref. No. Part No. Description Remark * 4-971-068-01 CARTON * 4-971-069-01 CUSHION * 4-971-070-01 POLYETHYLENE BAG 3-759-789-11 INSTRUCTION MANUAL NOTE: -The mechanical parts with no reference number in the exploded views are not supplied -Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 2. EXPLODED VIEW AND PARTS LIST 1. WIRING DIAGRAM Sony Corporation Consumer A&V Products Company Home A&V Division English 94H7558-1 Printed in Germany © 1994.8 Published by Home A&V Div. Quality Engineering Dept.
