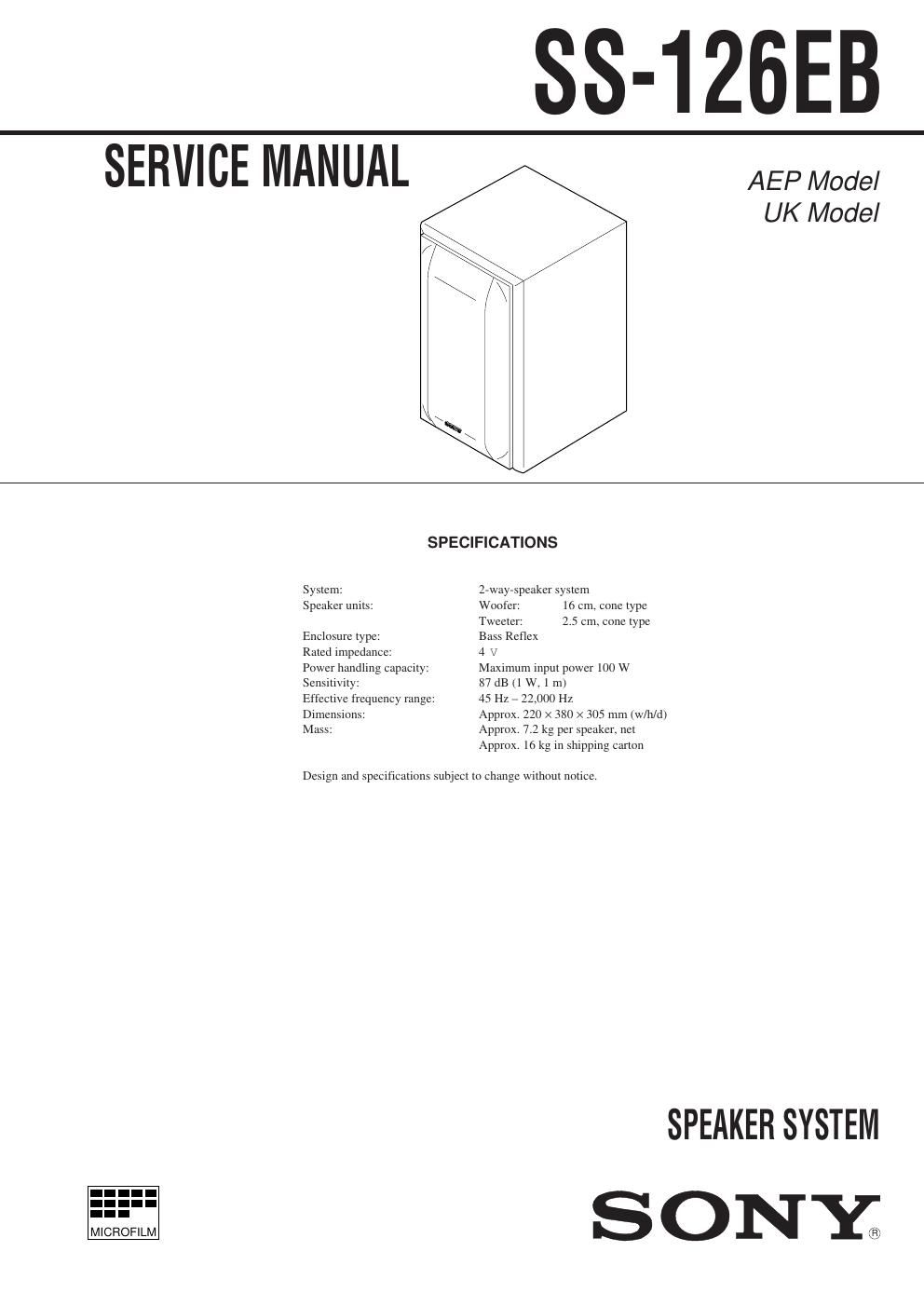

sony ss 126 eb service manual

Extracted text from sony ss 126 eb service manual (Ocr-read)

Page 1

SS-126EB Ñ 2 Ñ Sony Corporation Home A&V Products Company 97L7548-1 Printed in Germany © 1997. 12 Published by General Engineering Dept. (Shibaura) 9-922-749-11 1. EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-861-086-01 INSTRUCTION MANUAL (ENGLISH,FRENCH,SPANISH,PORTUGUESE ,GERMAN,DUTCH,ITALIAN,SWEDISH,DANISH ,FINNISH,RUSSIAN,POLISH,CZECH ,HUNGARIAN) 1 X-4947-682-1 GRILL FRAME ASSY 2 X-4949-415-1 SPEAKER CABINET ASSY 3 4-986-038-01 SCREW 4.0 X 20 4 1-694-203-11 TERMINAL BOARD 5 1-761-036-11 PRINTED CIRCUIT BOARD (TW) 6 1-761-037-11 PRINTED CIRCUIT BOARD (WO) 7 4-986-039-01 SCREW 4.0 X 19 8 4-995-655-01 COSMETIC PLATE 9 4-977-581-01 ACOUSTIC ABSORBENT 10 4-997-031-01 LID (RED) 11 4-997-032-01 LID (BLACK) SP1 1-505-818-11 SPEAKER (16CM) SP2 1-505-819-11 SPEAKER (2.5CM) 1 33 338 29 6 7 5 7 710 10 11 11 4 SP2 SP1
