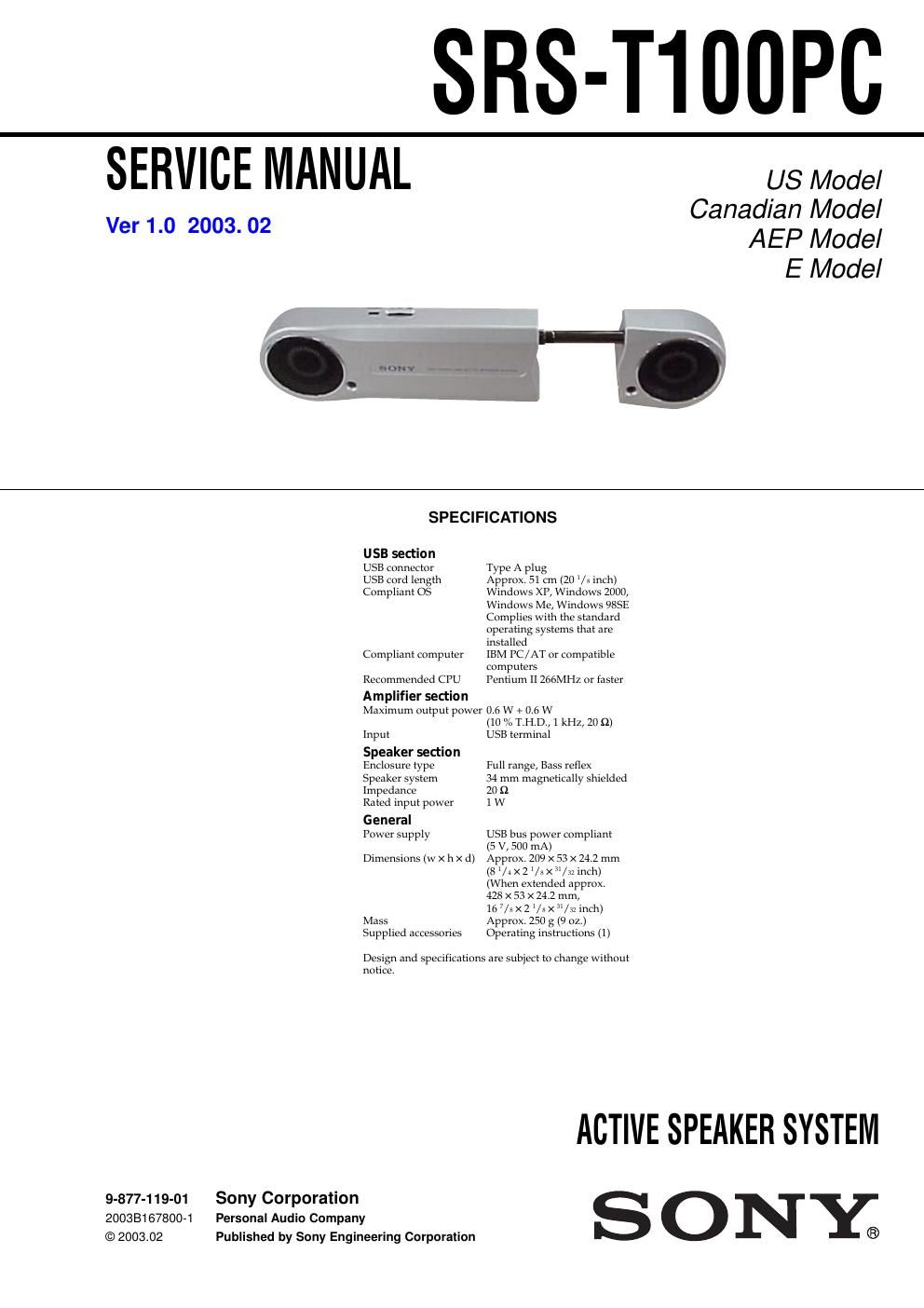

Sony srs t 100 pc service manual
This is the 12 pages manual for sony srs t 100 pc service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony srs t 100 pc service manual (Ocr-read)
Page 1
2 SRS-T100PC TABLE OF CONTENTS Notes on chip component replacement -N ever reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. 1. GENERAL ··················\ ··················\ ··················\ ··················\ ·· 3 2. DIAGRAMS 2-1. Printed Wiring Board ··················\ ··················\ ··················\ 5 2-2. Schematic Diagram ··················\ ··················\ ··················\ ··· 6 2-3. IC Block Diagrams ··················\ ··················\ ··················\ ··· 7 3. EXPLODED VIEWS 3-1. Left Speaker Section ··················\ ··················\ ··················\ · 9 4. ELECTRICAL PARTS LIST ··················\ ··················\ ··· 10
Page 2
3 SRS-T100PC SECTION 1 GENERAL This section is extracted from instruction manual. stand Left speaker Right speaker Power indicator VOLUME To increase the volume, rotate in the direction of the arrow; to decrease the volume, rotate in the opposite direction.Type A plug To the USB type A jack of a computer Image
