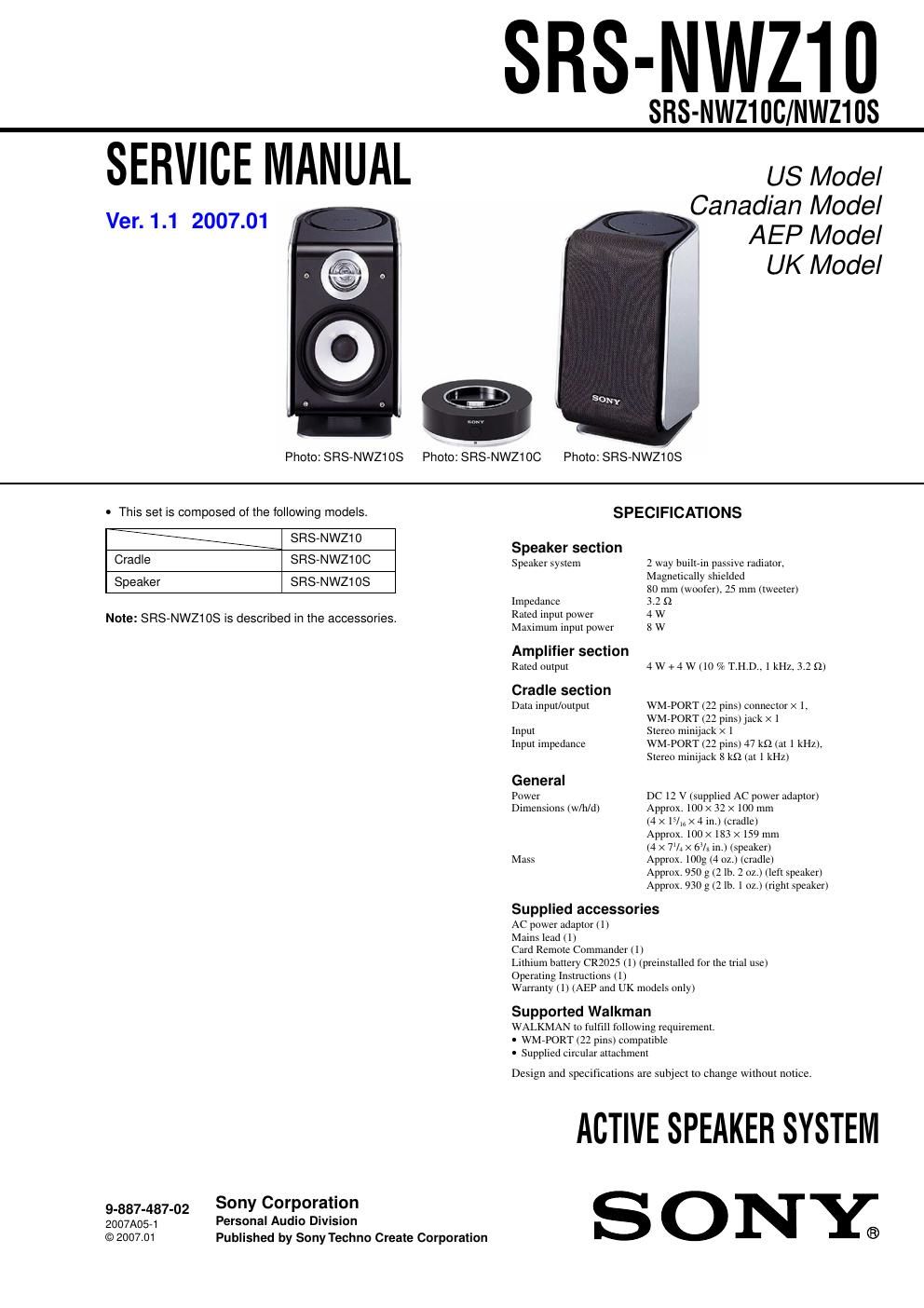

Sony srs nwz 10 service manual
This is the 20 pages manual for sony srs nwz 10 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony srs nwz 10 service manual (Ocr-read)
Page 2
3 SRS-NWZ10 SECTION 1 GENERAL This section is extracted from instruction manual. B A MUTINGVOL VOL MUTINGVOL VOL Front Avant Rear Arrière Identifying parts Cradle (See fig. A) 1 WM-PORT connector (for connecting to Walkman) 2 I/1 (power/standby) indicator 3 I/1 (power/standby) button 4 MUTING indicator 5 Remote sensor 6 VOL (volume) +/ − buttons 7 INPUT (audio input) jack 8 WM-PORT jack (for connecting to a PC) 9 L OUT jack Card remote commander (See fig. B) 1 (folder) +/ − buttons 2 .> (go to the beginning of the previous or next track) buttons 3 N X (play/pause) button 4 m M (rewind/fast-forward) buttons 5 x (stop) button 6 I/1 (power/standby) button 7 MUTING (muting) button 8 VOL (volume) +/ − buttons (folder) +/ − buttons find the beginning of the first track of each group in the order selected on the Walkman. Note Some operations of the card remote commander may not work, or work differently as indicated, depending on the specification of the Walkman you are using. WM-PORT
